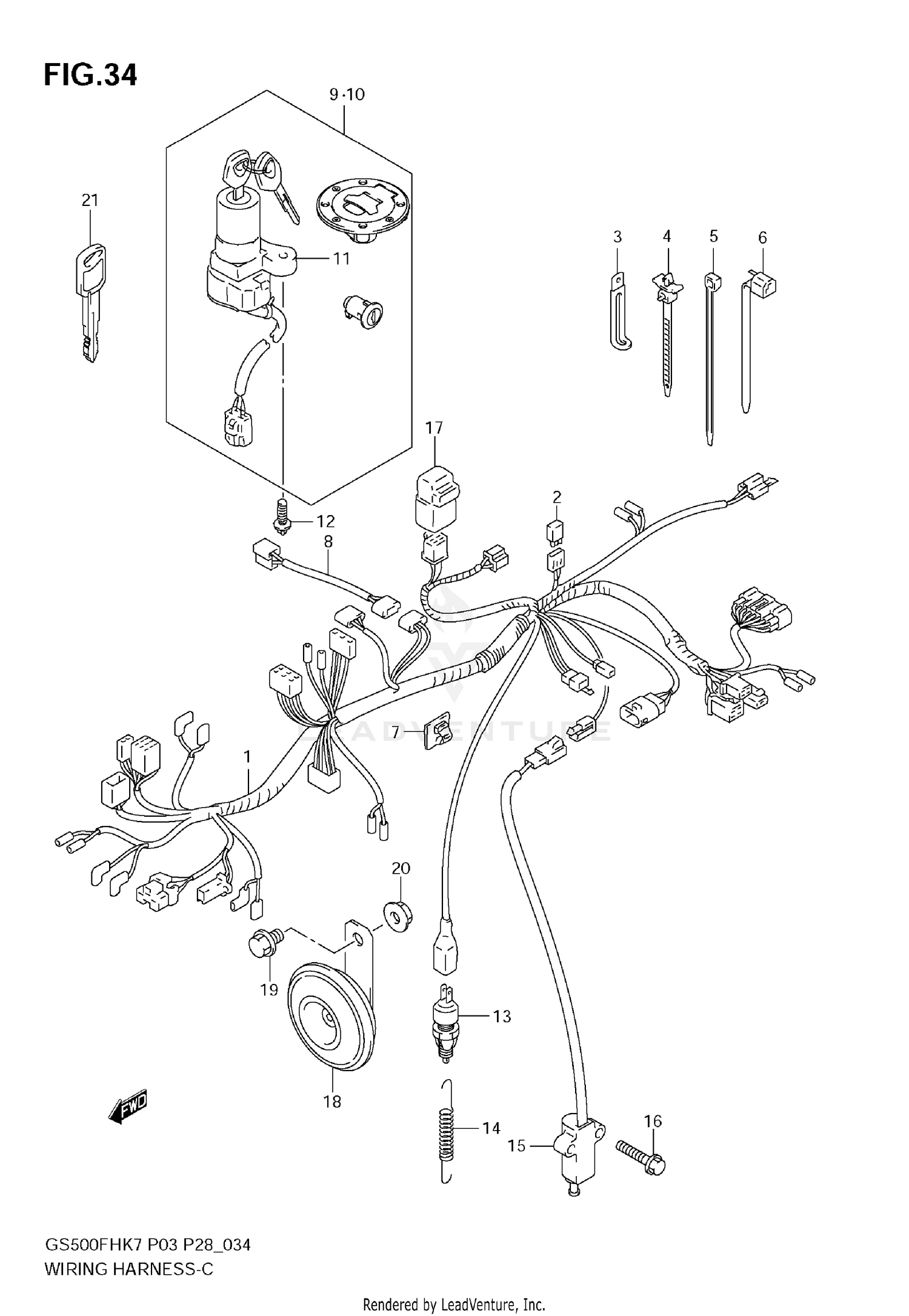

Wiring Harness (gs500f E3, E28, E33, E95) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING
36610C0BEN0J000
|
$263.73 | ||
|
Unavailable |
|||
|
#2
DIODE
36611-02E01
|
$15.61 | ||
|
Unavailable |
|||
|
#3
CLAMP (L:65)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#3
CLAMP
09404-06431
Superseded by 09404-06039
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP
09407-07E00
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP
D9436-01425
|
$0.50 | ||
|
Unavailable |
|||
|
#5
NO DESCRIPTION AVAILABLE
D9448-01885
Superseded by D9448-02875
|
$0.97 | ||
|
Unavailable |
|||
|
#6
CLAMP (L:235)
09407-25401
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
09403-06310
|
$1.85 | ||
|
Unavailable |
|||
|
#8
WIRE, AIR SOLENOID
36852-01D40
|
$8.67 | ||
|
Unavailable |
|||
|
#9
LOCK SET
37000-01870
Superseded by 37000-01871
|
$545.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
LOCK SET
37000-01880
|
$350.19 | ||
|
Unavailable |
|||
|
#11
LOCK ASSY, STEERING
37100-01D40
|
$228.23 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
09139-06026
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
SWITCH ASSY, STOP LAMP
37740-24A00
|
$23.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING
09443-06042
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
SWITCH ASSY,SID
37840-26D00
Superseded by 37840-26X52
|
$98.19 | ||
|
Unavailable |
|||
|
#16
BOLT
D1557-0630B
Superseded by 01550-0630B
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#17
RELAY ASSY, SIDE STAND
38740-24B00
Superseded by 38740-24X50
|
$58.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
HORN ASSY
38500-0BE00
|
$46.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
D1557-0812B
|
|||
|
Unavailable |
|||
|
#20
NUT
D8316-1008B
|
|||
|
Unavailable |
|||
|
#21
KEY, BLANK
37146-33E00
|
$27.38 | ||
|
Available to order. Add to View Price |
|||
