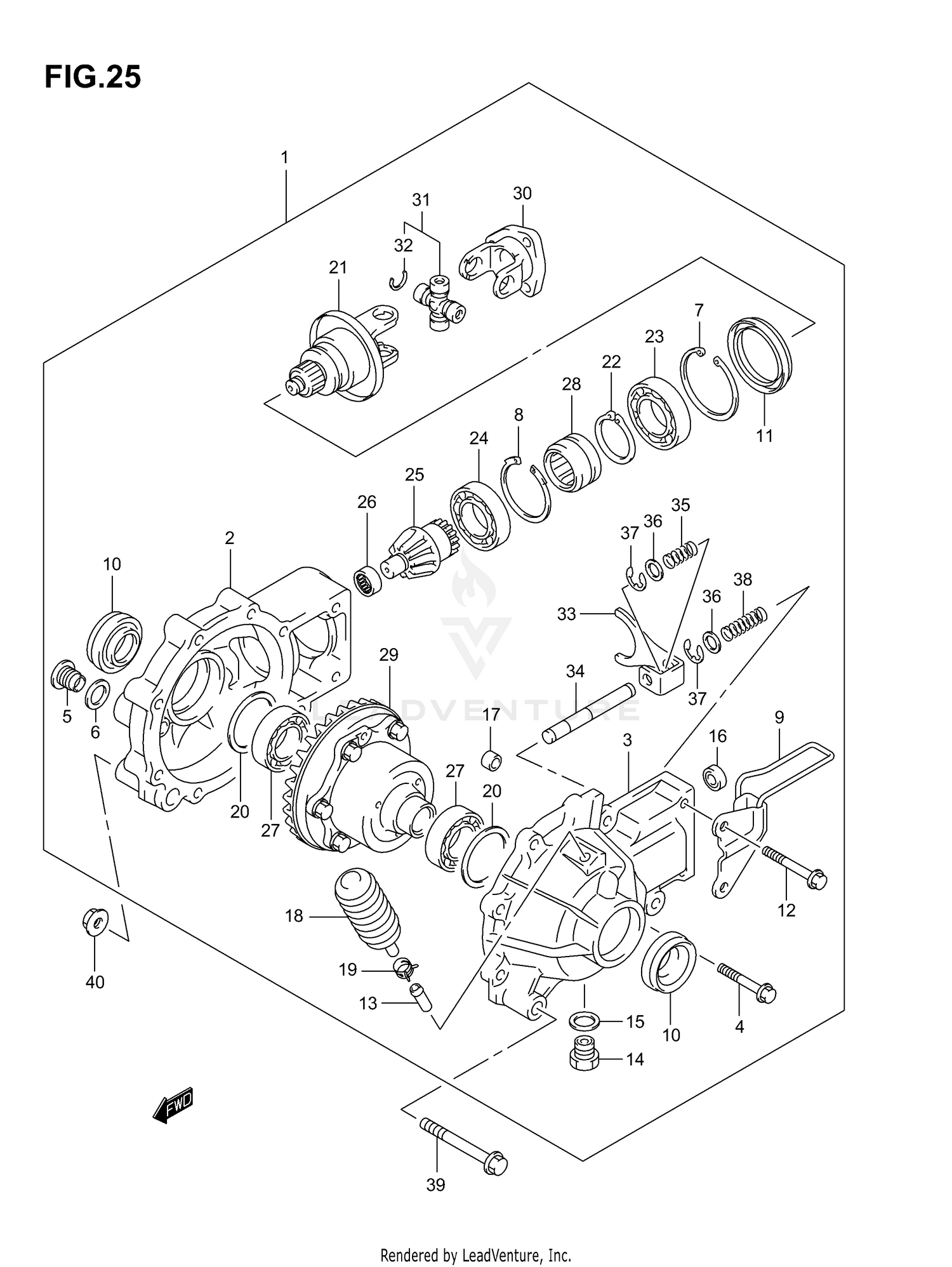

Final Bevel Gear (front)(model K3/k4,%f.no.5saak46a3x102000) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE ASSY, FR DIFFERENTIAL
27400-38F10
|
$1,330.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOUSING, FINAL DRIVE FR
27451-38FA0
|
$86.60 | ||
|
Unavailable |
|||
|
#3
COVER, FINAL DRIVE FR
27461-38FA0
Superseded by 27461-38FA1
|
$155.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (8X25)
27401-38FA0
Superseded by 27401-38FA1
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG
27409-38FA0
|
$3.68 | ||
|
Available to order. Add to View Price |
|||
|
#6
.WASHER
27407-38FA0
Superseded by 27407-31GA0
|
$11.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING SNAP
27403-38FA0
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING SNAP
27403-38FB0
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET ASSY, SHIFT
27951-38FA0
|
$18.32 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
27406-38FA0
|
$19.83 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SEAL,OIL
27406-38FB0
|
$12.12 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (8X50)
27401-38FB0
|
$3.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, BRTHR
09364-08003
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG
27409-38FB0
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
27407-38FB0
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL
27406-38FC0
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
27404-38FA0
|
$6.37 | ||
|
Unavailable |
|||
|
#18
CASE,BREATHER
27491-38F00
Superseded by 27491-38F10
|
$22.86 | ||
|
Unavailable |
|||
|
#19
CLIP
09401-08411
|
$2.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SHIM SET
27445-38FA0
|
$122.33 | ||
|
Available to order. Add to View Price |
|||
|
#21
YOKE ASSY
27130-38FA0
Superseded by 27130-03GA0
|
$121.19 | ||
|
Available to order. Add to View Price |
|||
|
#22
.RING,SNAP
27403-38FC0
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING
27405-38FA0
|
$36.81 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
27405-38FB0
|
$38.72 | ||
|
Available to order. Add to View Price |
|||
|
#25
PINION, DRIVE
27311-38FA0
|
$195.30 | ||
|
Unavailable |
|||
|
#26
BEARING
27405-38FC0
|
$10.84 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING
27405-38FD0
|
$20.17 | ||
|
Available to order. Add to View Price |
|||
|
#28
SLEEVE
27371-38FA0
Superseded by 27371-31GA0
|
$82.47 | ||
|
Available to order. Add to View Price |
|||
|
#29
GEAR ASSY
27320-38FA0
|
$346.61 | ||
|
Unavailable |
|||
|
#30
YOKE, PROP SHAFT JOINT RR
27161-38F20
Superseded by 27161-38F11
|
$179.43 | ||
|
Available to order. Add to View Price |
|||
|
#31
JOINT SET,UNIVERSAL
27200-19810
Superseded by 27200-19811
|
$73.55 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP
09380-20016
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#33
FORK, SHIFT
27941-38FA0
|
$16.32 | ||
|
Available to order. Add to View Price |
|||
|
#34
ROD, SHIFT
27921-38FA0
|
$15.08 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPRING, SHIFT
27402-38FA0
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER
27407-38FC0
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#37
E RING
27403-38FD0
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING, RETURN
27402-38FB0
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FR DIFFERENTIAL
09103-10148
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, FR DIFFERENTIAL
08319-31107
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
