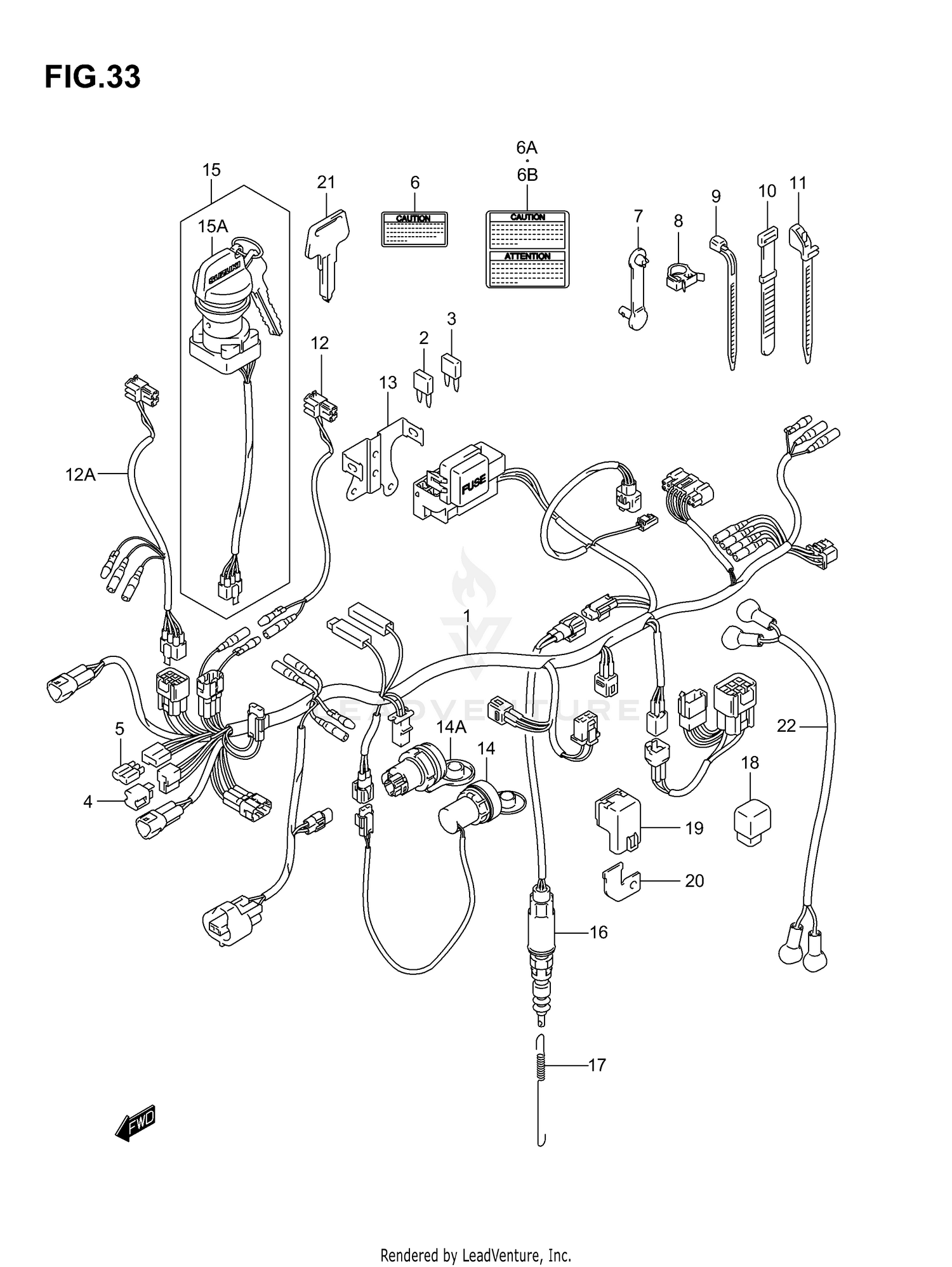

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS WIRING
36610-38F00
|
$569.08 | ||
|
Available to order. Add to View Price |
|||
|
#1
HARNESS WIRING
36610-38F50
Superseded by 36610-38F51
|
$316.86 | ||
|
Available to order. Add to View Price |
|||
|
#1
HARNESS WIRING
36610-38FA1
|
$325.52 | ||
|
Available to order. Add to View Price |
|||
|
#2
.FUSE (5A)
09481-05501
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (10A)
09481-10501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (10A)
09481-10501
|
$2.59 | ||
|
Unavailable |
|||
|
#4
RECTIFIER ASSY
32800-16A00
|
$29.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
.DIODE
36611-38A00
Superseded by 36611-38A10
|
$17.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
LABEL, CAUTION MAX AMP
38852-09F21
|
$8.52 | ||
|
Available to order. Add to View Price |
|||
|
#6
LABEL, CAUTION MAX AMP
38852-09F30
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#6A
LABEL, CAUTION MAX AMP
38852-03G00
|
$6.95 | ||
|
Unavailable |
|||
|
#6B
LABEL, CAUTION MAX AMP
38852-03G10
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, WIRING HARNESS
36651-48E00
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP (D:20)
09403-20403
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP (D:25)
09403-25401
|
$2.48 | ||
|
Unavailable |
|||
|
#9
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
09407-12402
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
09407-12407
|
|||
|
Unavailable |
|||
|
#12
WIRE,BRAKE SW L
36856-35B00
Superseded by 36856-35B01
|
$9.72 | ||
|
Unavailable |
|||
|
#12A
WIRE, FRONT BRAKE SW
36855-38F10
|
$46.43 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET,FUSE BOX
36744-38F00
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
TERMINAL, POWER SOURCE
38850-09F00
|
$38.95 | ||
|
Unavailable |
|||
|
#14A
TERMINAL, POWER SOURCE
38850-03G00
|
$84.74 | ||
|
Available to order. Add to View Price |
|||
|
#15
SWITCH ASSY,IGNITION
37110-38F00
Superseded by 37110-38F01
|
$105.61 | ||
|
Available to order. Add to View Price |
|||
|
#15A
.MASCOT,KEY
37142-19B00
Superseded by 37142-19B01
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#16
SWITCH ASSY,STOP LAMP
37740-38F01
|
$129.48 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, STOP LAMP
09443-06016
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
RELAY,NEUTRAL START
38730-09F00
|
$60.10 | ||
|
Available to order. Add to View Price |
|||
|
#19
RELAY ASSY,FUEL PUMP
38740-26E00
Superseded by 38740-26E01
|
$51.23 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, GEAR IN START
38741-09F00
|
$3.67 | ||
|
Unavailable |
|||
|
#21
KEY,BLANK (TYPE:C)
37146-19B00
|
$10.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
KEY,BLANK (TYPE:D)
37146-19B10
|
$10.41 | ||
|
Available to order. Add to View Price |
|||
|
#21
KEY,BLANK (TYPE:E)
37146-19B20
|
$10.41 | ||
|
Available to order. Add to View Price |
|||
|
#21
KEY,BLANK (TYPE:F)
37146-19B30
|
$10.41 | ||
|
Available to order. Add to View Price |
|||
|
#22
WIRE, WINCH
33870-38F00
|
$60.77 | ||
|
Unavailable |
|||
