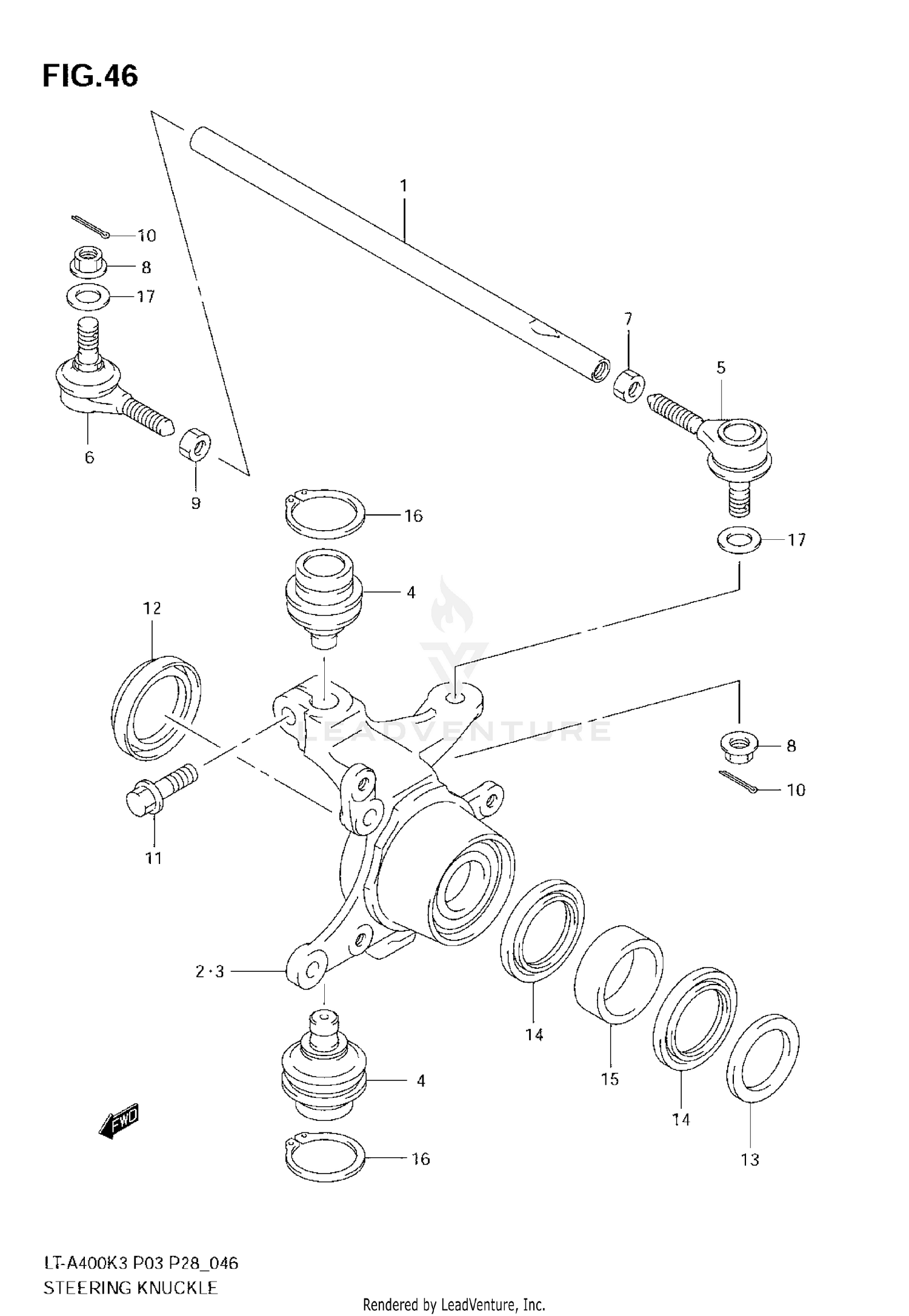

Steering Knuckle Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TIE ROD, STEERING
51281-38F00
|
$36.14 | ||
|
Available to order. Add to View Price |
|||
|
#2
KNUCKLE, STEERING RH
51231-03G10
|
$119.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
KNUCKLE, STEERING RH
51231-38F50
|
$134.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
KNUCKLE, STEERING LH
51241-03G10
|
$92.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
KNUCKLE, STEERING LH
51241-38F50
|
$95.36 | ||
|
Unavailable |
|||
|
#4
END,KNUCKLE STEERING
51210-38F00
|
$87.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, END RH
51260-38F10
|
$91.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
END,ROD,R
51260-21G00
|
$88.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD, END LH
51270-38F10
|
$91.68 | ||
|
Available to order. Add to View Price |
|||
|
#6
END,ROD,L
51270-21G00
|
$88.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT (10X6)
09140-10043
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, TIE-ROD RH
51283-21G00
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, REAR SWGARM BRACKET
09159-10058
Superseded by 09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
08314-40103
Superseded by 08314-4010B
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
09140-10027
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
04111-20208
Superseded by 04111-2020A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, KNUCKLE (10X30)
51233-09F00
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUST SEAL, INNER (38X55X8)
09283-38012
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
DUST SEAL, OUTER (38X55X7.5)
09283-38022
|
$16.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
08123-60067
|
$36.54 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER,HUB BEARING
54731-03G00
|
$15.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
08331-31306
Superseded by 08331-31309
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, ROD END
09181-11001
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER,LOCK
09162-10010
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
