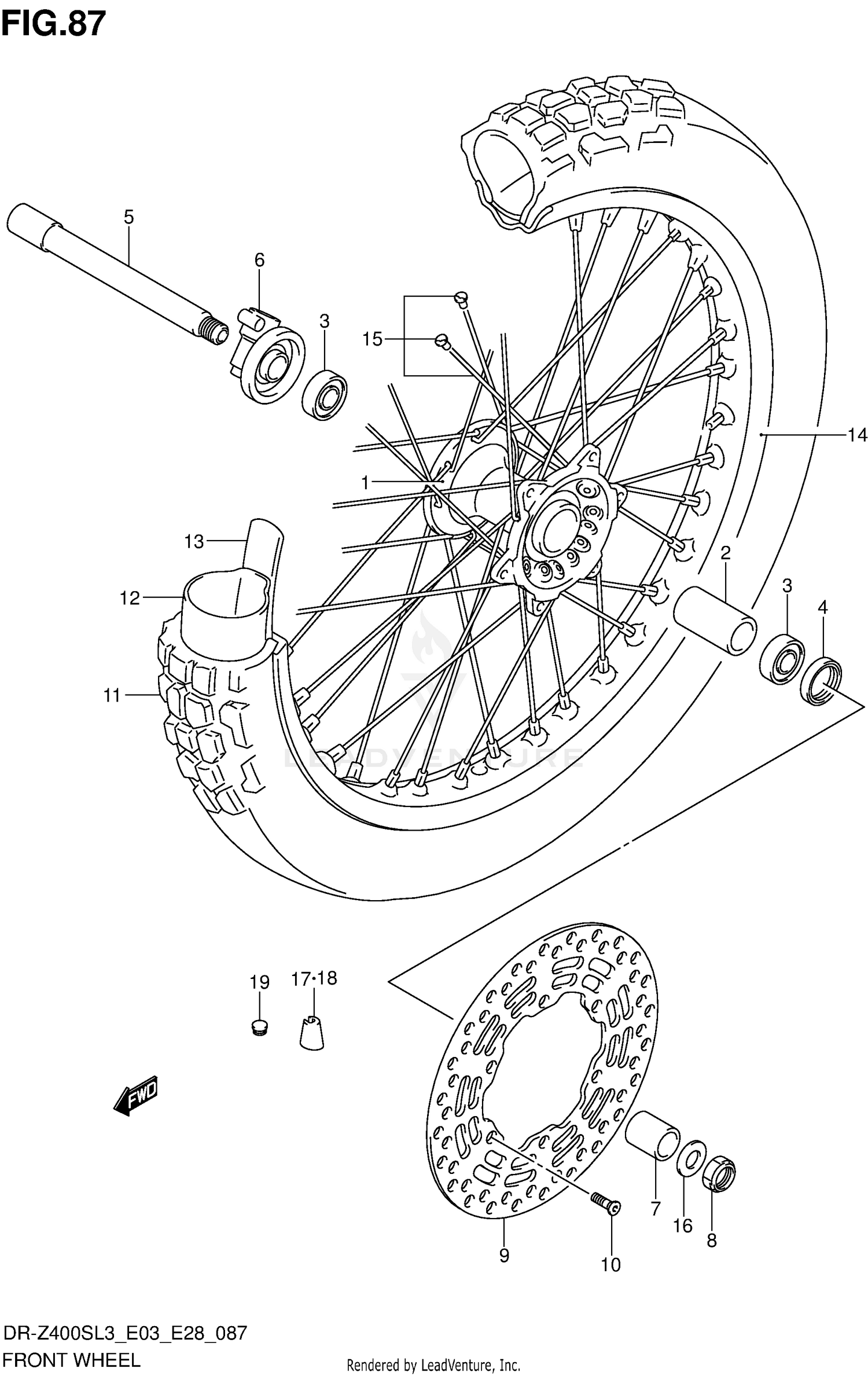

Front Wheel (dr-z400sl3 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB,FRONT WHEEL
54111-29F10
|
$341.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER,FRONT HUB BEARING (20.
54731-36E10
|
$27.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
08130-69047
Superseded by 08130-6904B
|
$45.43 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL (25X37X6)
09283-25083
|
$10.34 | ||
|
Available to order. Add to View Price |
|||
|
#5
AXLE,FRONT
54711-29F10
|
$113.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOX ASSY SPEEDOMETER GEAR
54600-29F00
Superseded by 54600-29F01
|
$96.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER,FRONT AXLE LH(L:31)
54751-36E10
|
$22.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
09159-18018
|
$20.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
DISC,FRONT BRAKE LH
59221-13E00
|
$312.97 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW (6X18)
09120-06014
|
$2.94 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIRE FR
55110-29F10
Superseded by 55110-29F11
|
$244.23 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE ASSY, WHEEL INNER
55200-32E01
|
$63.46 | ||
|
Available to order. Add to View Price |
|||
|
#13
PROTECTOR,WHEEL INNER TUBE
55261-32E01
|
$7.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
RIM, FRONT WHEEL (1.60X21)
55311-29F00
|
$450.56 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPOKE SET,FRONT WHEEL
55320-29F00
|
$100.13 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER (18X26X2.8)
09160-18034
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#17
BALANCER, WHEEL NO.1
55412-41F00
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALANCER,WHEEL (30G)
55413-41F00
|
$9.52 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP
09250-08013
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
