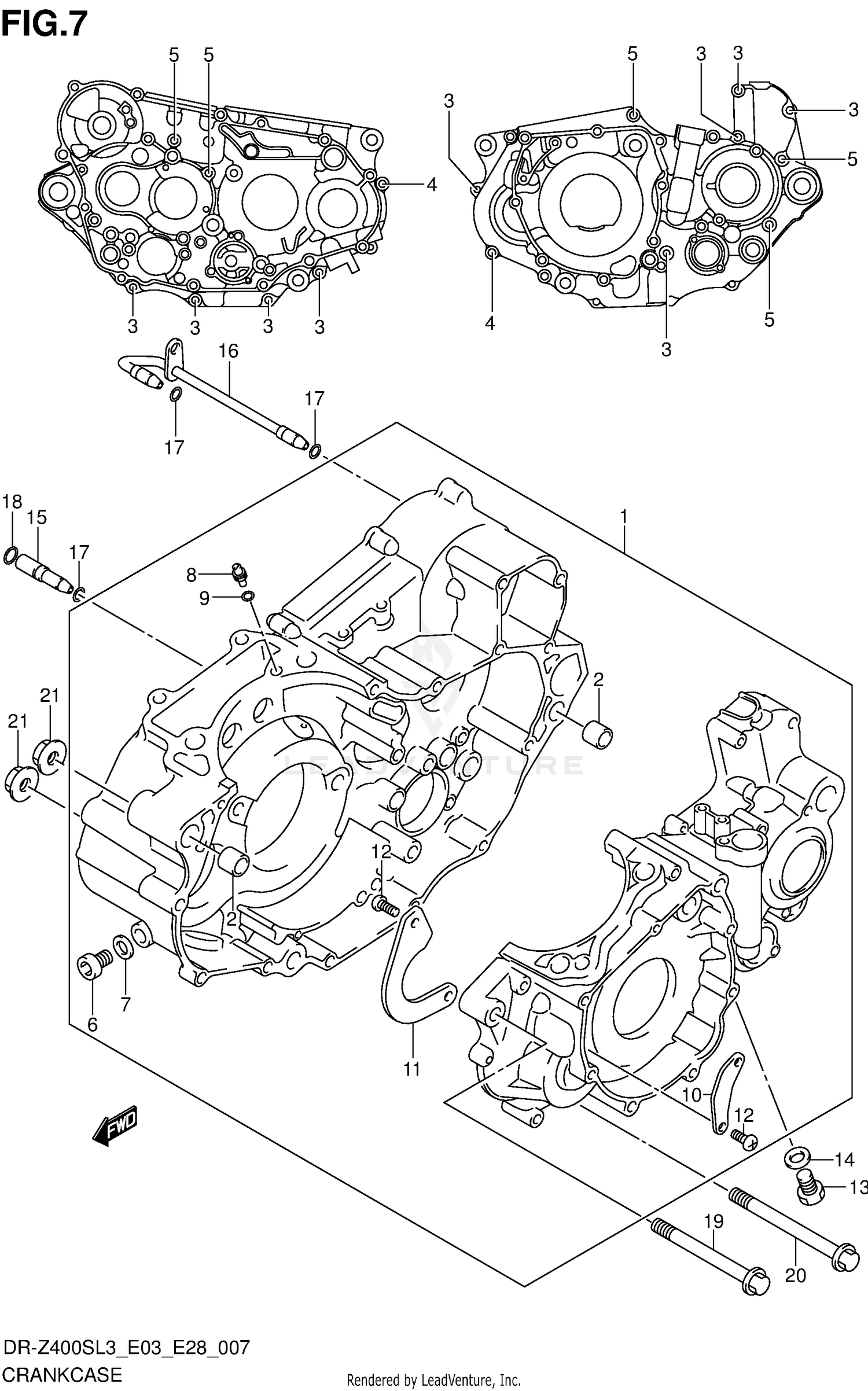

Crankcase (dr-z400sl3 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11301-29853
Superseded by 11301-29854
|
$772.48 | ||
|
Unavailable |
|||
|
#2
PIN
04211-13189
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BOLT
01547-0640A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01547-0655A
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01547-0670A
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG
09248-10010
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET (10X14X3.6)
09168-10002
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
JET (#80)
09493-80005
|
$17.07 | ||
|
Available to order. Add to View Price |
|||
|
#9
O RING (D:1.2,ID:4)
09280-04004
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEPARATOR,CRANKCASE OIL NO.1
11323-29F00
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEPARATOR,CRANKCASE OIL NO.2
11324-29F00
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW (6X12)
09125-06122
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG (12X20)
09247-12011
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET (12.1X16.2X3.7)
09168-12002
|
$1.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PIPE,OIL INNER NO.1
11451-29F00
|
$20.98 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE,T/M OIL INNER NO.2
11460-29F00
|
$85.12 | ||
|
Available to order. Add to View Price |
|||
|
#17
O RING (D:1.9,ID:4.8)
09280-05004
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
O RING (D:1.9,ID:6.8)
09280-07004
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (10X100)
09103-10110
|
$8.86 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT (10X115)
09103-10063
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
09159-10115
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
