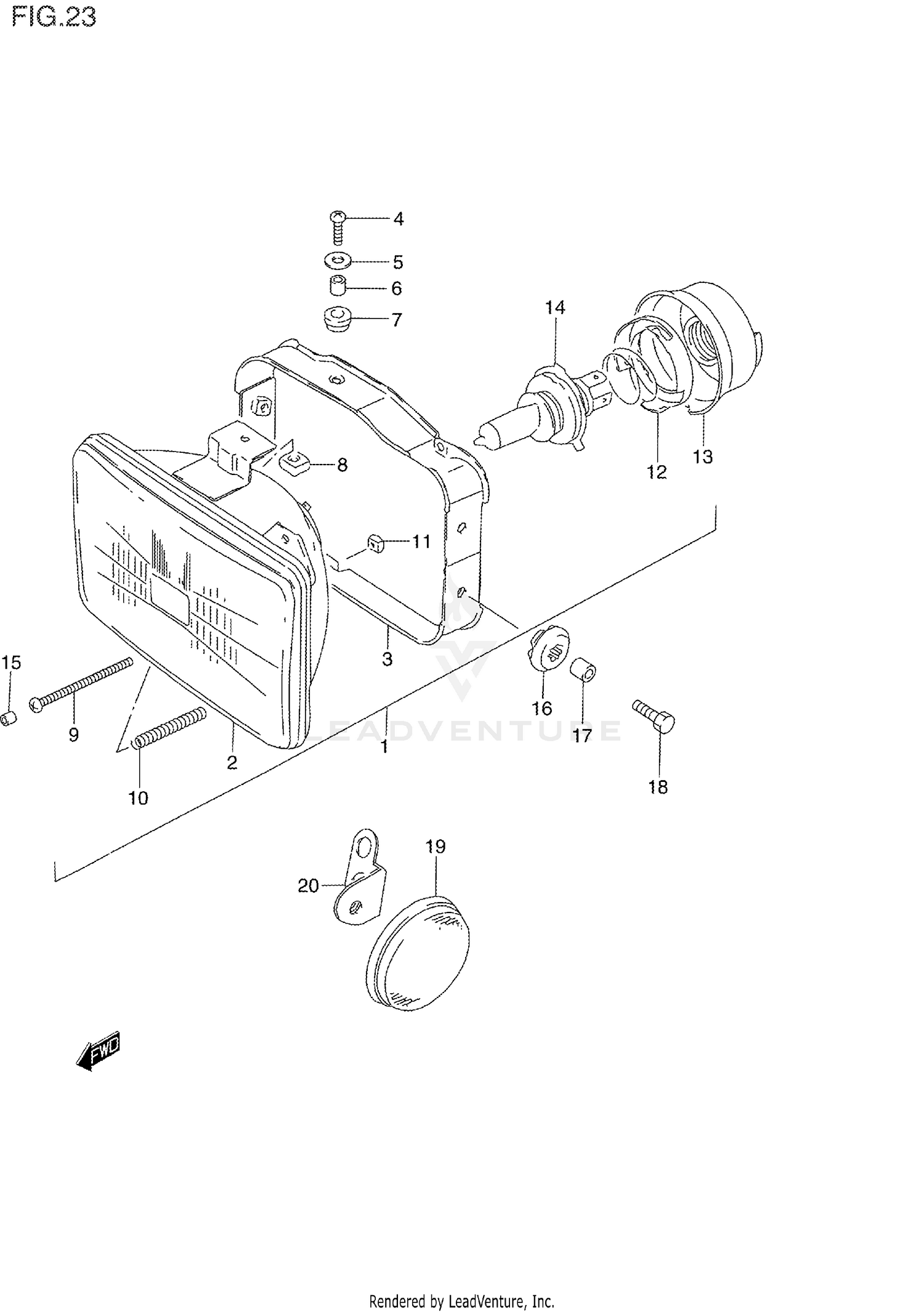

Headlamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-14A30-999
Superseded by 35100-14A33-999
|
$237.26 | ||
|
Available to order. Add to View Price |
|||
|
#1
HEADLAMP ASSY
35100-14A31-999
Superseded by 35100-14A33-999
|
$237.26 | ||
|
Unavailable |
|||
|
#2
LAMP UNIT
35121-14A30
Superseded by 35121-14A31
|
$72.37 | ||
|
Available to order. Add to View Price |
|||
|
#2
LAMP UNIT
35121-14A31
|
$72.37 | ||
|
Unavailable |
|||
|
#3
RING, MOUNTING
35141-14A00
|
$42.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
02112-05208
Superseded by 02112-05207
|
$2.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SCREW
02112-05207
|
$2.46 | ||
|
Unavailable |
|||
|
#5
.WASHER (5.5X18X1)
35138-45230
Superseded by 09160-05045
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#5
.WASHER (5.5X18X1)
09160-05003
Superseded by 09160-05045
|
$2.43 | ||
|
Unavailable |
|||
|
#6
SPACER
35133-14A00
|
$2.88 | ||
|
Unavailable |
|||
|
#7
CUSHION
35139-45230
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
35135-45900
|
$3.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SCREW
35151-49200
Superseded by 35151-45900
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, ADJUSTING
35151-45900
|
$4.85 | ||
|
Unavailable |
|||
|
#10
SPRING
35154-49200
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
35135-45600
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, BULB
35136-01A00
|
$6.26 | ||
|
Unavailable |
|||
|
#13
.COVER,SOCKET
35173-01440
|
$19.61 | ||
|
Available to order. Add to View Price |
|||
|
#14
BULB (12V60/55W,H4)
09471-12060
|
$31.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CAP, ADJUSTER SCREW
35158-43400
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION
09320-09018
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER
09180-06138
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (6X20)
09116-06011
Superseded by 09116-06115
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
09116-06167
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#19
REFLECTOR, FRONT SIDE
35950-14A00
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, REFLECTOR RH
35956-14D00
Superseded by 35956-14D01
|
$3.39 | ||
|
Unavailable |
|||
|
#20
BRACKET, FRONT SIDE RH
35956-14D01
|
$3.39 | ||
|
Unavailable |
|||
|
#20
BRACKET, REFLECTOR LH
35957-14D00
Superseded by 35957-14D01
|
$28.32 | ||
|
Unavailable |
|||
|
#20
BRACKET, FRONT SIDE RH
35957-14D01
|
$28.32 | ||
|
Unavailable |
|||
