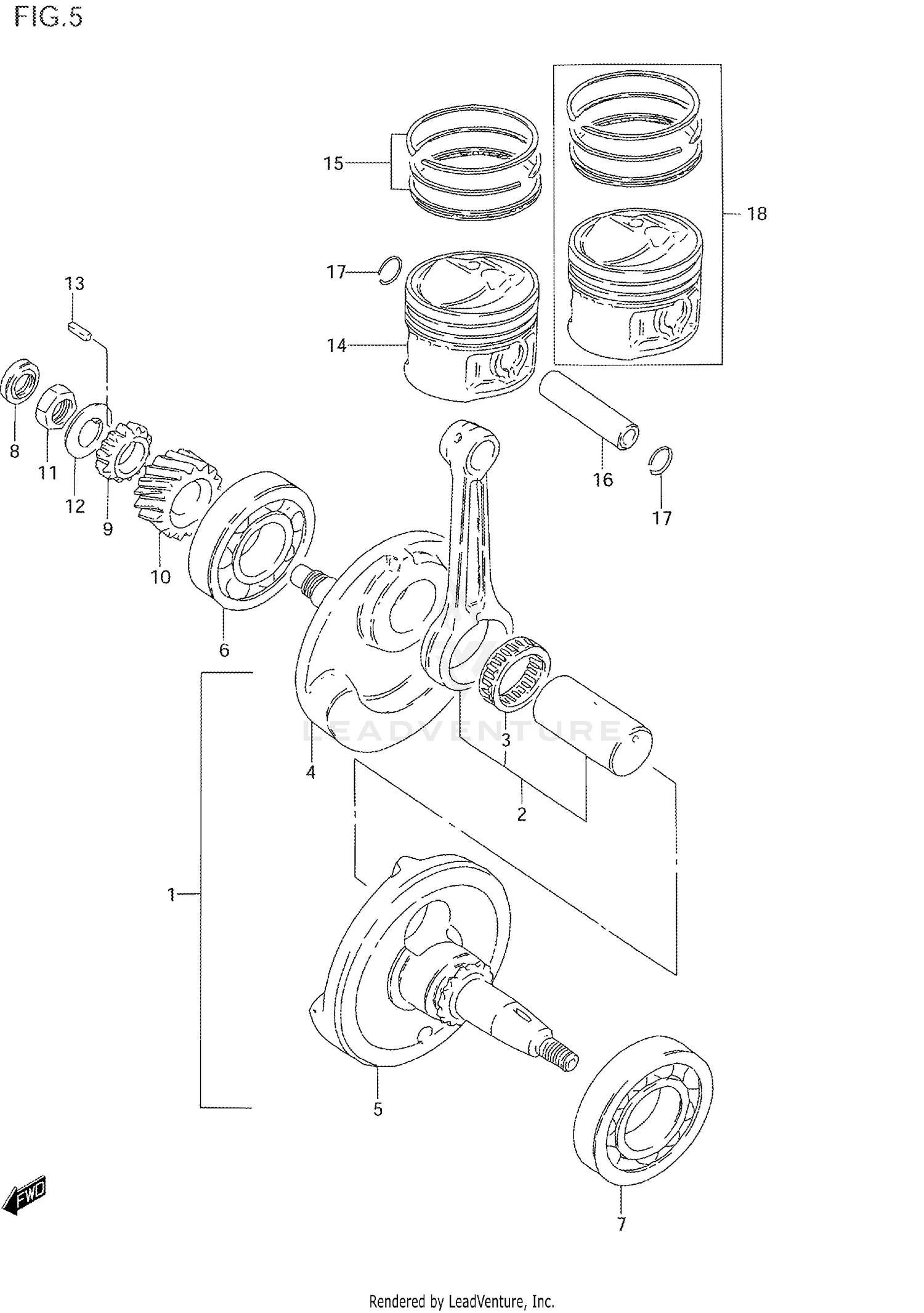

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
12200-05323
Superseded by 12200-05340
|
$410.91 | ||
|
Unavailable |
|||
|
#2
ROD SET, CONNECTING
12105-05821
|
$195.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING (28X36X15.8)
09263-28027-0B0
|
$41.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
CRANKSHAFT, RH
12221-05202
|
$88.80 | ||
|
Unavailable |
|||
|
#5
CRANKSHAFT, LH
12261-05301
|
$108.88 | ||
|
Unavailable |
|||
|
#6
BEARING, RH (28X68X18)
09262-28014
|
$74.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, LH (35X72X17)
09262-35038
|
$58.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL (12X21X7)
09282-12009
|
$16.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, OIL PUMP DRIVE (NT:15)
16321-05201
|
$23.14 | ||
|
Unavailable |
|||
|
#10
GEAR, PRIMARY DRIVE (NT:17)
21111-05200
Superseded by 21111-05200-0C0
|
$51.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
09140-16019
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
09166-16012
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
KEY
09421-04004
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
PISTON (YELLOW)
12111-05202
Superseded by 12111-05202-0F0
|
$78.96 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING SET, PISTON
12140-01410
|
$47.91 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, PISTON (YELLOW)
12151-05220
Superseded by 12151-05220-0A0
|
$15.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING, SNAP
09381-14001
|
$1.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PISTON SET (OS:0.5)
12100-05200-050
|
$139.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
PISTON SET (OS:1.0)
12100-05200-100
|
$69.93 | ||
|
Unavailable |
|||
