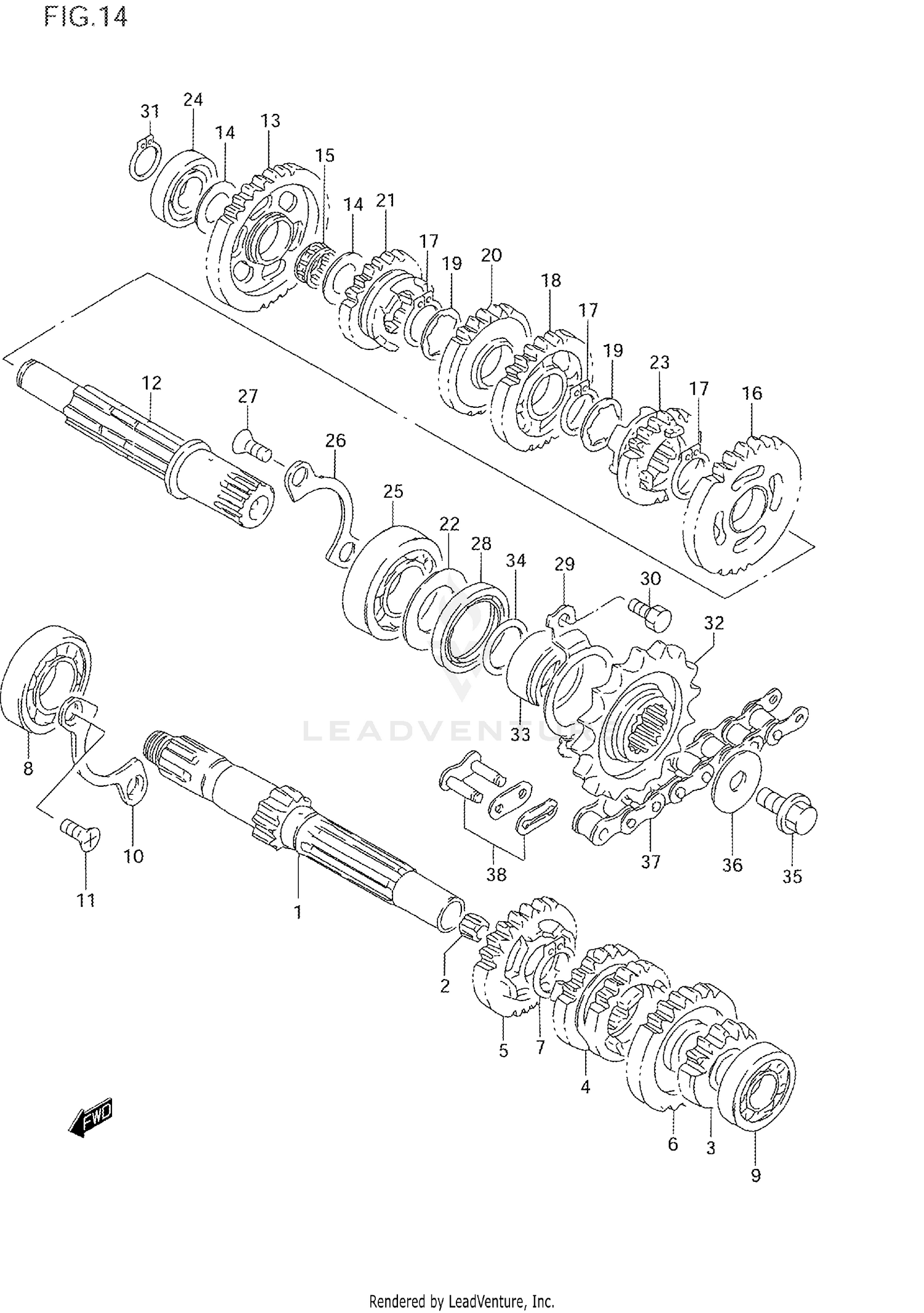

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, COUNTER (NT:11)
24121-05201
Superseded by 24120-05810
|
$169.68 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH
24125-38201
|
$6.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR,2ND DRIVE
24221-05201
Superseded by 24221-05202
|
$54.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, 3RD/4TH DR (NT:19/21)
24231-05202
Superseded by 24231-05203
|
$117.48 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 5TH DRIVE (NT:26)
24251-05211
Superseded by 24251-05212
|
$79.17 | ||
|
Available to order. Add to View Price |
|||
|
#6
NO DESCRIPTION AVAILABLE
24260-44A00
Superseded by 24260-44A01
|
$38.66 | ||
|
Unavailable |
|||
|
#7
CIRCLIP
09380-20009
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
09262-20069
|
$28.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
08123-60027
|
$24.46 | ||
|
Available to order. Add to View Price |
|||
|
#10
RETAINER, CNTR SHAFT BEARING
24741-05200
|
$4.08 | ||
|
Unavailable |
|||
|
#11
SCREW
02122-06123
Superseded by 02122-0612A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHAFT, DRIVE
24130-44A20
|
$123.84 | ||
|
Unavailable |
|||
|
#13
GEAR, 1ST DRIVEN (NT:33)
24311-05200
Superseded by 24311-05202
|
$86.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
THRUST WASHER
08211-15251
|
$1.75 | ||
|
Unavailable |
|||
|
#15
BEARING (15X19X7.8)
09263-15023
|
$17.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, 2ND DRIVEN (NT:26)
24320-05201
Superseded by 24320-05202
|
$38.31 | ||
|
Unavailable |
|||
|
#17
CIRCLIP
09380-20009
|
$2.33 | ||
|
Unavailable |
|||
|
#18
GEAR, 3RD DRIVEN (NT:26)
24331-05201
Superseded by 24331-05203
|
$38.31 | ||
|
Unavailable |
|||
|
#19
LOCK WASHER
09167-20011
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 4TH DRIVEN (NT:23)
24341-05201
Superseded by 24341-05203
|
$50.59 | ||
|
Unavailable |
|||
|
#21
GEAR, 5TH DRIVEN (NT:24)
24351-05210
Superseded by 24351-05211
|
$38.66 | ||
|
Unavailable |
|||
|
#22
WASHER, OIL SEALING
24359-42A00
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#23
NO DESCRIPTION AVAILABLE
24361-05210
Superseded by 24361-05211
|
$38.66 | ||
|
Unavailable |
|||
|
#24
BEARING (15X36X12)
09264-15001
|
$42.56 | ||
|
Unavailable |
|||
|
#25
BEARING (22X50X14)
09262-22018
|
$26.89 | ||
|
Available to order. Add to View Price |
|||
|
#26
RETAINER, CNTR SHAFT BEARING
24741-05200
|
$4.08 | ||
|
Unavailable |
|||
|
#27
BOLT
01500-06103
Superseded by 01500-0610B
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL (30X40X6)
09283-30053
|
$11.25 | ||
|
Available to order. Add to View Price |
|||
|
#29
RETAINER, DRIVE SHAFT OIL SEA
24751-42A01
Superseded by 24751-42A10
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW
02122-06123
Superseded by 02122-0612A
|
$1.73 | ||
|
Unavailable |
|||
|
#31
CIRCLIP
08331-31156
Superseded by 08331-3115A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPROCKET,ENGINE
27510-44A10
Superseded by 27510-44A11
|
$41.08 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPACER, ENGINE SPROCKET
27531-42A00
|
$24.92 | ||
|
Available to order. Add to View Price |
|||
|
#34
O RING (D:2.5,ID:21)
09280-21008
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT (8X12)
01550-08123
Superseded by 01550-0812A
|
$2.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
WASHER
08211-08283
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#37
CHAIN ASSY,DRIV
27600-20511
Superseded by 27600-46912-134
|
$76.02 | ||
|
Available to order. Add to View Price |
|||
|
#37
CHAIN ASSY,DRIV
27600-46911-134
Superseded by 27600-46912-134
|
$76.02 | ||
|
Unavailable |
|||
|
#38
.JOINT (DID428HD(I))
27620-46911
Superseded by 27620-46912
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#38
JOINT (RK)
27620-05220
Superseded by 27620-40220
|
$11.97 | ||
|
Available to order. Add to View Price |
|||
