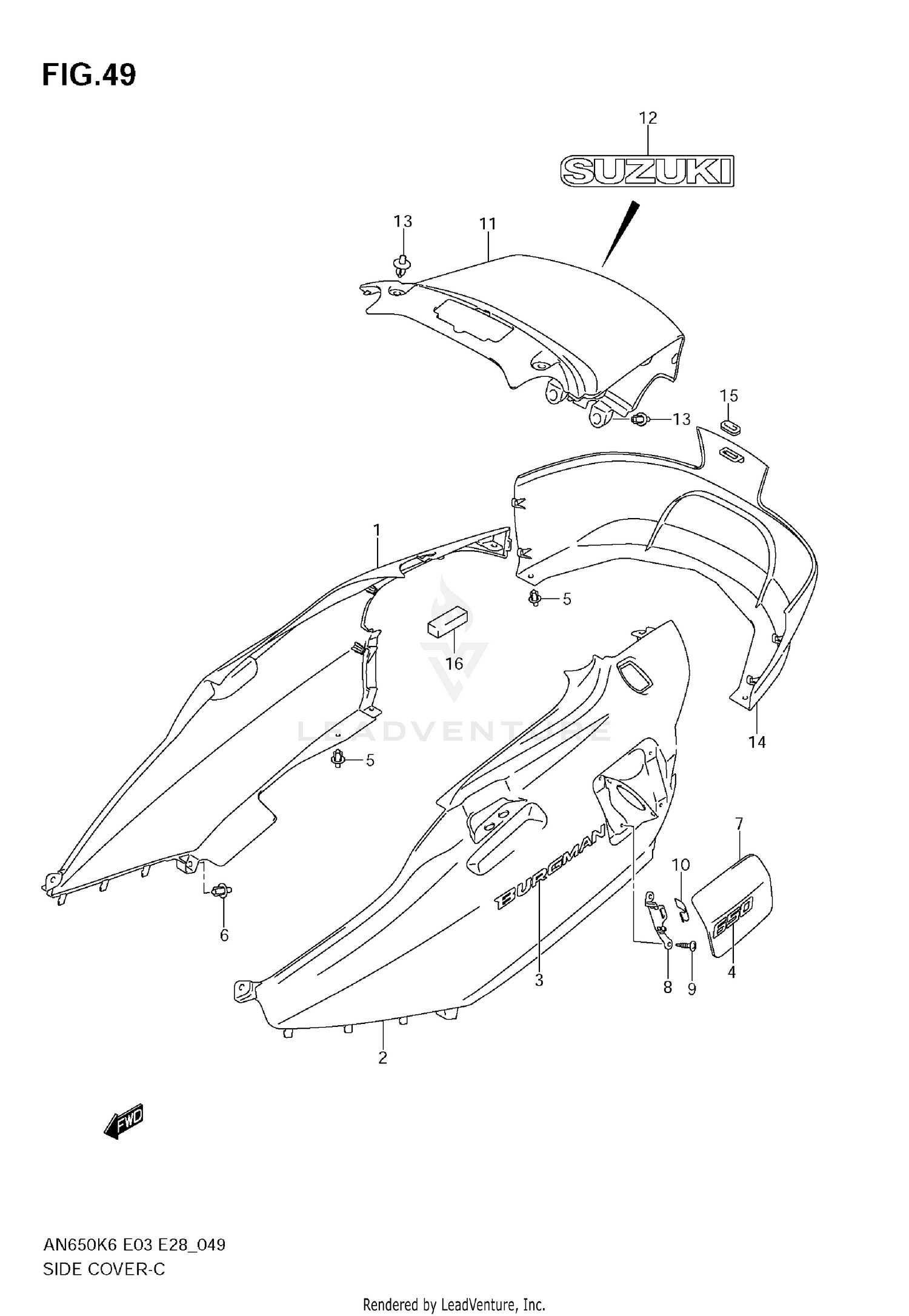

Side Cover (an650k6/k7) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,SIDE,R(NO
47111-10G11-YC3
Superseded by 47111-10G20
|
$118.45 | ||
|
Unavailable |
|||
|
#1
COVER, SIDE RH (GRAY)
47111-10G11-YHG
Superseded by 47111-10G20-YHG
|
$390.80 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER,SIDE,R(NO
47111-10G20-YC3
Superseded by 47111-10G20
|
$118.45 | ||
|
Unavailable |
|||
|
#1
COVER, SIDE RH (GRAY)
47111-10G20-YHF
|
$390.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER,SIDE,L
47211-10G31-YC3
Superseded by 47211-10G32-YC3
|
$301.10 | ||
|
Unavailable |
|||
|
#2
COVER, SIDE LH (GRAY)
47211-10G31-YHG
|
$291.84 | ||
|
Unavailable |
|||
|
#2
COVER, SIDE LH (GRAY)
47211-10G31-YHF
|
$291.84 | ||
|
Unavailable |
|||
|
#3
EMBLEM, SIDE COVER
68131-10G10
|
$69.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
EMBLEM, "650"
68131-10GA0
|
$31.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP (BLACK)
09409-06314-5PK
|
$3.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CLIP (7.6X25.7,BLACK)
09409-08308-5ES
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
LID, FUEL (WHITE)
47381-10G11-YC3
|
$52.17 | ||
|
Available to order. Add to View Price |
|||
|
#7
LID, FUEL (GRAY)
47381-10G11-YHG
|
$51.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
LID, FUEL (GRAY)
47381-10G11-YHF
|
$53.14 | ||
|
Available to order. Add to View Price |
|||
|
#8
HINGE
47382-10G10
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
03541-05123
Superseded by 03541-0512A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
03541-0512B
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, LID
47388-10G00
Superseded by 47388-10G01
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
CVR,FRAME CTR(N
47311-10G01-YC3
Superseded by 47311-10G01
|
$25.64 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, FRAME CENTER (GRAY)
47311-10G01-YHG
|
$86.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
CVR,FRAME CTR(N
47311-10G01-YHF
Superseded by 47311-10G01
|
$25.64 | ||
|
Unavailable |
|||
|
#12
EMBLEM,"SUZUKI"
68271-34A00-YJH
Superseded by 68271-34A01-YJH
|
$9.44 | ||
|
Available to order. Add to View Price |
|||
|
#12
.EMBLEM,"SUZUKI" (SILVER)
68271-34A00-YES
Superseded by 68271-34A01-YES
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP (7.6X25.7,BLACK)
09409-08308-5ES
|
$2.45 | ||
|
Unavailable |
|||
|
#14
COVER, FRAME LOWER (WHITE)
47321-10G00-YC3
|
$156.81 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, FRAME LOWER (GRAY)
47321-10G00-YHG
|
$153.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, FRAME LOWER (GRAY)
47321-10G00-YHF
|
$156.81 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION
09320-04008
Superseded by 09320-04012
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION, FRAME COVER
47115-10G00
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
