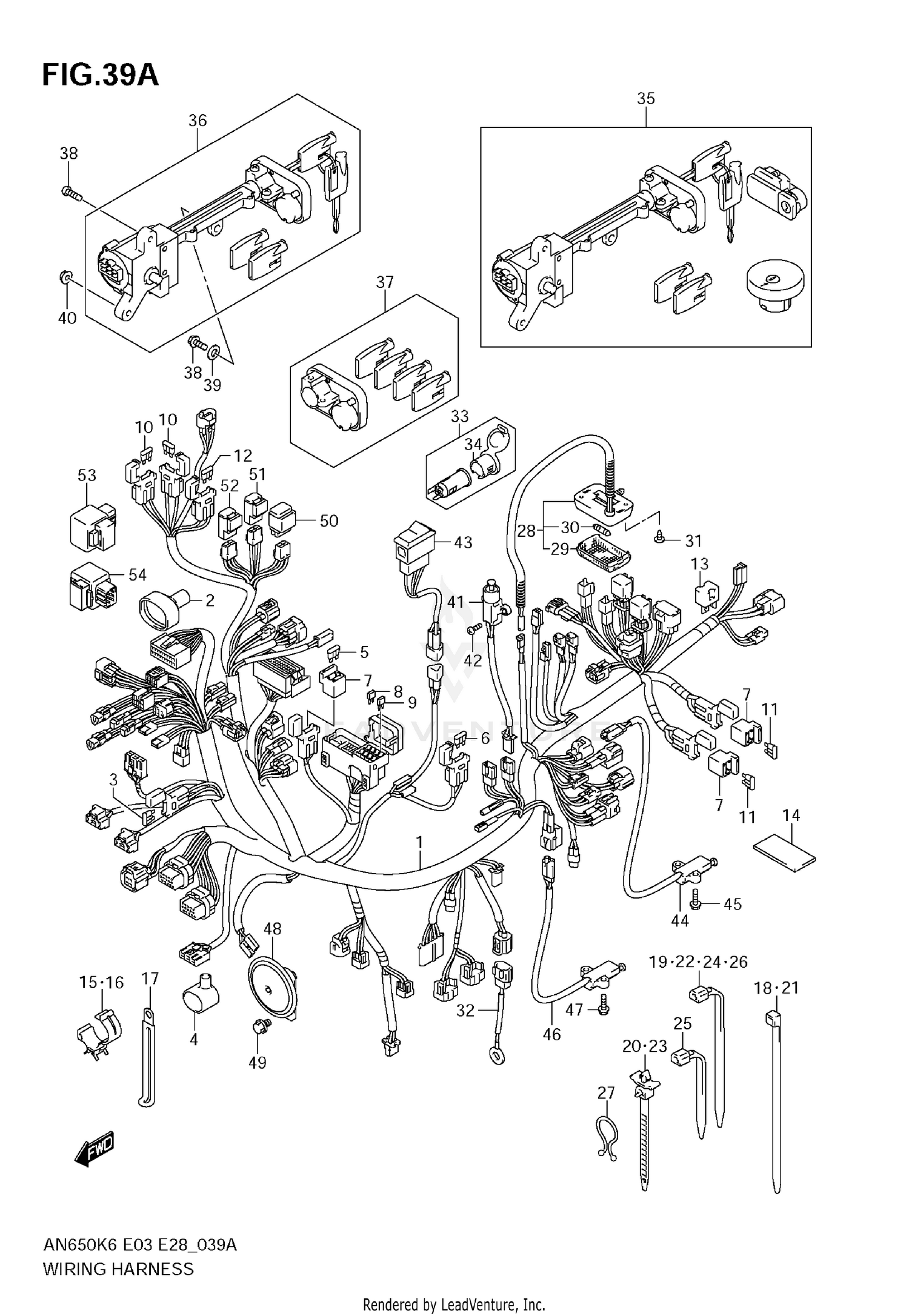

Wiring Harness (an650ak9) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING
36610-19HG0
|
|||
|
Unavailable |
|||
|
#1
HARNESS, WIRING
36610-19HE0
|
|||
|
Unavailable |
|||
|
#1
HARNESS, WIRING
36610-19HJ0
|
$1,016.50 | ||
|
Unavailable |
|||
|
#2
COVER
36618-21E00
|
$7.03 | ||
|
Unavailable |
|||
|
#3
FUSE (3A)
09481-03101
|
$1.26 | ||
|
Unavailable |
|||
|
#4
BOOT
36717-19H00
|
$6.89 | ||
|
Unavailable |
|||
|
#5
FUSE (10A)
09481-10101
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
FUSE (5A)
09481-05101
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, FUSE
36742-39D00
|
$21.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUSE (10A)
09481-10501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE (15A)
09481-15501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE (15A)
09481-15101
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUSE (40A)
09481-40101
|
$10.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
.FUSE (20A)
09481-20101
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIODE
32800-16A00
|
$29.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
PROTECTOR
36920-08D00
|
$2.03 | ||
|
Unavailable |
|||
|
#15
CLAMP
09403-25401
|
$2.48 | ||
|
Unavailable |
|||
|
#16
CLAMP
09403-30403
|
$2.48 | ||
|
Unavailable |
|||
|
#17
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP (L:100)
09407-10404
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP (L:95)
09407-11401
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP (L:90)
09407-11402
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP (L:145)
09407-14407
|
$3.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CLAMP
09407-14408
Superseded by 09407-17402
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
09407-14408
Superseded by 09407-17402
|
$4.29 | ||
|
Unavailable |
|||
|
#24
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP (L:190)
09407-19401
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP (L:235)
09407-25401
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP (ID:11.5)
09408-00012
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#28
LAMP ASSY, TRUNK BOX
36210-10G00
|
$130.95 | ||
|
Available to order. Add to View Price |
|||
|
#29
LENS
36212-79001
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#30
BULB (12V,5W)
09471-12073
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, TRUNK BOX
03541-0412B
|
$1.56 | ||
|
Unavailable |
|||
|
#32
WIRE, OIL PRESSURE SWITCH LEAD
36851-10G00
|
$7.00 | ||
|
Unavailable |
|||
|
#33
SOCKET ASSY (12V,120W,GRAY)
39410-76F00-P4Z
|
$34.42 | ||
|
Unavailable |
|||
|
#34
COVER (GRAY)
39441-76F00-P4Z
|
$16.67 | ||
|
Available to order. Add to View Price |
|||
|
#35
LOCK SET
37103-10841
Superseded by 37103-10846
|
$514.73 | ||
|
Unavailable |
|||
|
#36
LOCK ASSY,STEER
37120-10861
Superseded by 37120-10865
|
$362.50 | ||
|
Unavailable |
|||
|
#37
SHUTTER, STEERING LOCK
37155-10G01
|
$205.18 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT
09139-06048
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER
09160-06084
|
$2.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
NUT
08316-1006B
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
SWITCH ASSY, TRUNK BOX LAMP
37980-14F00
|
$83.53 | ||
|
Available to order. Add to View Price |
|||
|
#42
.SCREW
02112-0516B
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#43
SWITCH ASSY, SEAT HEATER
37320-19H00
|
$138.07 | ||
|
Available to order. Add to View Price |
|||
|
#44
SWITCH ASSY,SID
37840-10G00
Superseded by 37840-10G02
|
$90.65 | ||
|
Unavailable |
|||
|
#45
BOLT
01550-0620B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#46
SWITCH ASSY,SID
37840-20E00
Superseded by 37840-20E02
|
$93.18 | ||
|
Unavailable |
|||
|
#47
BOLT
01550-0620B
|
$2.95 | ||
|
Unavailable |
|||
|
#48
HORN ASSY
38500-10G00
|
$82.75 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT, HORN
01550-0812B
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#50
RELAY ASSY, FAN MOTOR
38740-38B00
|
$71.45 | ||
|
Unavailable |
|||
|
#51
RELAY ASSY,FUEL PUMP
38740-26E00
Superseded by 38740-26E01
|
$51.23 | ||
|
Available to order. Add to View Price |
|||
|
#52
RELAY ASSY,FUEL PUMP
38740-26E00
Superseded by 38740-26E01
|
$51.23 | ||
|
Unavailable |
|||
|
#53
RELAY ASSY, DRIVE
38750-03G00
|
$161.96 | ||
|
Available to order. Add to View Price |
|||
|
#54
RELAY ASSY, SCREEN
38750-10G00
|
$101.76 | ||
|
Unavailable |
|||
