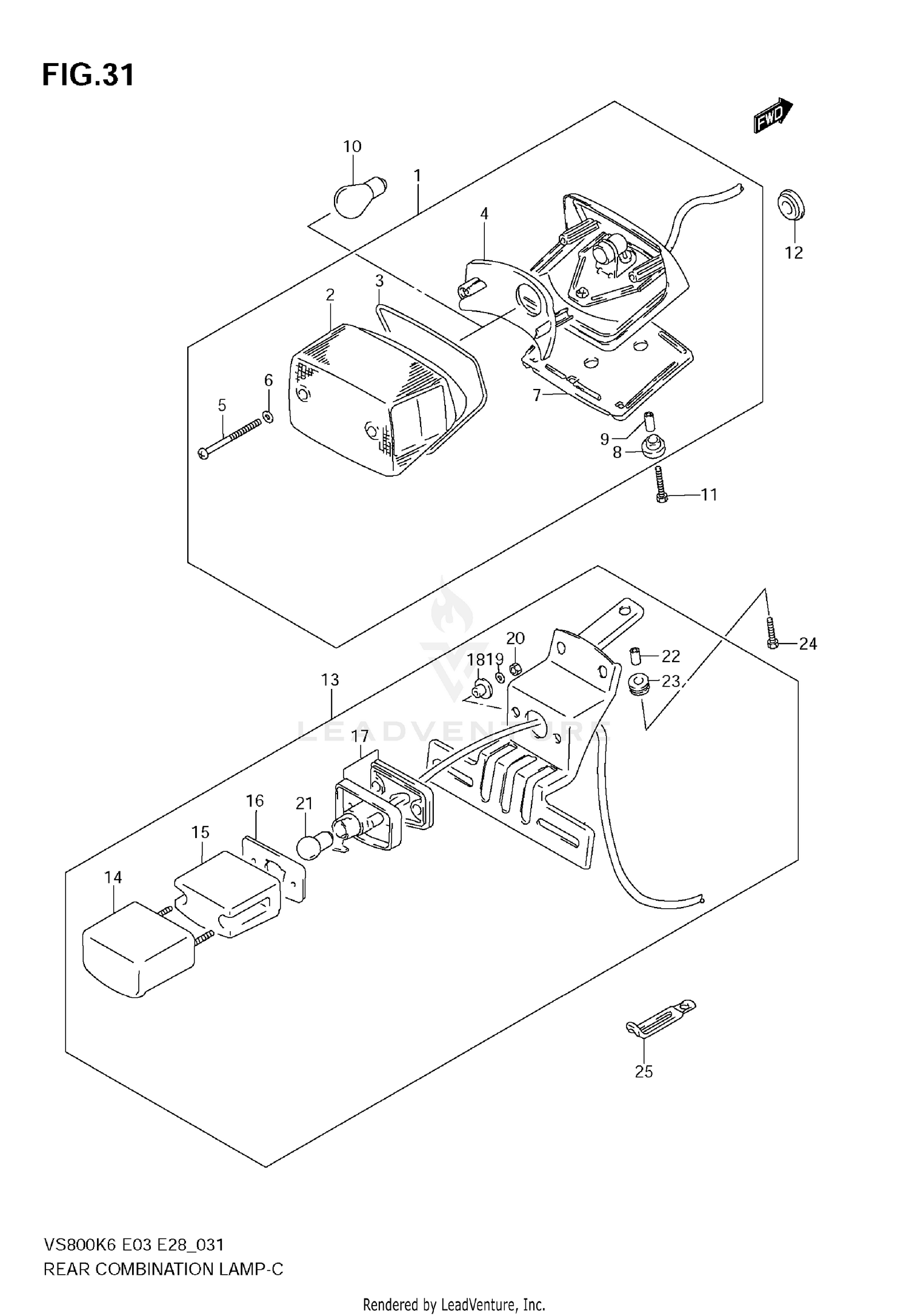

Rear Combination Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, REAR COMBINATION
35710-39A00-999
|
$114.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS
35712-38A30
|
$69.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
35713-31D00
|
$10.17 | ||
|
Available to order. Add to View Price |
|||
|
#4
REFLECTOR
35714-38A00
|
$24.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
35723-44130
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
GASKET
35627-43010
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
35765-38A00
|
$14.24 | ||
|
Unavailable |
|||
|
#8
CUSHION
35764-26470
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER
35766-37190
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
BULB (12V,21/5W)
09471-12128
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (6X25)
09116-06093
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET, REAR COMB WIRE
09308-14006
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
LAMP ASSY, LICENSE
35910-38A40
|
$159.91 | ||
|
Unavailable |
|||
|
#14
COVER, LICENSE LAMP
35917-17C10
|
$83.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
LENS
35912-38A30
|
$22.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET
35913-38A30
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOUSING, LICENSE LAMP
35915-38A40
|
$44.73 | ||
|
Unavailable |
|||
|
#18
SPACER
35766-17C00
|
$1.70 | ||
|
Unavailable |
|||
|
#19
LOCK WASHER
08321-0104A
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
08310-00047
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
BULB (12V5W)
09471-12140
Superseded by 09471-12058
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER
35766-38A00
|
$2.30 | ||
|
Unavailable |
|||
|
#23
CUSHION
35765-38A30
|
$3.09 | ||
|
Unavailable |
|||
|
#24
BOLT (6X20)
09116-06010
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP (L:45)
09404-06429
|
$2.20 | ||
|
Unavailable |
|||
