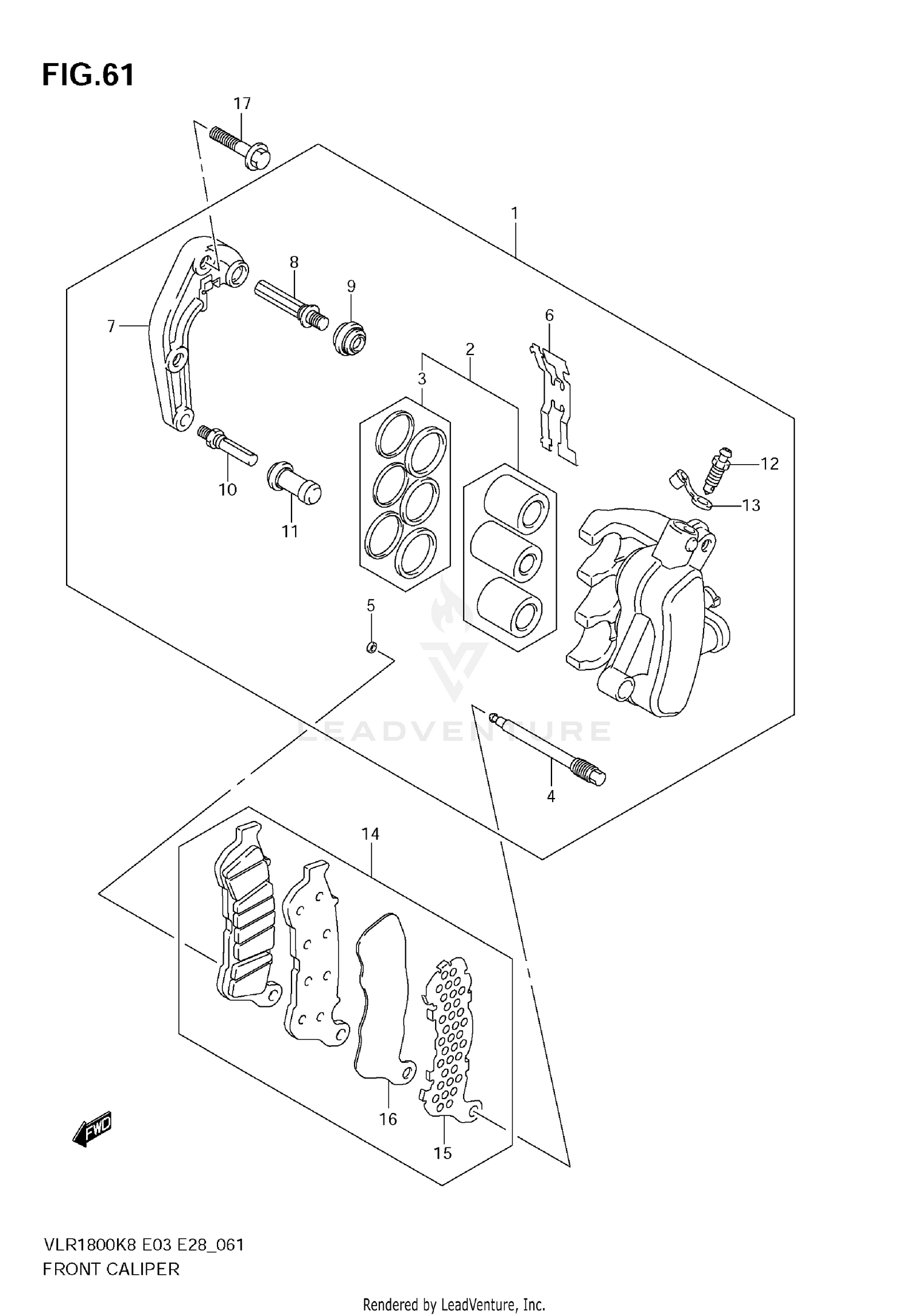

Front Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY, FRONT, R
59100-22H00-999
|
$470.15 | ||
|
Unavailable |
|||
|
#1
CALIPER ASSY, FRONT, L
59300-22H00-999
|
$658.48 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON SET
59100-03890
|
$112.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL SET, PISTON
59301-14830
|
$81.92 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, PAD
59135-03H00
|
$10.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, STOPPER
59145-37F00
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, PAD
59115-03H00
|
$10.82 | ||
|
Unavailable |
|||
|
#7
BRACKET, R
59150-03H00
|
$70.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, L
59350-22H00
|
$110.18 | ||
|
Unavailable |
|||
|
#8
PIN
59187-21E10
|
$28.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT
59303-14500
|
$6.83 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
59382-14500
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOOT
59386-13A00
|
$9.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
BLEEDER
59121-01A00
|
$10.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, BLEEDER
59122-01A00
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
PAD & RETAINER SET, R
59100-22830
|
$79.23 | ||
|
Available to order. Add to View Price |
|||
|
#14
PAD & RETAINER SET, L
59300-22830
|
$75.86 | ||
|
Available to order. Add to View Price |
|||
|
#16
INSULATOR
59132-22H00
|
$23.22 | ||
|
Available to order. Add to View Price |
|||
|
#15
RETAINER, R
59372-20H00
|
$14.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
RETAINER, L
59371-20H00
|
$14.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
01550-0835A
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
