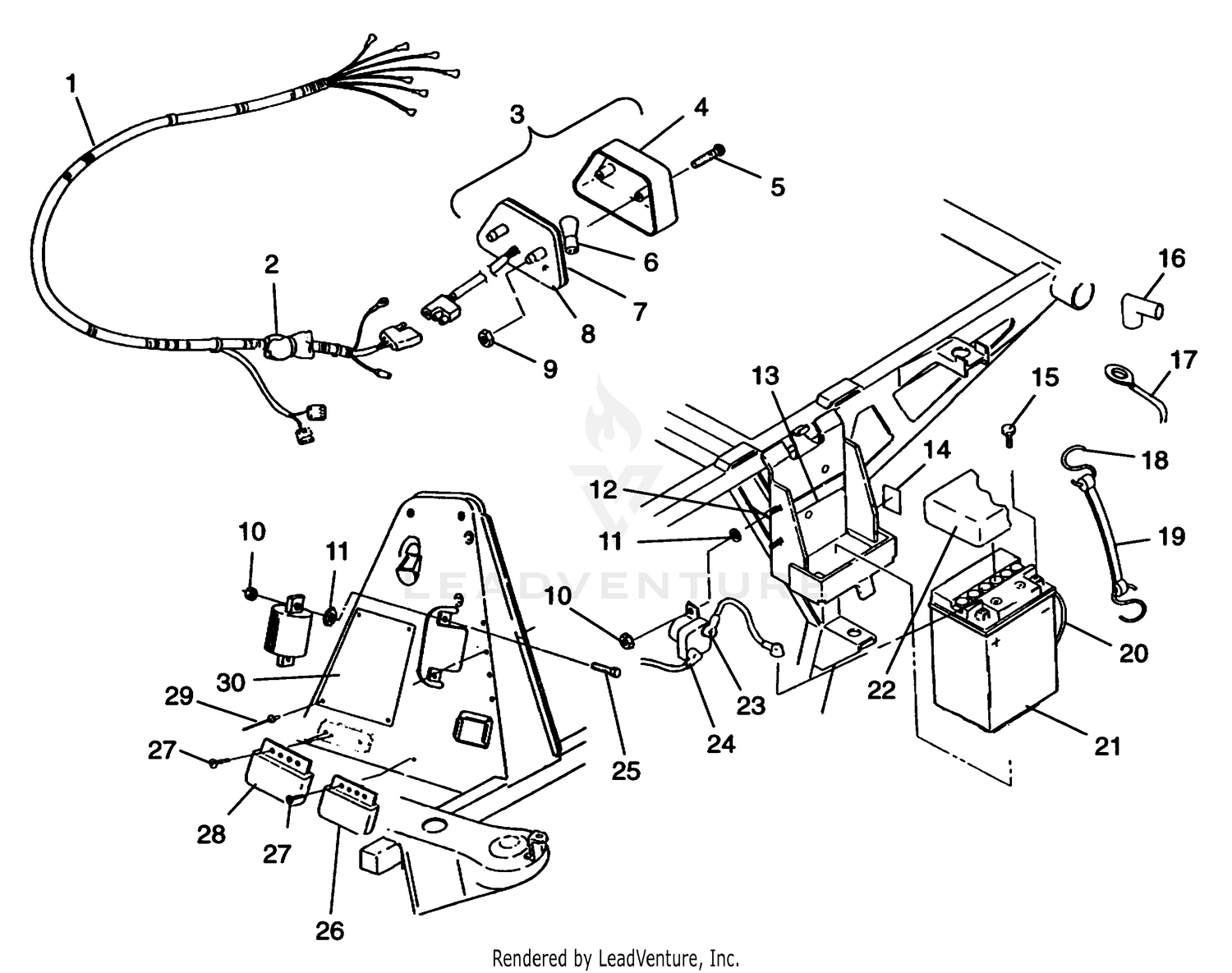

Electrical/taillight Xpress 300 W98ca28c (4945364536c005) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS-MAIN WIRE
2460554
|
|||
|
Unavailable |
|||
|
#2
KIT,CKT.BRKR,20 AMP
2200593
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TAIL LIGHT ASM.
2432034
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS,TAILLIGHT
4032046
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, TAILLIGHT
4032029
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB,TAILLIGHT
4030043
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
GASKET,TAILLIGHT
4032045
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BACKING,TAILLIGHT
4032064
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPEED NUT-WASHER, HEAD-1/4
7670054
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
NUT(10)
7541925
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER(10)
7571602
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW(10)
7512027
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PAD-BATTERY
5810290
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DECAL, BATTERY [No Longer Available]
7072606
|
|||
|
Unavailable |
|||
|
#15
BOLT,BATT,KIT(SHORT)
2200361
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
INSULATOR-CABLE
5410346
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CABLE,BATT/ENG.,BLK.
4010095
|
|||
|
Available to order. Add to View Price |
|||
|
#18
HOOK-BATT.H/D(10)
7010032
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Strap, Battery Holddown
5410424
Superseded by 5412499
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE,BATTERY VENT
5432077
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BATTERY
4140006
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER,BATTERY
5431769
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CABLE,BATT/SOLENOID,RED
4010094
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CABLE,SOLENOID/STARTER
4010064
|
|||
|
Available to order. Add to View Price |
|||
|
#25
SCREW(10)
7512007
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
RECTIFIER/REGULATOR,LR39-1
4060193
|
|||
|
Unavailable |
|||
|
#27
SCREW,(10)
7512024
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
LIMITER,REV.SPEED
4060085
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
RIVET,(50)
7621336
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOARD,TERMINAL,150 ALT,ATV
4040063
|
|||
|
Unavailable |
|||
