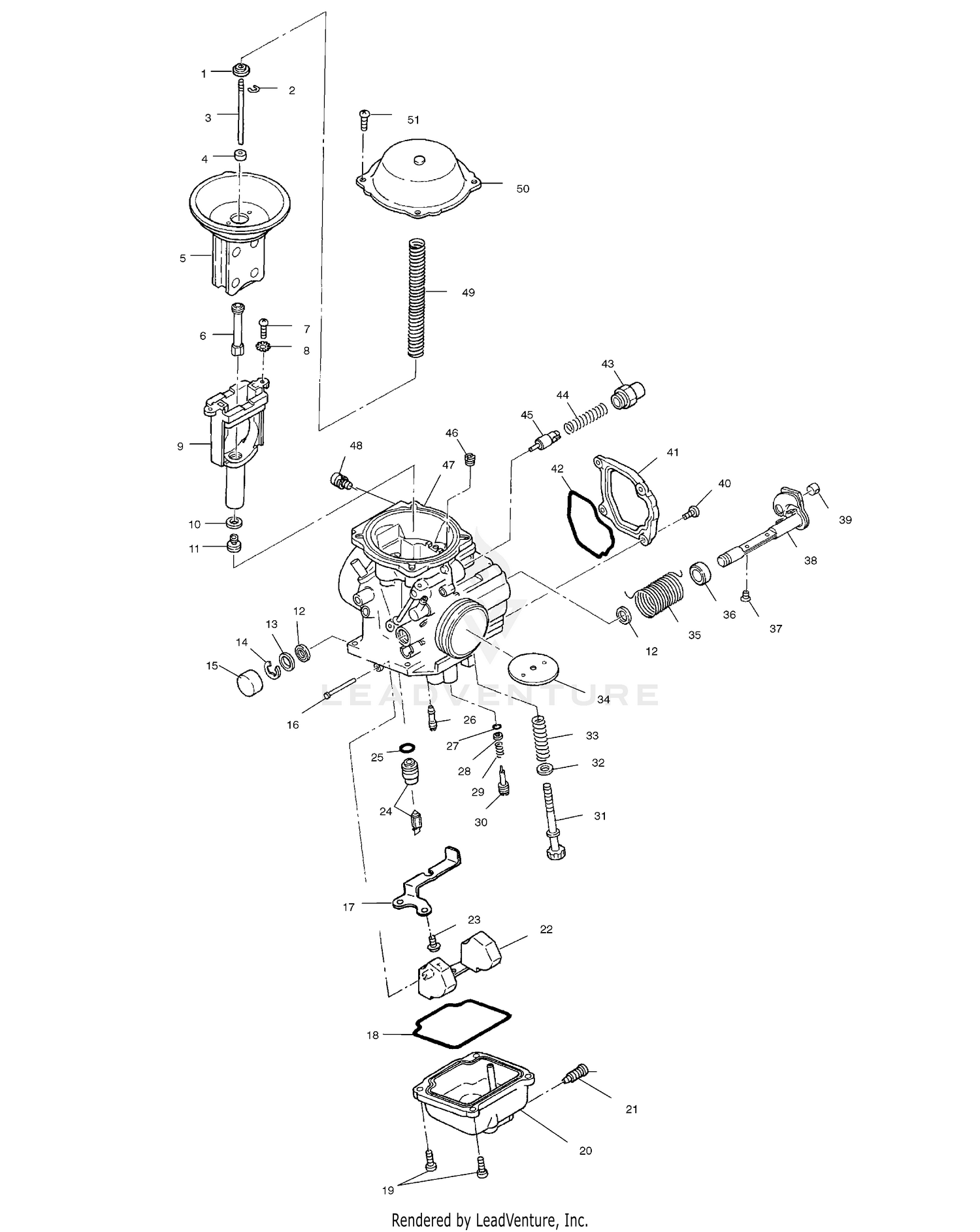

Carburetor - A02ca32aa/ab (4969816981c09) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Ring
3130507
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
E-Ring
3130508
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Needle, Jet
3130730
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Ring
3130752
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Diaphragm
3130732
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Jet, Needle
3131329
|
$46.39 | ||
|
Available to order. Add to View Price |
|||
|
#7
Screw
3130541
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Washer, Spring
3130540
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Asm., Jet Block
3131128
|
|||
|
Available to order. Add to View Price |
|||
|
#10
Washer
3130014
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Jet, Main
3131328
|
|||
|
Unavailable |
|||
|
#12
Seal
3130515
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Packing
-------
|
|||
|
Unavailable |
|||
|
#14
E-Ring
3130518
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Cap
3130519
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Pin, Float
3130361
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Plate
3130594
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-Ring
3130532
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Screw
3130520
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Asm., Float Body
3130590
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Screw
3130521
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Asm., Float
3130529
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Screw
3130591
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
Valve, Needle
3131360
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-Ring
3130533
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
JET,PILOT(#50)
3131327
Superseded by 3131132
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-Ring
3130522
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Washer
3130523
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
Spring
3130525
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Adjuster
3131131
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Screw, Adjust
3130546
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Ring
3130545
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Spring
3130544
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Valve, Throttle
3131126
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Spring
3130589
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Ring
3130514
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Screw
3130501
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Asm., Throttle Shaft
3130513
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Guide, Cable
3130543
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Screw
3130535
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
Cover
3130511
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
O-Ring
3130512
|
$39.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
Holder, Guide
3130199
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
Spring
3130538
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Asm., Plunger
3130593
Superseded by 3130539
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
Jet, Air
3131133
|
|||
|
Unavailable |
|||
|
#47
Asm., Carburetor
3131383
|
|||
|
Available to order. Add to View Price |
|||
|
#48
Screw and Washer
3084205
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
Spring
3131129
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Asm., Cover
3131127
|
|||
|
Available to order. Add to View Price |
|||
|
#51
SCREW
3130592
Superseded by 3130924
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
