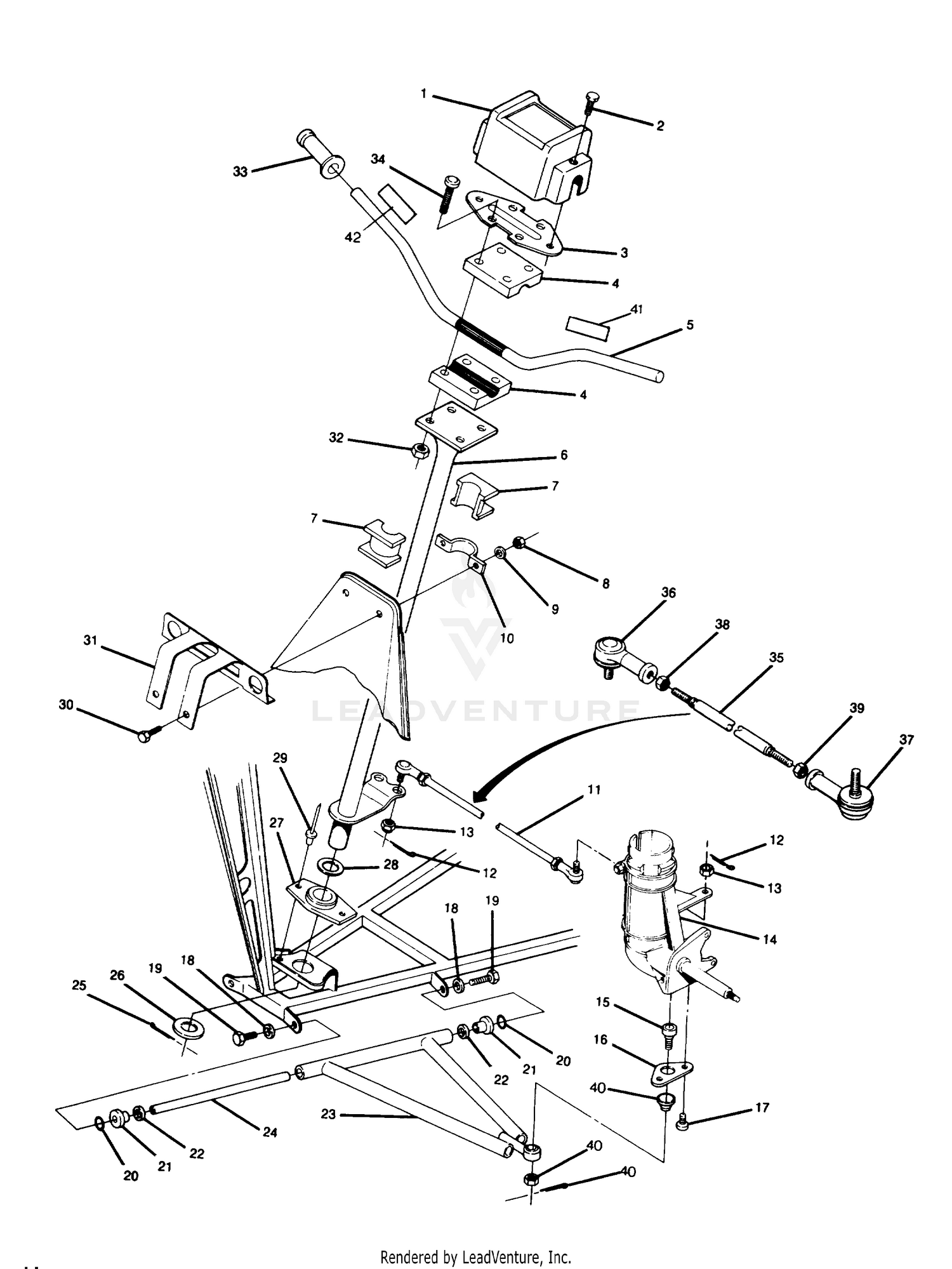

Steering Assembly 250 2x4 - Update (4919781978011a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAD, HANDLEBAR
5810379
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
7512286
Superseded by 7515197
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Mount, Handlebar Pad
5220946
Superseded by 5245051
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
BLOCK,HANDLEBAR
5630187
Superseded by 5630187-067
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE,HANDLEBAR,BLK
5224316-132
Superseded by 5242988-067
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
POST, STEERING
1843028-067
|
|||
|
Unavailable |
|||
|
#7
BUSHING,UPPER,STEERING
5430966
Superseded by 5433416
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-5/16-18 NYLOK-Y
7542324
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BRACKET, STEERING BUSHING, UPPER
5220887-067
Superseded by 5257028
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIE ROD ASM. Substituted by 1822307
1822070
|
|||
|
Unavailable |
|||
|
#12
PIN COTTER(10)
7661203
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NUT, CASTLE(10)
7546904
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SUPPORT,LH STRUT&SPINDLE Substituted by 5130803
5130655
|
|||
|
Unavailable |
|||
|
#14
SUPPORT,RH STRUT&SPINDLE Substituted by 5130804
5130656
|
|||
|
Unavailable |
|||
|
#15
BALL-JOINT,GREASELESS,STRUT
7080364
Superseded by 7061158
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET-BALL JOINT
5211121
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER(10)
7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Screw
7515458
Superseded by 7512492
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
O RING
5410458
|
|||
|
Unavailable |
|||
|
#21
BUSHING, A-ARM
3563604
|
|||
|
Unavailable |
|||
|
#21
KIT,A-ARM BUSH.(PRE-93,ATV)
3576509
Superseded by 2200474
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER(10)
7555774
|
|||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
A-FRAME, LH Substituted by 2200477
1580028-067
|
|||
|
Unavailable |
|||
|
#23
A-FRAME, RH Substituted by 2200478
1580029-067
|
|||
|
Unavailable |
|||
|
#24
SHAFT,'A' ARM
5020477
|
|||
|
Unavailable |
|||
|
#25
PIN, COTTER(10)
7661404
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BUSHING(10)
7555781
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BUSHING,LOWER STRG.
5430895
Superseded by 5431570
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BUSHING(10)
7556401
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
RIVET-3/16-.090-.290
7661620
Superseded by 7661637
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SCREW(10)
7512307
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BRKT,IGN.PANEL Substituted by 5220965-067
5220965
|
|||
|
Unavailable |
|||
|
#32
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
Grip, Handlebar
5431030
Superseded by 5433834-070
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT,(10)
7512265
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
TIE ROD
5020478
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
ROD,END,RH,10 MM.
7060138
Superseded by 7060172
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
ROD END
7060147
|
$74.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
NUT, RH, 10 MM.(10)
7546901
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, LH, 10 MM.(10)
7546902
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#40
KIT, BALL JOINT
2200290
|
|||
|
Unavailable |
|||
|
#41
DECAL,O'RIDE SWITCH Substituted by 7076274
7072390
|
|||
|
Unavailable |
|||
|
#42
DECAL,THROTTLE(ENG.) [No Longer Available]
7072724
|
|||
|
Unavailable |
|||
