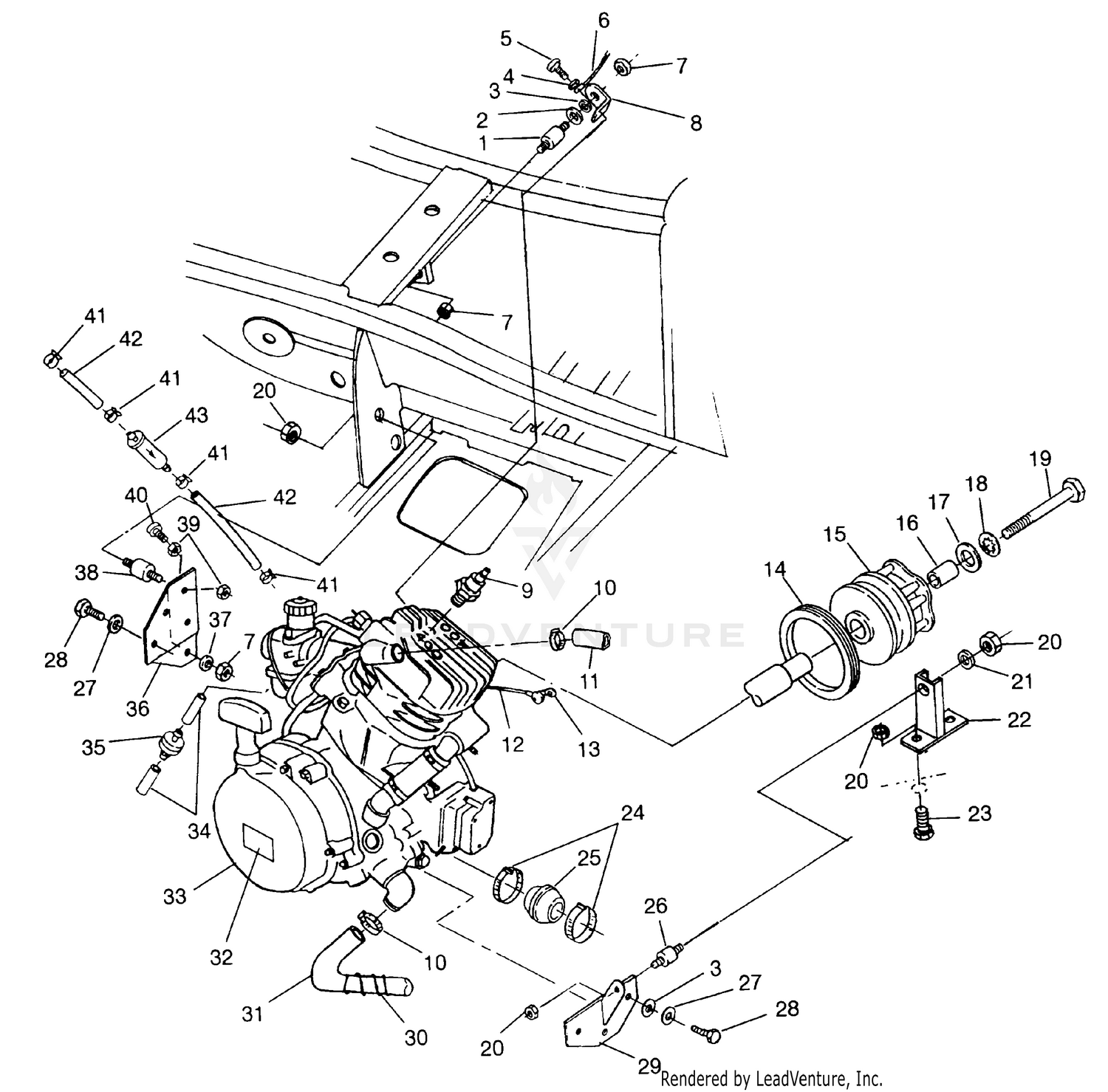

Engine Mounting (sport) Sport 400l W97ba38c (4940124012a009) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ISOLATOR-3/8-24M/M,65DURO
3110038
Superseded by 3022069
|
$30.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
INSULATOR,MOTOR MT.
5430802
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER(10)
7555823
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
LOCK WASHER(10)
7552901
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOLT(10)
7515321
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CABLE,GND-ENGINE
4010132
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT LOCK(10)
7542411
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
MOUNT,ENG,TOP
5241801-067
|
|||
|
Unavailable |
|||
|
#9
SPARKPLUG (10)
3070156
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP,HOSE,(10)
7080614
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE,ENG,UPPER
5410570
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CABLE,SOL/START,DBLBOOT
4010129
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
INSULATOR-CABLE
5410346
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Seal, Cover Case
-------
|
|||
|
Unavailable |
|||
|
#15
Asm., Drive Clutch, Basic ATV-07
-------
|
|||
|
Unavailable |
|||
|
#16
BUSHING-.437 X.770 X.50
5430261
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER-.440X1.25X.190 FL-Y
5210748
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER-7/16-INT LK-(1222)-Z
7575202
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT(10)
7512566
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT LOCK(10)
7542403
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER(10)
7555806
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
MOUNT,ENG,LOW,BLK
1040532-067
|
|||
|
Unavailable |
|||
|
#23
BOLT(10)
7512457
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP, NARROW BAND(10)
7080511
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOOT,CLUTCH INTAKE(400)
5410883
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
MOUNT,MOTOR
3110026
Superseded by 3022067
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER, SPRING LOCK
7553001
Superseded by 7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW(10)
7512490
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
MOUNT,ENGINE
1040231-067
|
|||
|
Available to order. Add to View Price |
|||
|
#30
SPRING,HOSE RETAINER
7041079
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE,LOWER ENGINE
5411173
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
DECAL,DRAIN RECOIL Substituted by 7078577
7075741
|
|||
|
Unavailable |
|||
|
#33
ENG.(S.B.)EC38PLE-05 [No Longer Available]
3085234
|
|||
|
Unavailable |
|||
|
#34
FUEL LINE,1/8 ID,600 CM.
8360009-600
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Valve, Check
7052047
Superseded by 7051011
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#36
MOUNT, REAR MOTOR, BLK.
5240542-067
|
|||
|
Unavailable |
|||
|
#37
WASHER(10)
7555801
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
ISOLATOR-3/8-24M/M,60DURO
3110042
Superseded by 3022070
|
$27.79 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, JAM(10)
7542432
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
MT,TORQUE STOP,RUBBER
3110048
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLAMP-HOSE,(10)
7080236
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
FUEL LINE,1/4 ID(600 CM.)
8450040-600
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
FILTER,SMALL,IN-LINE,(10)
2530009
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
