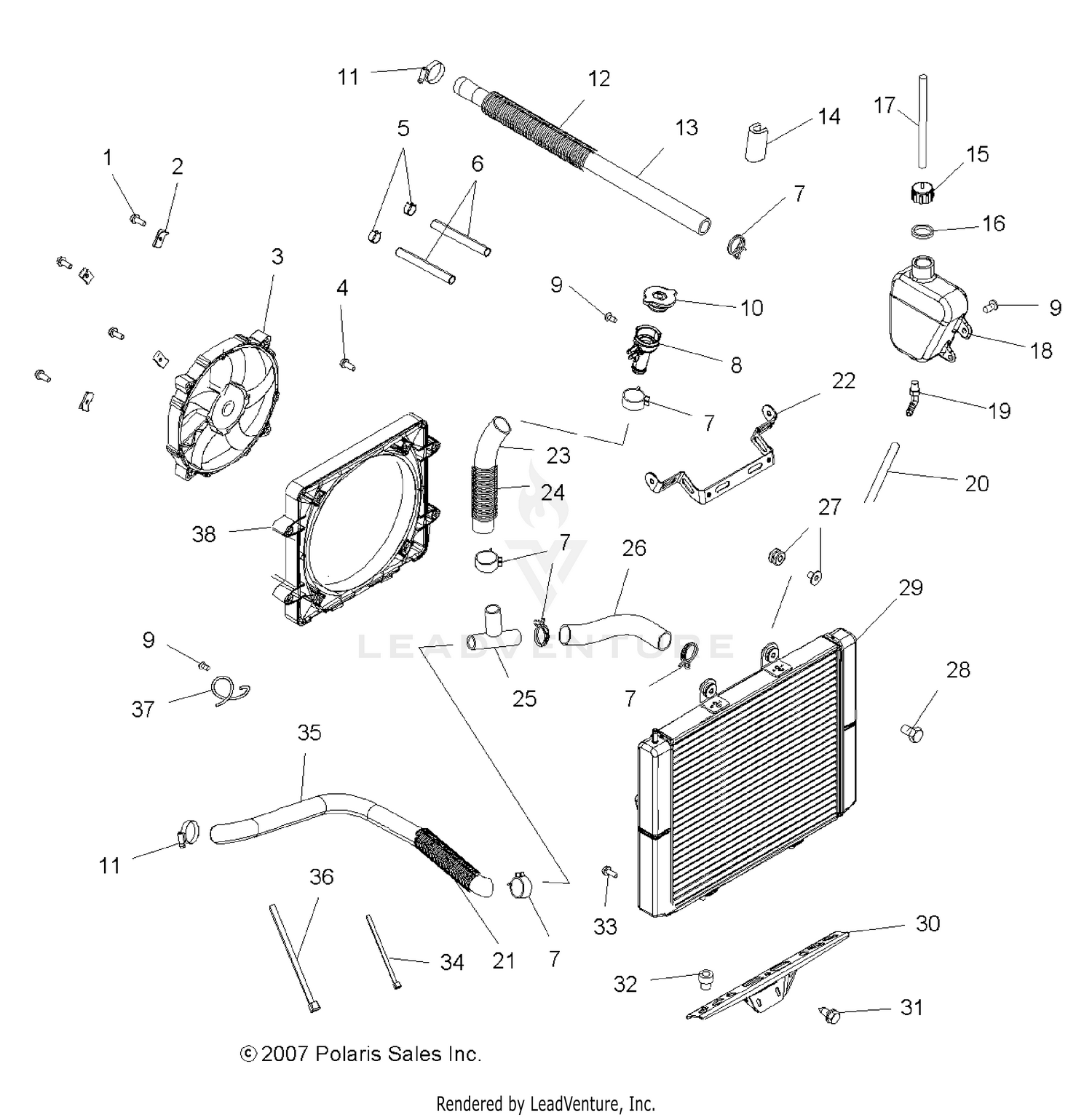

Engine, Cooling System (built 4/07 And After) - A09cl76aa (49atvcool08sp800efi) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Screw
7516822
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
CLIP-"U",M6.0X1.0
7547366
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
KIT-FAN
2204192
Superseded by 2204347
|
$266.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Screw w/Washer
7547220
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE CLAMP, RED
7080003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Hose
8450120-600
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Clamp, Springband
7080843
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Filler, Remote, Coolant
5438110
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Screw
7512084
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Cap, Pressure
1240508
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP-HOSE(WORM DR)25-40MM
7081192
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Conduit, Flex
5521794-17
Superseded by 5521794-38
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Hose, Engine, Upper
5413672
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Trim, Edge
5521131
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Cap, Overflow w/Fitting
5437635
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Line, Fuel
8360009-600
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TANK-SURGE
5436936
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Fitting, 90 Degree
7052065
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Line, Fuel
8450003-1525
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Conduit, Flex
5521287-08
|
|||
|
Unavailable |
|||
|
#22
Bracket, Radiator Mount, Upper
5246656
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Hose
5413671
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Conduit, Flex
5521794-17
Superseded by 5521794-38
|
$10.99 | ||
|
Unavailable |
|||
|
#25
T-Connector
7052373
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Hose, Lower Radiator
5413673
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Asm., Grommet and Insert
5413155
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Screw
7515179
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Asm., Radiator
1240521
|
$564.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Bracket, Radiator, Lower, Black
5245773-067
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Screw
7517386
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BUSHING-MOUNT,LOWER RADIATOR
5410584
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Valve, Drain
7052296
|
|||
|
Available to order. Add to View Price |
|||
|
#34
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
Hose, Engine, Lower
5413674
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
Retainer, Hose
7042089
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#38
Shroud, Fan
5437845
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
