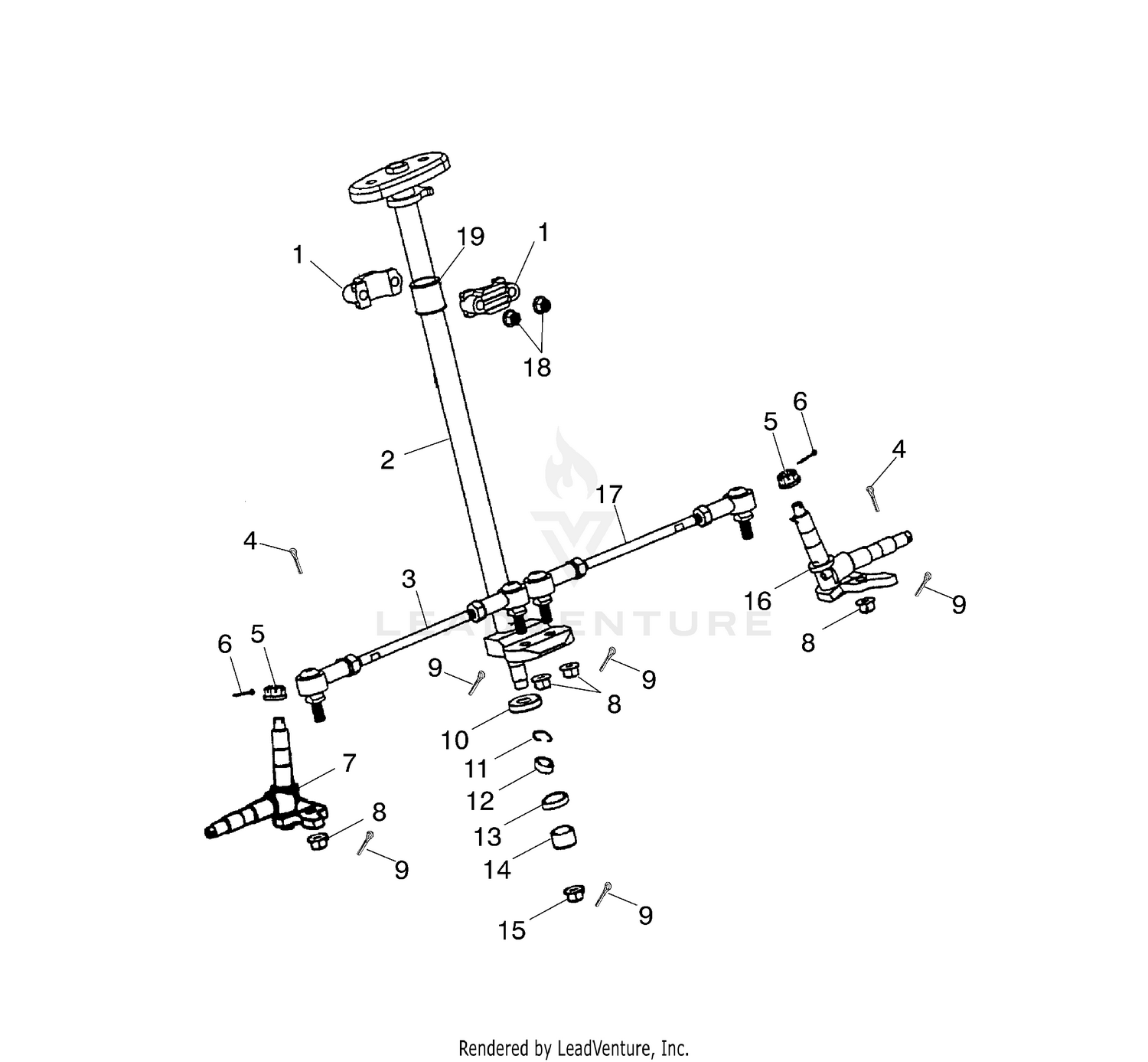

2002 Polaris SPORTSMAN 90 STEERING - A02FA09CA/CB/CC (4970887088B14) OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 Bracket, Upper, Steering Shaft 0450505	$16.49
Available: Ships in 7-12 days. Add to View Price
#2 Shaft, Steering, Black 0450915 Superseded by 0450839-067	$64.99
In Stock: Ready to ship. Add to View Price
#3 Asm., Tie Rod, LH 0450918	$135.49
Available: Ships in 7-12 days. Add to View Price
#4 Pin, Cotter 0450395	$0.99
In Stock: Ready to ship. Add to View Price
#5 Nut, Lock 0450502	$8.49
Available: Ships in 7-12 days. Add to View Price
#6 Pin, Cotter 0450507	$0.99
In Stock: Ready to ship. Add to View Price
#7 Knuckle, LH 0450916	$128.49
Available: Ships in 7-12 days. Add to View Price
#8 Nut, Lock 0450276	$1.99
Available: Ships in 7-12 days. Add to View Price
#9 PIN, COTTER 0450719 Superseded by 0453819	$0.99
Available: Ships in 7-12 days. Add to View Price
#10 Seal, Oil 0450491	$20.99
Available: Ships in 7-12 days. Add to View Price
#11 Circlip 0450161	$4.49
In Stock: Ready to ship. Add to View Price
#12 Bearing, Ball 0450493	$37.99
Available: Ships in 7-12 days. Add to View Price
#13 Seal, Oil 0450389	$10.99
In Stock: Ready to ship. Add to View Price
#14 Spacer 0450390	$3.99
In Stock: Ready to ship. Add to View Price
#15 Nut, Lock 0450878	$9.49
Available: Ships in 7-12 days. Add to View Price
#16 Knuckle, RH 0450917	$128.49
In Stock: Ready to ship. Add to View Price
#17 Asm., Tie Rod, LH 0450919 Superseded by 0450918	$135.49
Unavailable
#18 Nut, Flange 0450268	$0.99
In Stock: Ready to ship. Add to View Price
#19 Sleeve, Steering Shaft 0450499	$16.49
In Stock: Ready to ship. Add to View Price
