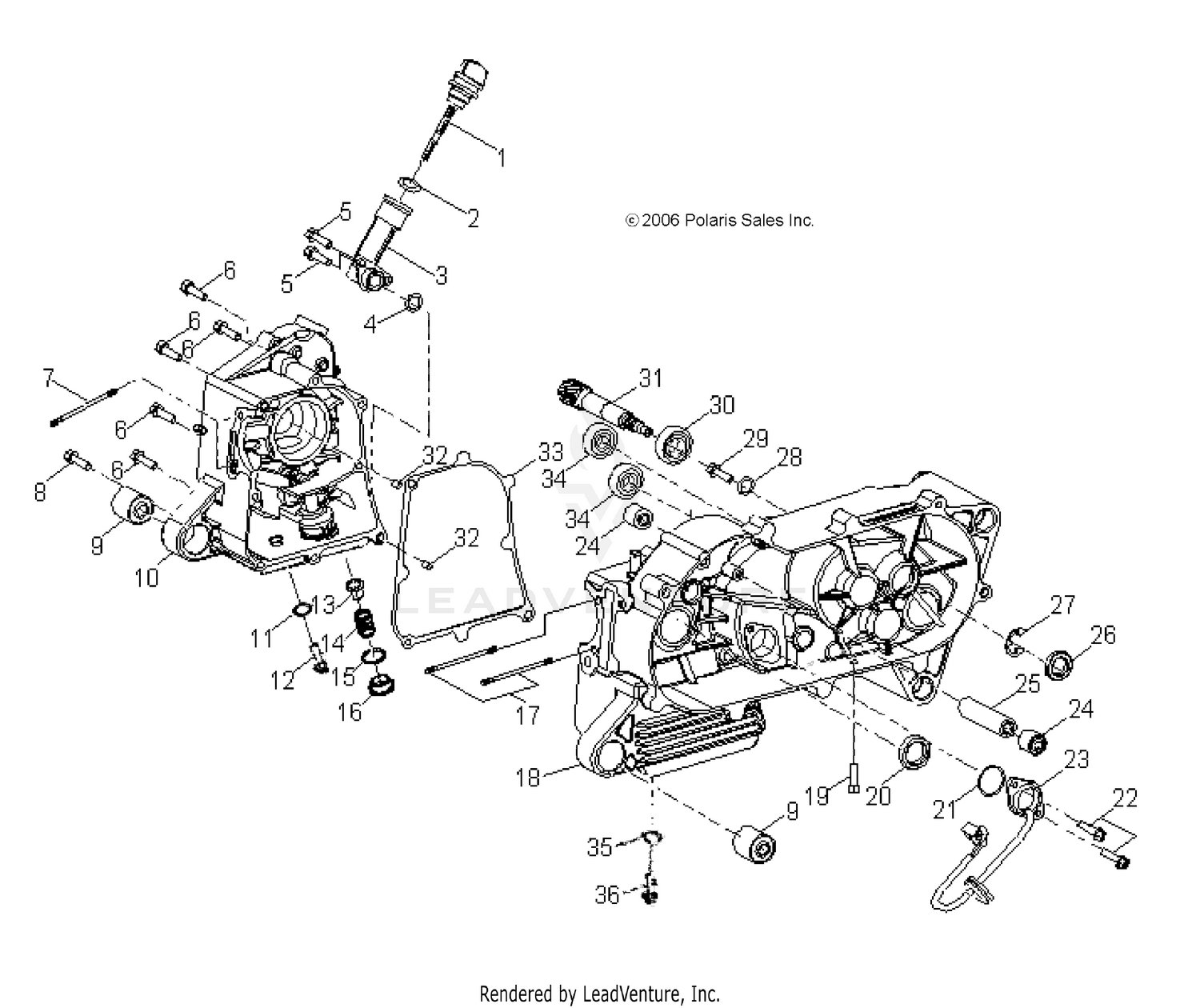

Engine, Crankcase - A09fa09aa/ab (49atvcrankcase07otlw90) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
Asm., Engine, 4 Stroke, w/o Carb
0454106
|
|||
|
Unavailable |
|||
|
#1
Gauge, Oil
0453542
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-Ring
0453508
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Neck, Oil Filler
0453611
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-Ring
0453827
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Bolt
0453519
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Bolt
0453612
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Stud
0453613
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Bolt
0453614
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Bushing, Rubber
0450587
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Crankcase, RH
0453615
|
$279.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Washer, Flat
0452133
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Bolt
0452132
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Screen
0452369
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Spring, Screen
0452370
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
O-Ring
0452371
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Cap, Oil Fill
0452368
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Stud
0453616
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Cover, Clutch
0453330
|
$604.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
0450325
Superseded by 0453669
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Seal, Oil
0453522
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-Ring
0452129
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Bolt
0452138
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Sensor, Gear Position
0452128
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Bushing, Rubber
0451139
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Spacer, Collar
0453617
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Seal, Oil
0450200
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Circlip
0450198
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
Washer, Flat
0453460
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Bolt
0450158
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Bearing
0450199
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Shaft, Drive
0453456
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Pin, Dowel
0452342
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
GASKET-CRANKCASE
0453419
Superseded by 0455333
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Bearing, Ball
0450254
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Washer, Flat
0452133
|
$4.99 | ||
|
Unavailable |
|||
|
#36
Bolt
0452132
|
$5.99 | ||
|
Unavailable |
|||
