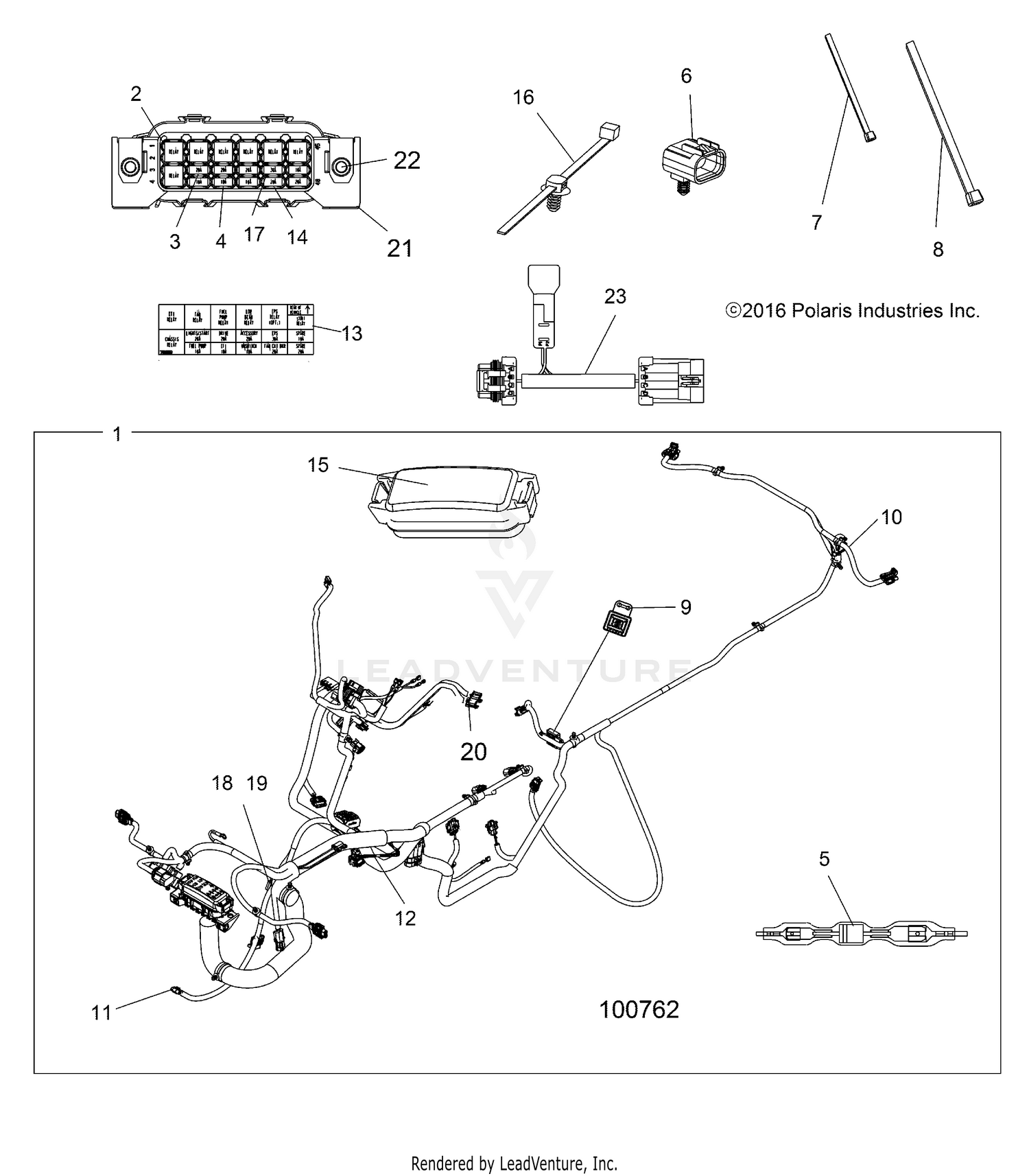

Electrical, Harness - A17sxa85a1/a7/sxe85ab/am/as/a9 (100762) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS-MAIN,SPXP NON-ETC
2413428
|
$1,159.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
HARNESS-MAIN,SPXP NON-ETC
2413823
|
$1,134.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
KIT, HARNESS, ENGINE TEMP
2878496
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
KIT, HARNESS, TPS
2878498
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RELAY-SPST,12V,20A,EPXY,HFA
4011283
Superseded by 4016819
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE, 20 MINI BLADE 58V
2434017
Superseded by 4012811
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
FUSE-IGNITION,10 AMP
2434016
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
DIODE, 6AMP
2411035
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
MODULE, RESISTOR
4014055
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, TAILLIGHT, LED W/CLIP
4016259
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, WINCH CONTACTOR
4014891
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
KIT, FUSIBLE LINK, .8 MM
2202607
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
KIT, FUSIBLE LINK, 1.0 MM
2202670
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
LABEL, FUSE BOX
7185159
|
|||
|
Available to order. Add to View Price |
|||
|
#14
BREAKER-CIRCUIT,20 AMP
4011372
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, FUSEBOX
4015011
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL, FUSE CENTER
5415598
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
FUSE-MAIN,30 AMP
2434015
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CONNECTOR, CAP, EPS POWER
4014236
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CONNECTOR, CAP, EPS SIGNAL
4014235
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP, WINCH SWITCH
4014890
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BASE, FUSEBOX
4015457
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
7518914
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
HARNESS-JUMPER,TAILLIGHT
2413796
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
