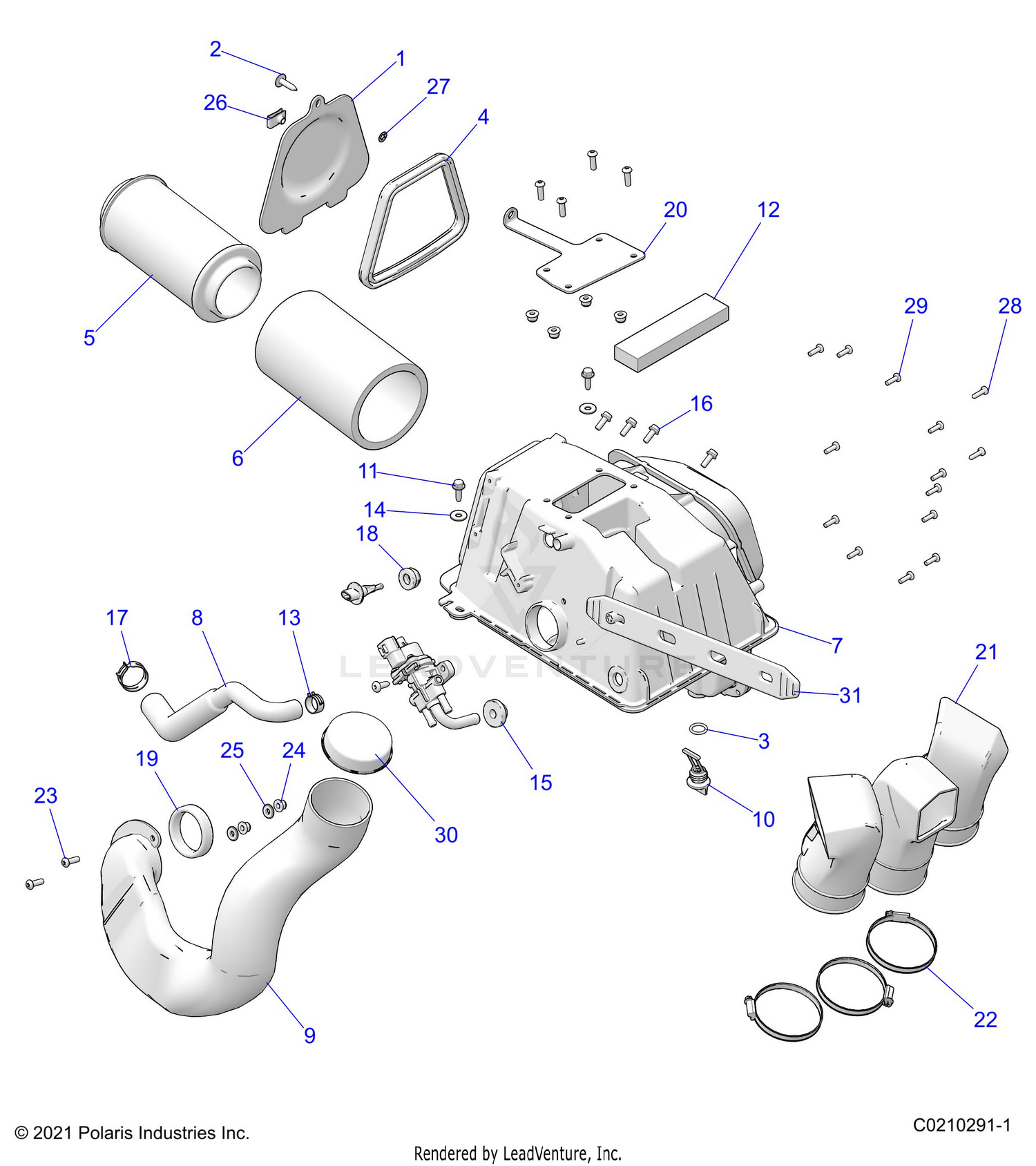

Engine, Air Intake - A24sxn85a4 (c0210291-1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, AIRBOX
5261827
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCR-1/4-20X1.00 TR/TX-M
7517685
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
O-RING
5414246
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, AIRBOX COVER
5814345
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
FILTER, AIR INTAKE
7082101
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
FILTER-HD AIR INTAKE, 208MM
7083114
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Filter, Pre-Cleaner, Sleeve
5811633
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ASM-AIR INTAKE,BOX W/RUNNERS
1240953
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, BREATHER, TWIN
5414322
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DUCT-AIR INLET,FRONT
5452407
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG, AIR BOX
5451429
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
FOAM-CAB,SGUARD,254X38.1X19.05
5813409
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP-HOSE,SPRING .81
7081026
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-FL .281X.750X.062-Y
7555859
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
GROMMET, SUPPORT, TRUNK
5413423
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW-SOCFLGHD,M6X1.0X16
7518803
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRINGBAND-CLAMP 29/12,BLK
7080842
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET, AIR TEMPERATURE SENSOR
5436346
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL-AIRBOX,INTAKE DUCT
5814346
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE-CLOSEOUT
5261826
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOOT-AIR NTAKE
5415531
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP-BAND,NARROW 70-90MM
7081279
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCR-M6X1.0X20MM,TX,PH,8.8-B
7518546
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT-HXFL-M6X1.0 8 ZTB NYL
7548027
|
$1.99 | ||
|
Unavailable |
|||
|
#25
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT-CHIMNEY 1/4-20,GR-5
7670096
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
RETAINER-BOLT,1/4-20
7670154
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW-#10X3/4-HI/LO-PN-T25,TRX-M
7512026
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
SCREW-10X5/8-HI/LO,PN-T25,TRX-M
7518238
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CAP-PLUG T-53
5452777
|
$3.99 | ||
|
Unavailable |
|||
|
#31
STRAP, ECU
5414193
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
