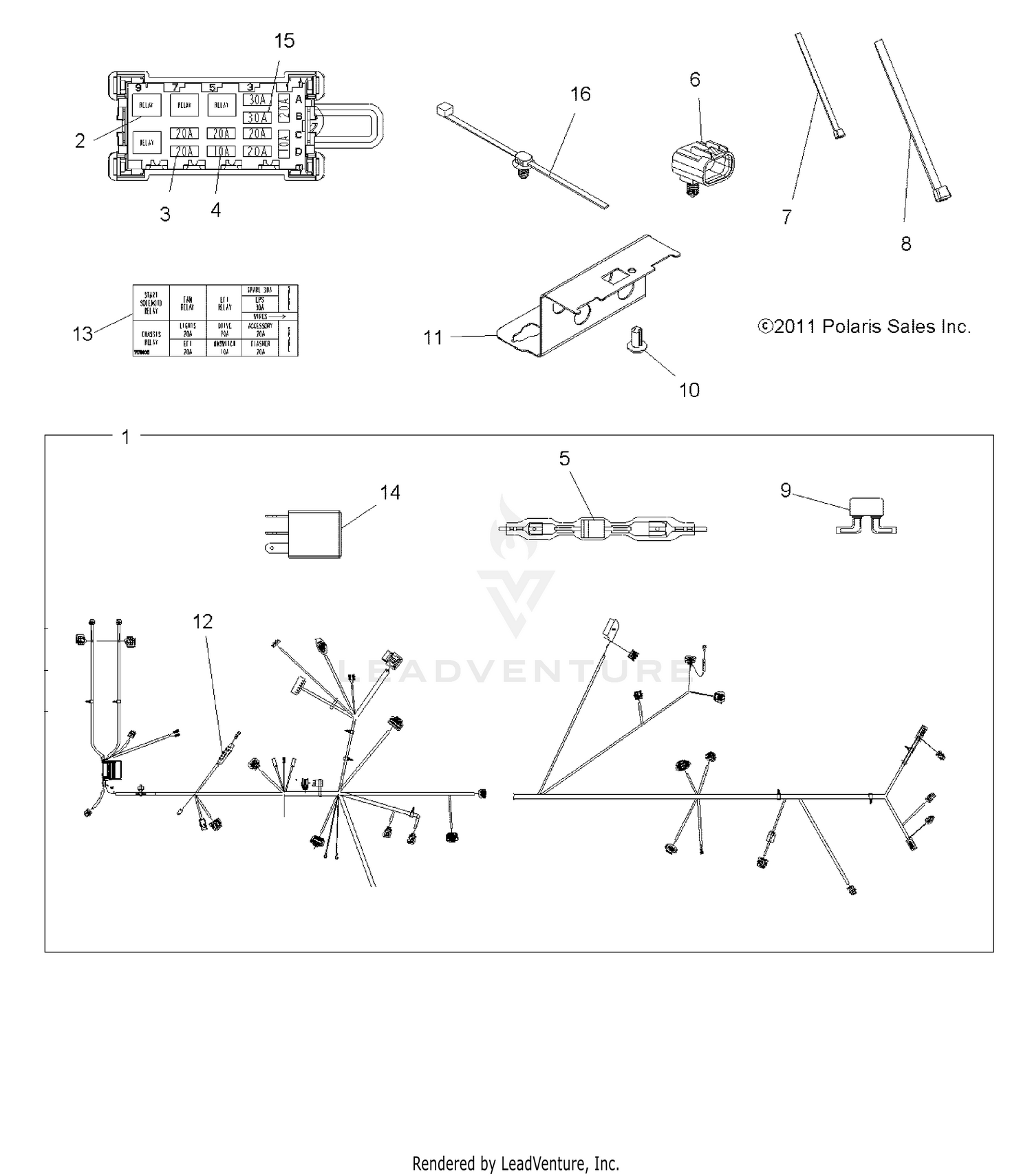

Electrical, Harness - A12zn8efk/efo (49atvharness12sp850f) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
Kit, Harness, Resistor Module
2204890
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Harness, Main
2411734
|
|||
|
Unavailable |
|||
|
#1
COVER-RELAY/FUSE CENTER
5438758
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Kit, Harness, TPS
2878498
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RELAY-SPST,12V,20A,EPXY,HFA
4011283
Superseded by 4016819
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE, 20 MINI BLADE 58V
2434017
Superseded by 4012811
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
FUSE-IGNITION,10 AMP
2434016
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Diode, 6AMP
2411035
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BREAKER-CIRCUIT,20 AMP,SEALED
2410881
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Clip, Push On
7670125
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Bracket, Fuse Block
5253502
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Kit, Fusible Link, .8 mm
2202607
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Kit, Fusible Link, 1.0 mm
2202670
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Label, Fuse Box
7175636
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Kit, EPS Relay, Repair
2204853
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
FUSE-MAIN,30 AMP
2434015
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
