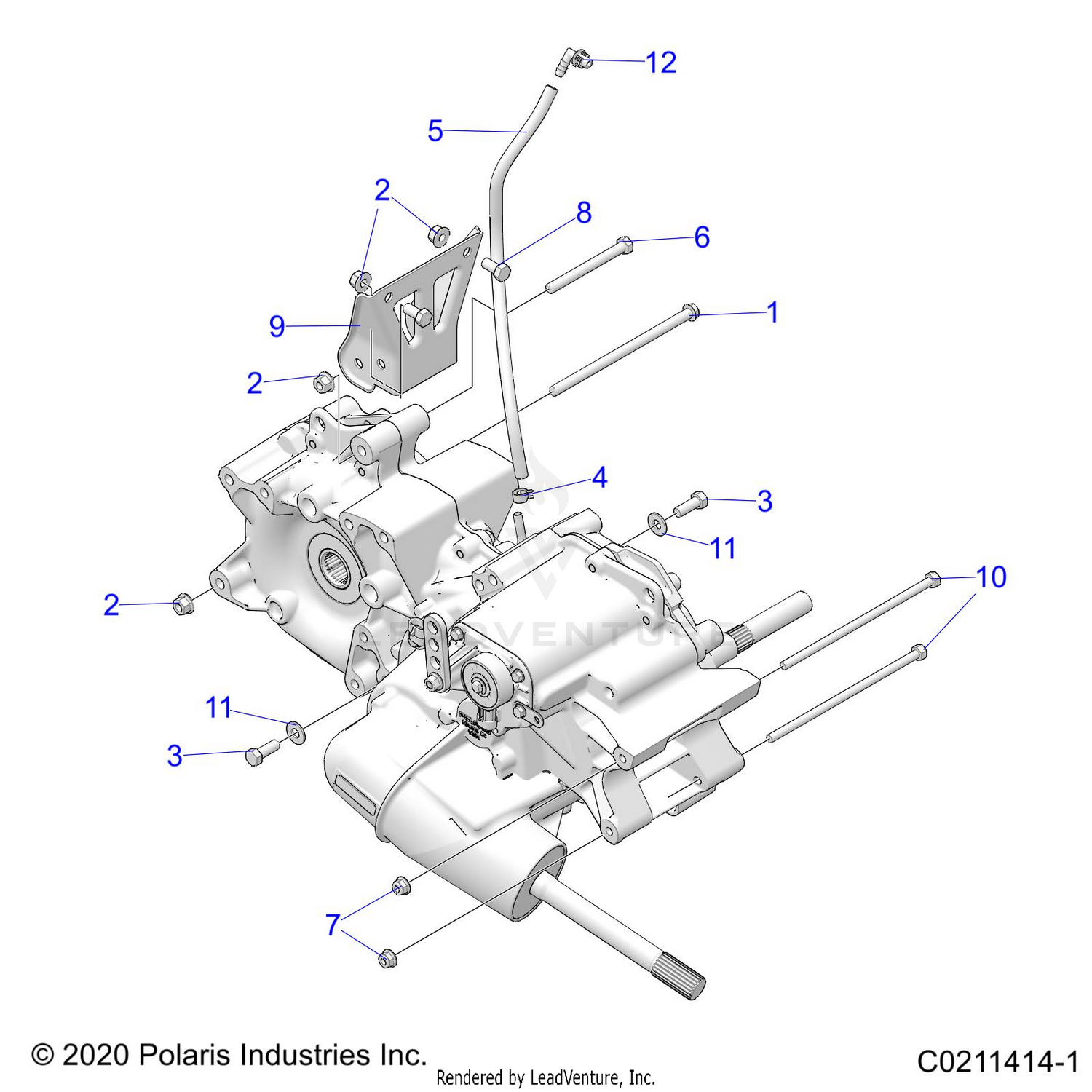

Drive Train, Main Gearcase Mounting - A21seg57a1/a3/a5 (c0211414-1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT-3/8-16X7 HX FLNG GR5-Y
7518365
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT-FLANGED,3/8-16 NYLON-Z
7547180
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
SCREW
7518006
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP-HOSE, 17/32, GREEN
7081432
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
FUEL LINE-26 CENTIMETERS
8450040-26
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
7517646
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT-5/16-18 HX FLG NL-Y
7542343
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT(10)
7515522
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SUPPORT, TRANSMISSION, UPPER, BLACK
5254309-329
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCR-5/16-18X7.5,HXCP,GR,Y
7518648
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER-.385X.88X.075,FL-Y THR
7556242
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FITTING-VENT LINE,RND,90,1/4"
5453906
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
