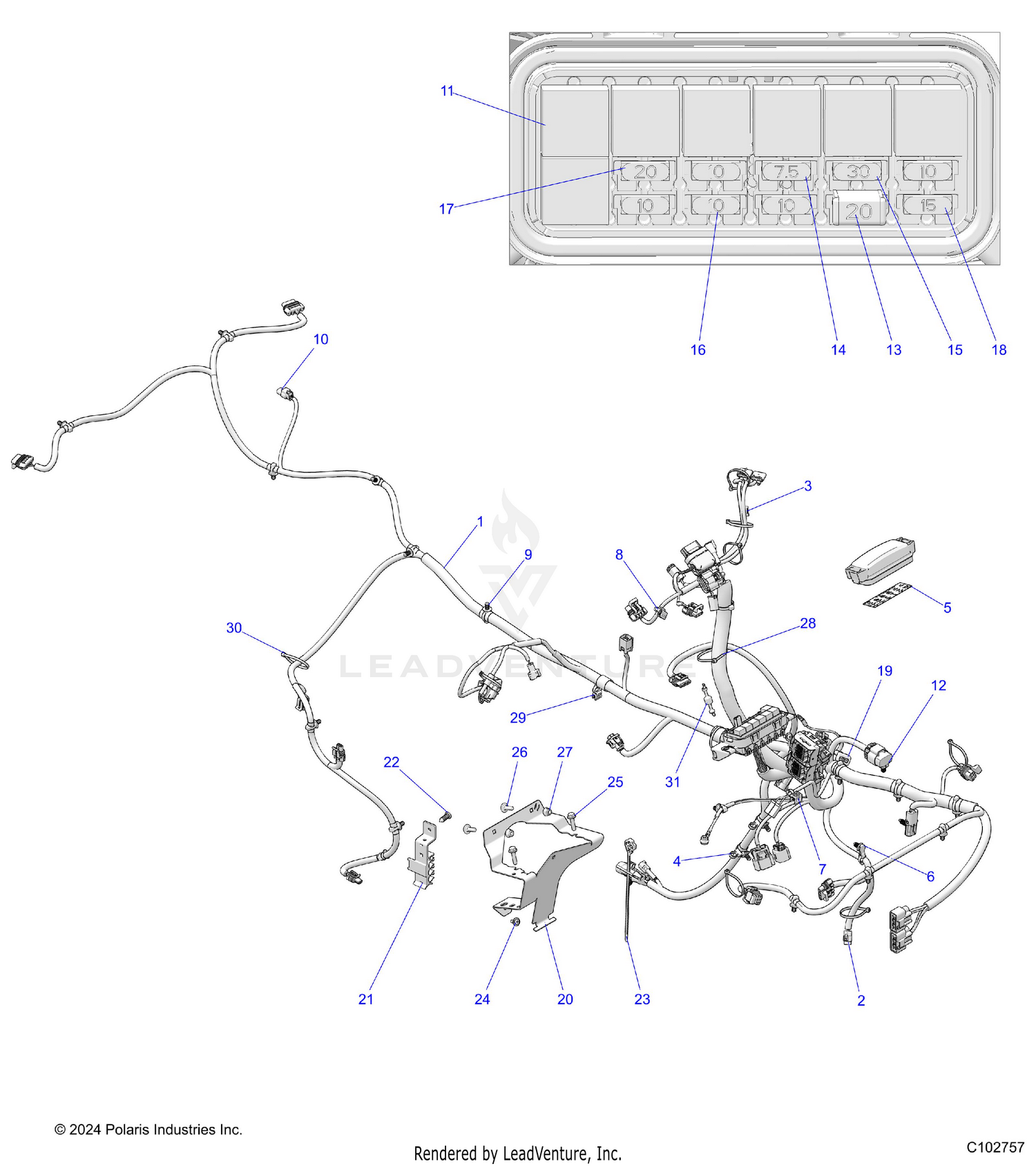

Electrical, Main Wire Harness - A22shz57ae (c102757) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARN-MAIN,SPMN,LED,PREM
2416122
|
$1,549.99 | ||
|
Unavailable |
|||
|
#2
CONNECTOR-CAP, WINCH CONTACTOR
4014891
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CONNECTOR-CAP, WINCH SWITCH
4014890
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE-TIE,7-46MM,DUAL-LOOP
7081033
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
LABEL-FUSE BOX
7300335
|
|||
|
Available to order. Add to View Price |
|||
|
#6
CLIP-FIR TREE,12.5MM OFF,90DEG
7082406
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP-EDGE, 3-6MM THICKNESS
7082404
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP-EDGE, 1-3mm THICKNESS
7082402
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP EVAP CONNECTOR
4018066
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
RELAY-SPST,12V,20A,EPXY,HFA
4016819
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BREAKER-CIRCUIT,20 AMP
4011372
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUSE - 7.5, MINI BLADE (BROWN)
4011068
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
FUSE-MAIN,30 AMP
2434015
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
FUSE-IGNITION,10 AMP
2434016
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
FUSE, 20 MINI BLADE 58V
2434017
Superseded by 4012811
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
FUSE-15AMP,MINI BLADE
4010859
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
DIODE - 6 AMP, 1/4, 3/16 TERM
2410000
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRKT-FUSE BLOCK,BLK
5268539-067
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP-ROUTING,MIDFRAME
5457074
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP-XMAS TREE, .945 X .228
7670101
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CABLE-TIE,M10X1.5 STUD MNT
7082649
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCR-10-24X1/2, PHTXTRIRD, SEMS-Y
7512084
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, RH CARRIAGE
7519249
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT-M6 FLANGE,NYLOC
7547274
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP-EDGE,1-3MM,6-45MM,SERT.
7081808
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
DIODE - 6 AMP, 1/4, 3/16 TERM
2411035
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
