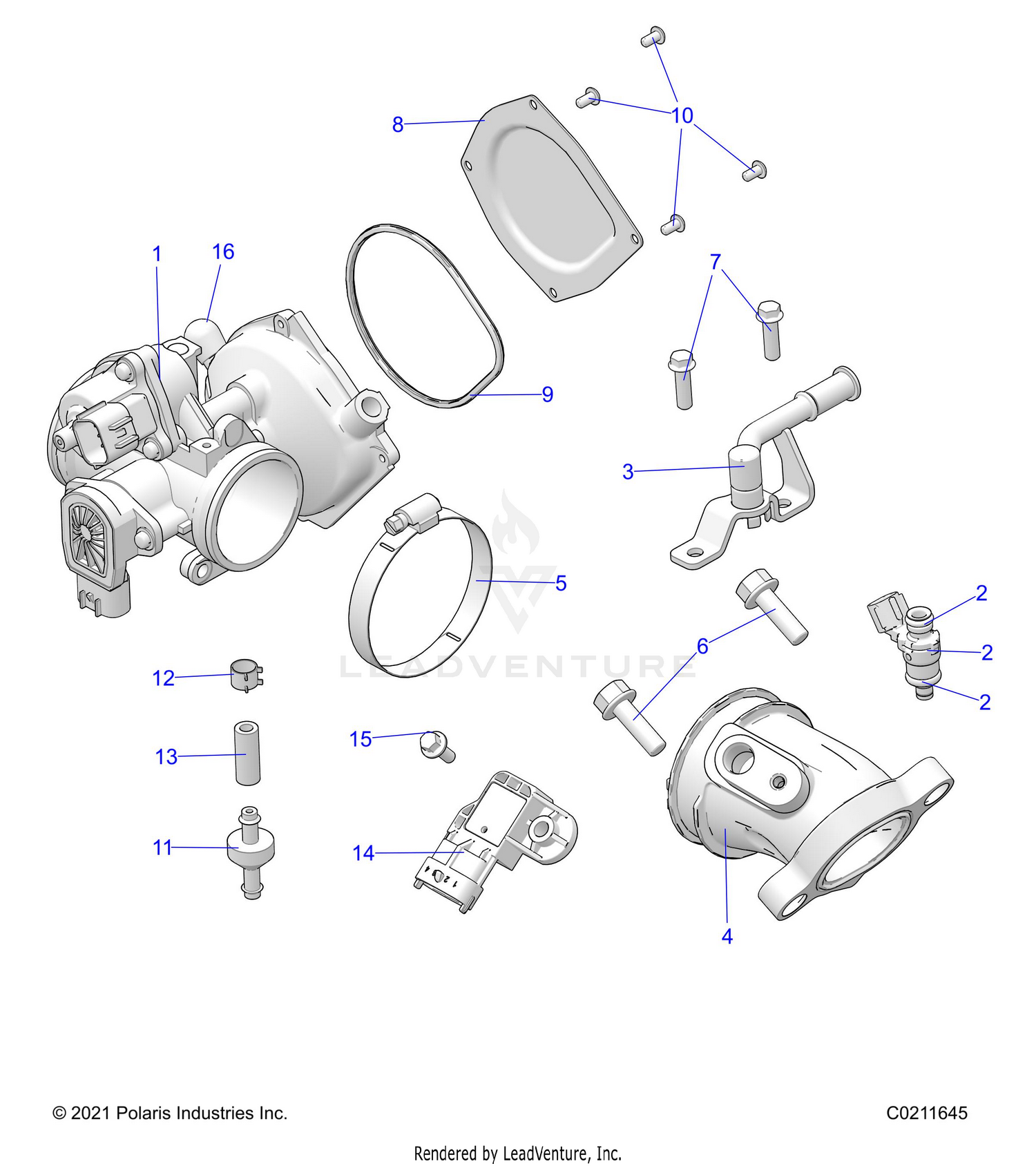

Engine, Throttle Body And Fuel Rail - A24shy57al/an (c0211645) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-THROTTLE BODY,ATV,MIKUNI
1205009
|
$454.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Screw
3131628
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
SENSOR, THROTTLE POSITION
3131705
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
INJ-FUEL,SE
2521796
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING BOSCH,EV-SE,UPPER
5416412
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING BOSCH,EV-SE,LOWER
5416413
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RAIL-FUEL,1CYL
2521795
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ADAPTER-THROTTLE BODY,MECH
5415524
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP-WORM GEAR,44-70MM,HOSE
7081623
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCR-M8X1.25X25-HX/FL-Y/D
7516734
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER-THROTTLE BODY
5259059
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET-TB HOUSING
5415104
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
7519292
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE, CHECK
7052038
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP-HOSE, (LARGE GREEN)
7080307
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
FUEL LINE-2.5 CENTIMETERS
8450003-025
|
|||
|
Unavailable |
|||
|
#14
SENSOR-TMAP DSS3-TF
2411528
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCR-HXFL-M5X0.8X14 18-8
7516603
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCR-M6X1.0X50.0 HX/FL-Y/D
7520078
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
