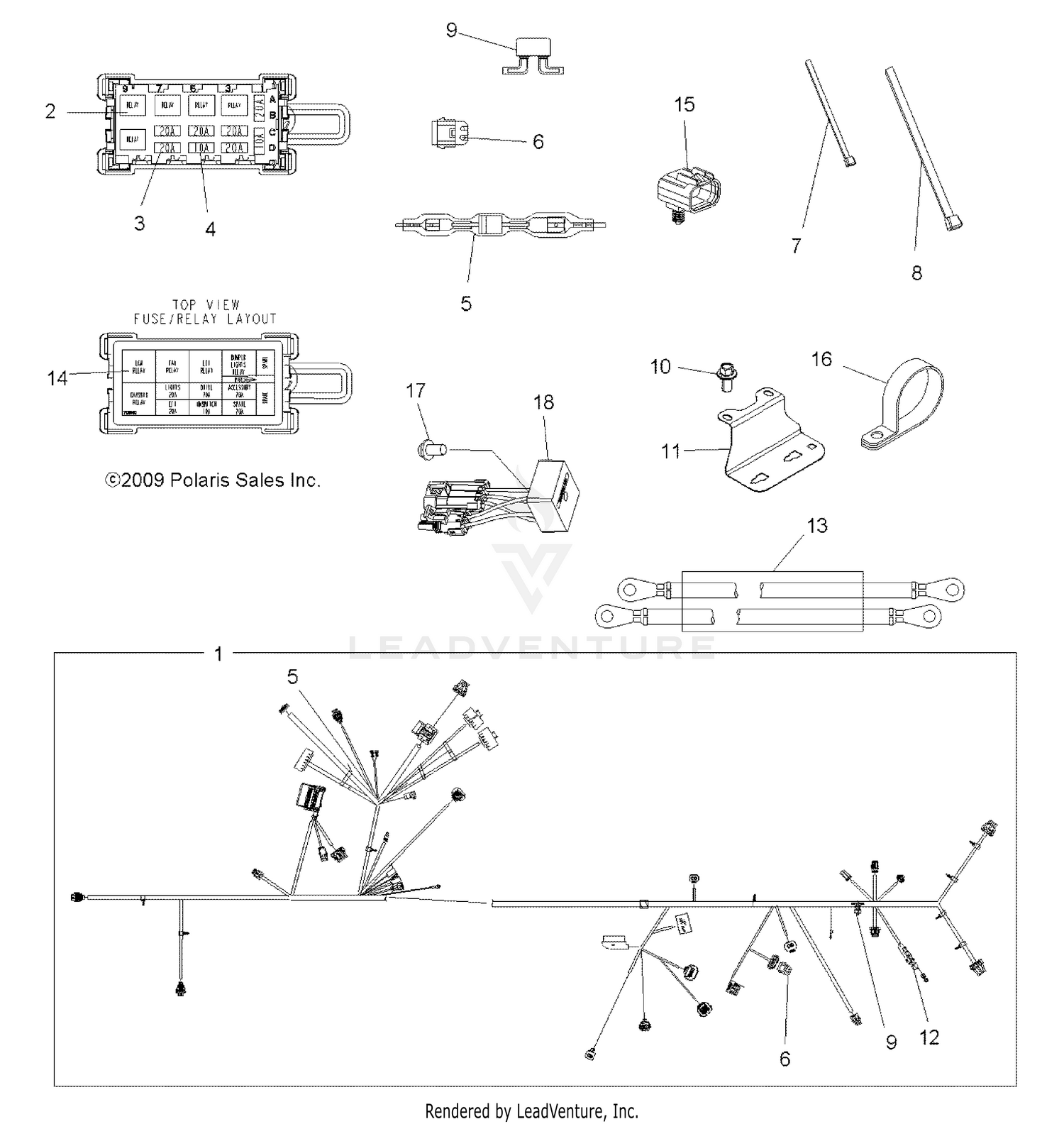

Electrical, Harness - A10tn55al/ax (49atvharness10spxpx2550) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Harness, Main
2411414
|
$929.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Kit, Harness, TPS
2878498
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RELAY-SPST,12V,20A,EPXY,HFA
4011283
Superseded by 4016819
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE, 20 MINI BLADE 58V
2434017
Superseded by 4012811
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
FUSE-IGNITION,10 AMP
2434016
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Diode, 6AMP
2411035
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Kit, Harness, Resistor Module
2204890
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Breaker, Circuit, 8 AMP, Sealed
2411228
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Screw
7518513
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Bracket, Mount, Fuse Block
5250452
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
Kit, Fusible Link, .8 mm
2202607
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Kit, Fusible Link, 2.0 mm
2203632
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Harness, Winch, Pre-Wire
2411209
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Label, Fuse Box
7175140
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CLAMP-HOSE
7080807
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Screw
7518418
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Relay, Solid State, 9 AMP
4012829
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
