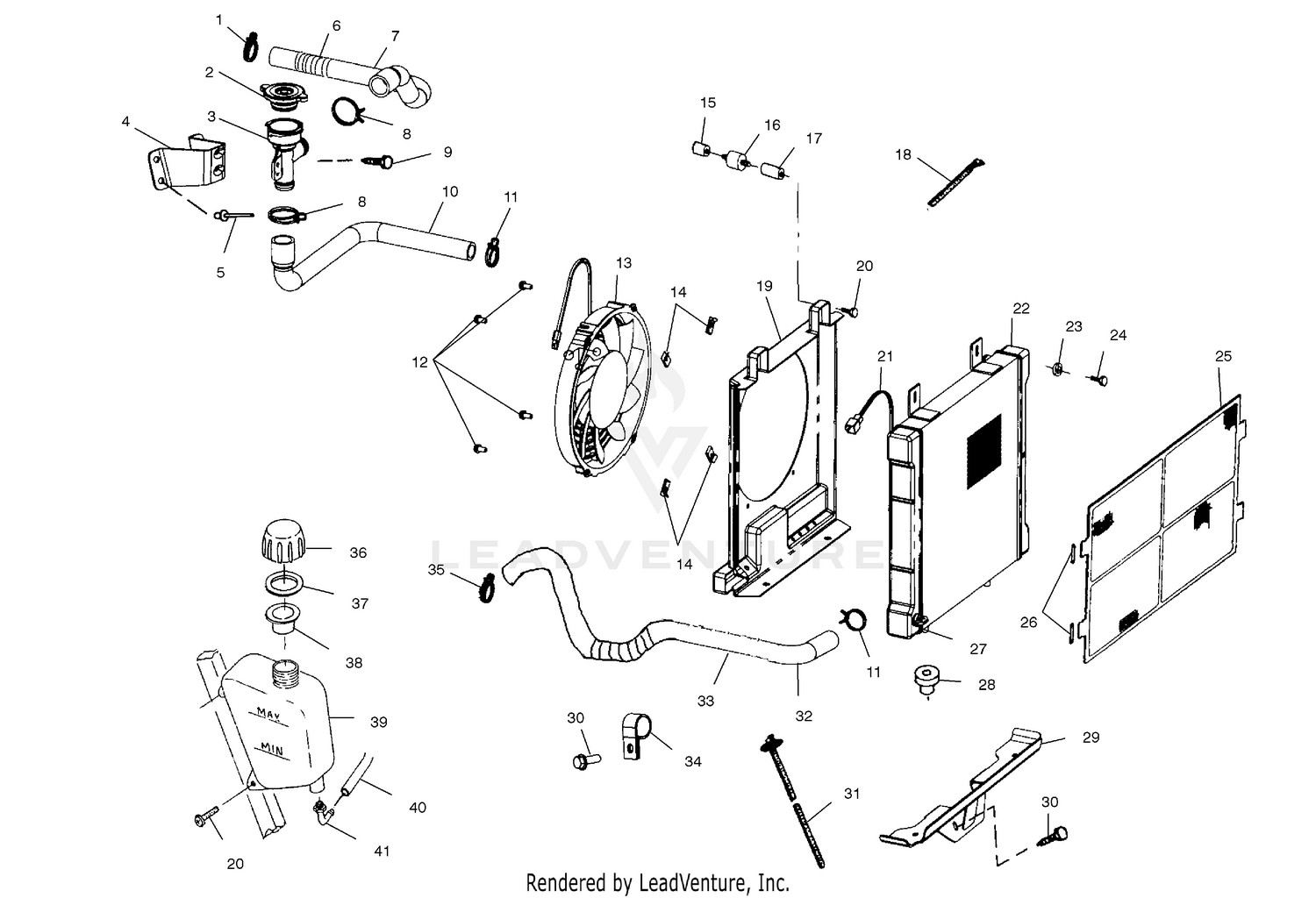

Cooling System - A01ch50ad (4960026002a010) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP-HOSE
7080807
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, PRESSURE
1240044
Superseded by 1240508
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FILLER-REMOTE COOLANT
5433364
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRKT,REMOTE COOLANT FILL
5243505-067
|
|||
|
Unavailable |
|||
|
#5
RIVET-3/16-.090-.290
7661637
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
FLEXGUARD-PLASTIC GUARD
5433948
|
|||
|
Unavailable |
|||
|
#7
HOSE,UPPER ENGINE
5411783
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, SPRINGBAND, BROWN
7080827
Superseded by 7080843
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT(10)
7512232
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
HOSE,FILLER NECK
5411632
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP-ROTO CLIP
7080826
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
7517659
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FAN&MOTOR,ASM,SPAL
2410123
|
$225.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP,U,ZY
7670111
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUTSERT,HEX(10)
7547069
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
MOUNT, RUBBER
3110032
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER, MOUNT
5020572
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SHROUD-FAN,ATV
5433059
|
|||
|
Available to order. Add to View Price |
|||
|
#20
SCREW(10)
7512084
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SENSOR-THERMAL/HARNESS
4010161
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RADIATOR
1240045
Superseded by 1240533
|
$494.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER(10)
7552605
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW(10)
7512113
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER-RADIATOR,W/MESH
5433317
|
$44.19 | ||
|
Available to order. Add to View Price |
|||
|
#26
O RING
5410607
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
VALVE-PLASTIC RAD/COOLER DRAIN
7052296
|
|||
|
Available to order. Add to View Price |
|||
|
#28
BUSHING-MOUNT,LOWER RADIATOR
5410584
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BRKT,RADIATOR,LOWER,BLK
5243503-067
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW,(10)
7517386
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
STRAP-PANDUIT,PANEL TIE
7080890
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOSE,LOWER ENGINE
5411782
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Conduit, Flex
5521550
Superseded by 5521793-51
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Clamp, Coated
7080851
Superseded by 7080908
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP,HOSE,1.25,WORM DRIVE
7080696
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CAP-OVER FLOW BOTTLE,DRILLED
5430743
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
TANK-SURGE
5431673
Superseded by 5436936
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
FITTING,90 DEGREE
7052065
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
