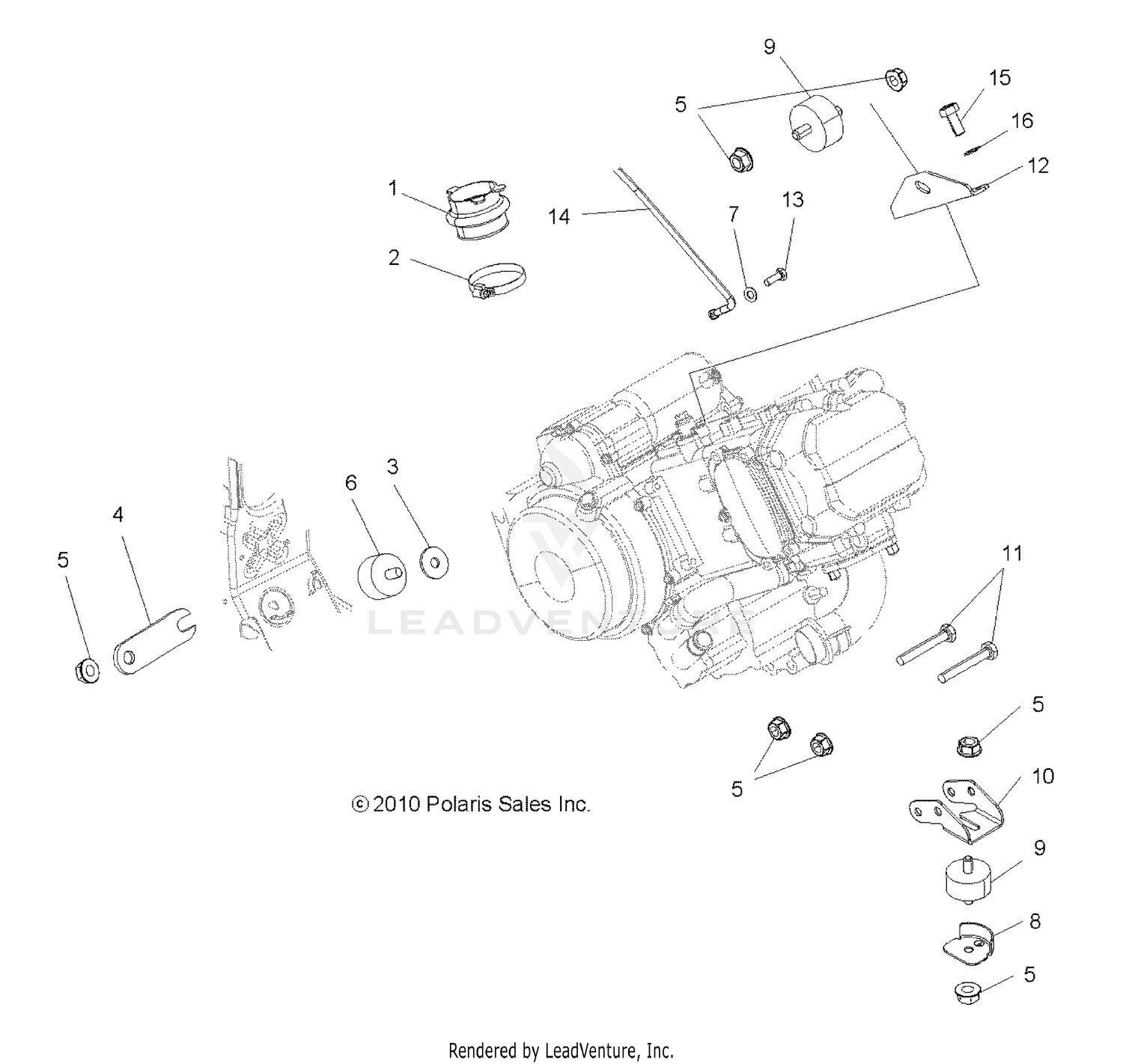

Engine, Mounting & Long Block - A14mb46th (49atvenginemtg11sp500) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
Engine, Short Block, EH460PLE031/40/50
3090295
|
|||
|
Unavailable |
|||
|
#1
BOOT, CLUTCH INTAKE
5412487
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP, NARROW BAND
7080511
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, FLAT
7555815
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STRAP, FRAME SUPPORT, BLACK
5224658-067
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
7547108
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ISOLATOR
3022076
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, FLAT
7558301
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BRACKET, TORQUE STOP
5245043
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ISOLATOR-3/8-24M/M,60DURO
3022071
Superseded by 3023593
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
MOUNT, ENGINE, FRONT
5254430
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
7518415
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, MOUNT, ENGINE, TOP
5242674
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#13
ASM., BOLT AND WASHER
3082038
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CABLE, FRAME/ENGINE
4010895
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
7512315
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, SPRING LOCK
7552901
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
