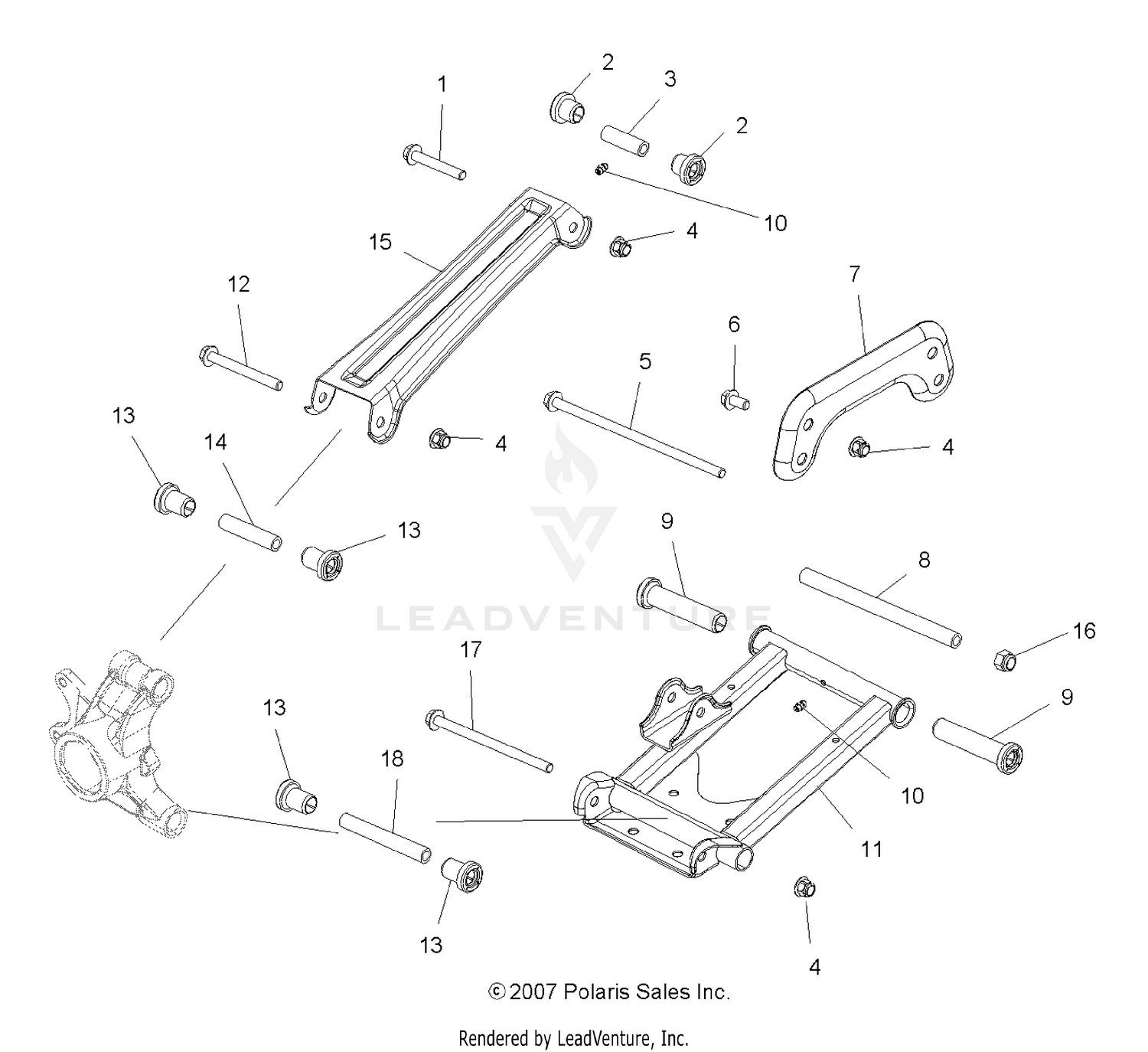

Suspension, Rear - A09lh46aq/ax/az (49atvsusprr08sp400) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Screw, Flange
7518473
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Bushing, X-Short, Grey
5436971
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Tube, Pivot
5135495
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Nut, Flange
7547313
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Bolt, Flange
7518472
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Bolt
7518700
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Bracket, Support, Rear Suspension, Black
5249760-067
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Tube, Pivot
5135494
|
$20.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
Bushing, A-Arm, Long
5436973
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Fitting, Lubrication
7080433
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Arm, Control, Rear, Black, LH
1016211-067
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Arm, Control, Rear, Black, RH
1016212-067
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Screw, Flange
7518468
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BUSHING, A-ARM., SHORT, BLACK
5436972
Superseded by 5439270
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Tube, Pivot
5135493
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Arm, Control, Upper, Black, LH
5249046-067
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Arm, Control, Upper, Black, RH
5249047-067
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Nut, Nylok
7547385
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Bolt
7518668
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Tube, Pivot
5135637
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
