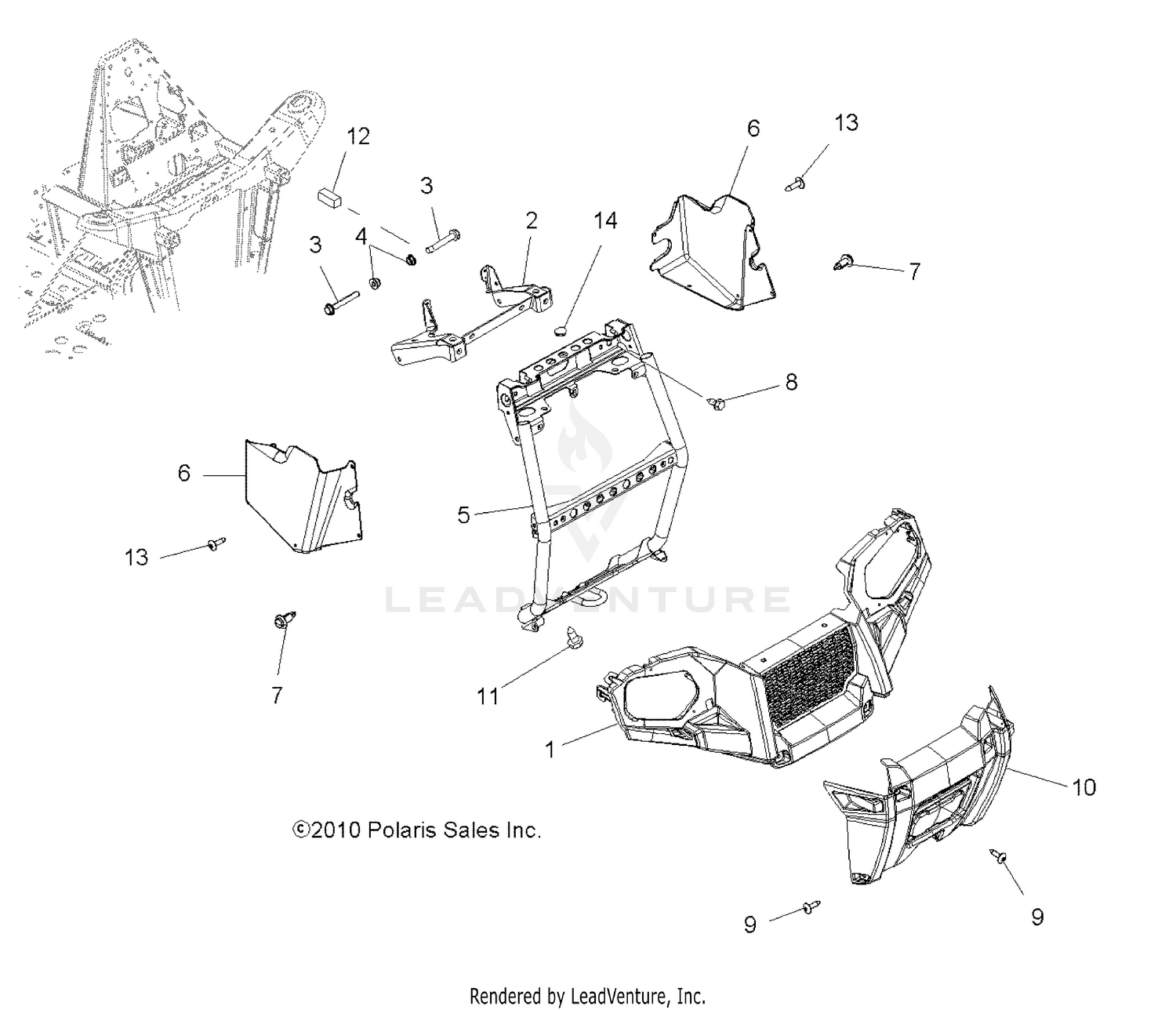

Body, Front Bumper And Mounting - A11mh46ax/az (49atvbumper11sp500) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Bumper, Front, Black
5438559-070
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, RADIATOR, UPPER, BLACK
5254310-329
Superseded by 5255572-329
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Bolt, Flange
7518341
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT-5/16-18 HX FLG NL-Y
7542343
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
FRAME, BUMPER, BLACK
1017743-067
Superseded by 1018374-067
|
$774.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Shield, Side, Radiator, LH
5438689
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Shield, Side, Radiator, RH
5438690
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Rivet
7661855
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Screw
7517386
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Screw
7517685
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Cover, Radiator Access, Black
5438557-070
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Screw
7515399
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
Plug, Frame
5810467
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Screw
7519092
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Plug, Hole, Rubber
5411009
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
