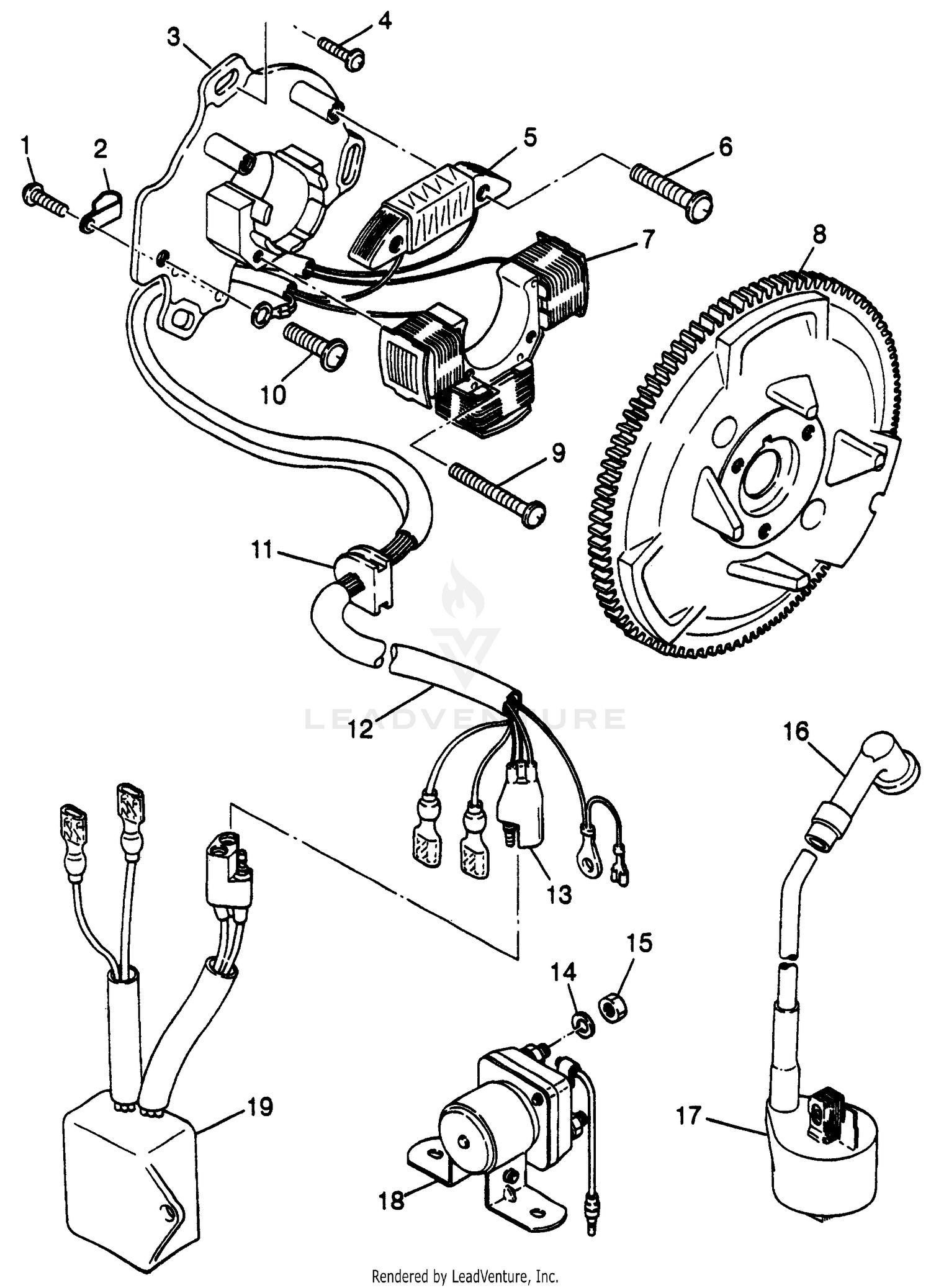

1997 Polaris SCRAMBLER 400L MAGNETO Scrambler 400L W97BC38C (4939893989D007) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW&WASHER ASM(10)
3081256
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
CLAMP
3081146
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE ASM.
3084785
|
|||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, COIL
3084786
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, FLANGE
3084766
|
|||
|
Available to order. Add to View Price |
|||
|
#5
COIL, EXCITING
3083422
|
|||
|
Unavailable |
|||
|
#6
SCREW & WASHER
3083423
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
STATOR #1 Substituted by 3084785
3084788
|
|||
|
Unavailable |
|||
|
#8
FLYHEEL,W/RING GEAR
3084784
|
|||
|
Available to order. Add to View Price |
|||
|
#9
SCREW&WASHER ASM(10)
3081342
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SCREW&WASHER,(10)
3081260
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GROMMET
3084789
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
HARNESS, WIRE
3084787
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COUPLER
3083909
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER SPRING(10)
3080077
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
NUT
3083073
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CAP SPARK PLUG,(10)
4020129
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COIL, IGNITION *
3083923
|
|||
|
Available to order. Add to View Price |
|||
|
#18
Switch, Magnetic
3085521
Superseded by 4011335
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CDI SYSTEM
3084790
|
|||
|
Unavailable |
|||
