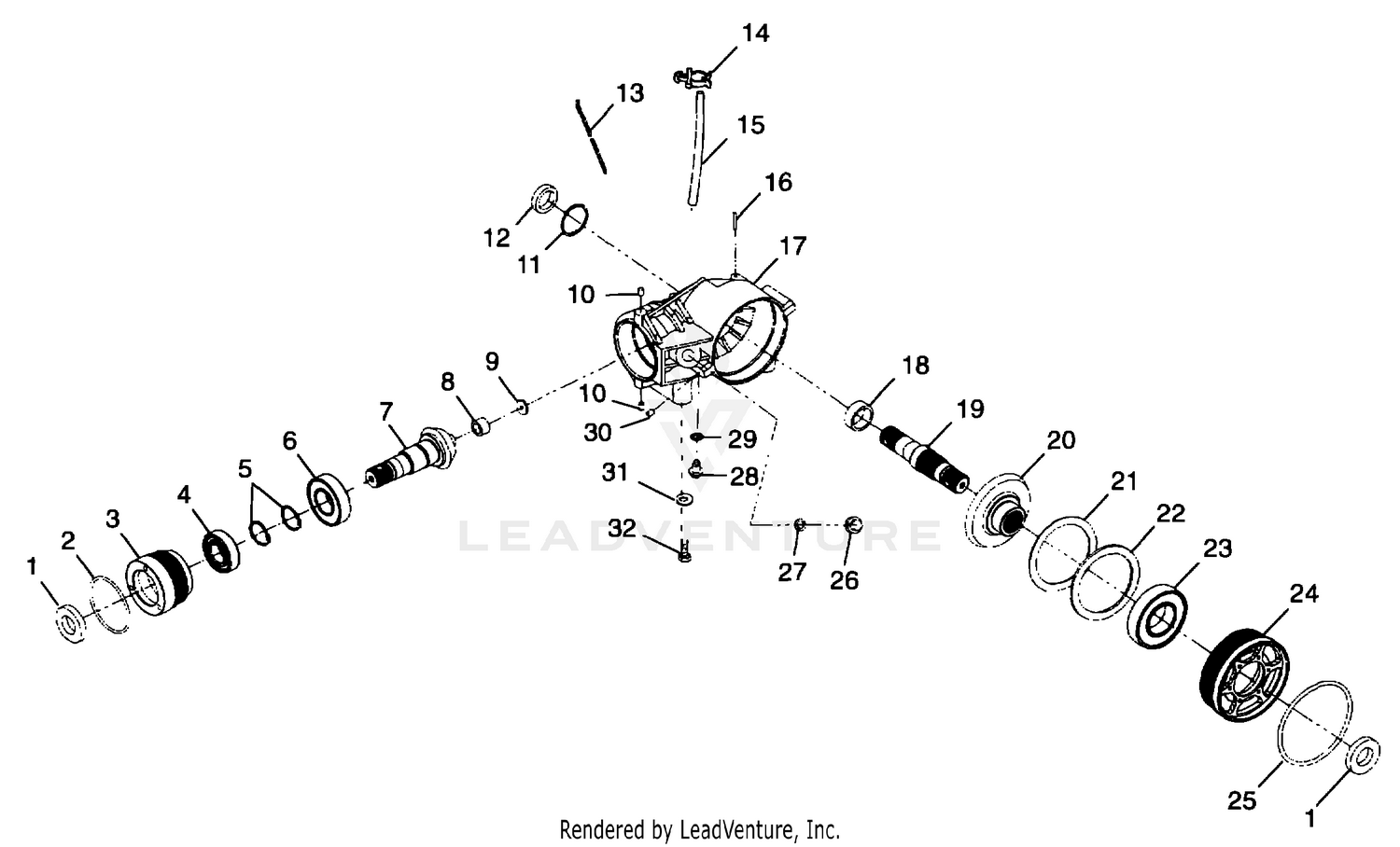

Front Housing - A99bg38ca (4949664966b003) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Seal, Triple Lip
3233248
Superseded by 3233788
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
3233315
|
|||
|
Unavailable |
|||
|
#3
COVER,F.HSG INPUT
3233316
|
|||
|
Unavailable |
|||
|
#4
BEARING, BALL, 6205 C3 25X52X15
3233019
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING,RETAINING
3233306
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
3233020
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT,INPUT,FRONT HSG.
3233489
|
|||
|
Unavailable |
|||
|
#8
BEARING,NEEDLE
3233479
|
|||
|
Unavailable |
|||
|
#9
WASHER
3233480
|
|||
|
Unavailable |
|||
|
#10
SCREW SET
3233522
|
|||
|
Unavailable |
|||
|
#11
RING,RETAINING
3233320
|
|||
|
Unavailable |
|||
|
#12
SEAL
3233319
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CLAMP,WIRE ROUTING(10)
7080409
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
|
$89.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
TUBE,VENT
3233524
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOUSING,FR.GEARCASE
3233523
|
|||
|
Unavailable |
|||
|
#18
BEARING,NEEDLE
3233326
|
|||
|
Unavailable |
|||
|
#19
SHAFT,O/P,FR.HSG.
3233327
|
|||
|
Unavailable |
|||
|
#20
GEAR,31T,FRT.HSG.
3233328
|
|||
|
Unavailable |
|||
|
#21
WASHER,THRUST
3233346
|
|||
|
Unavailable |
|||
|
#22
WASHER,THRUST
3233347
|
|||
|
Unavailable |
|||
|
#23
BEARING,BALL
3233329
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER,FR.HSG,OUTPUT
3233330
|
|||
|
Unavailable |
|||
|
#25
O-RING
3233331
|
|||
|
Unavailable |
|||
|
#26
Plug
3233325
Superseded by 3233711
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER
3233324
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Plug
3233253
Superseded by 3233777
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLUG, WASHER
3233254
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
RIVET
3233463
|
|||
|
Unavailable |
|||
|
#31
WASHER(10)
7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW(10)
7512492
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#
GEARCASE,FRONT,ASM.
1341265
Superseded by 1341323
|
$1,264.99 | ||
|
Available to order. Add to View Price |
|||
