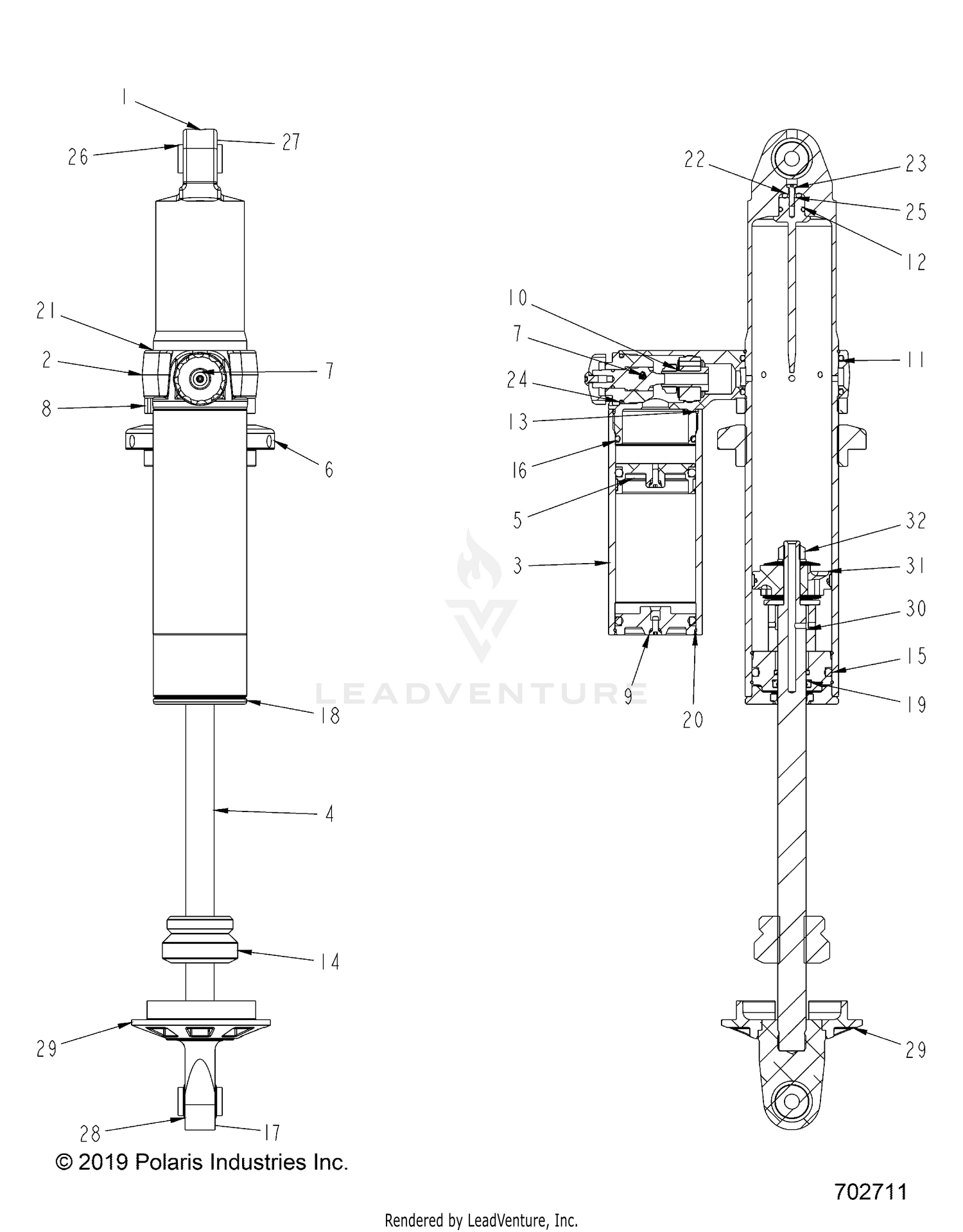

Suspension, Rear Shock Internals - Z25nmf99a4/a5/b4/b5 (702711) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
SHOCK-REAR,MP
7045915
|
$949.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
BODY, 2.5 CO, IMP EXT
-------
|
|||
|
Unavailable |
|||
|
#2
2.5 BRIDGE, WER ADJUSTER
1800958
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
2.5in 6.0L PB RES CAN WR
-------
|
|||
|
Unavailable |
|||
|
#4
SHAFT, NEEDLE, .750 X 13.545L
-------
|
|||
|
Unavailable |
|||
|
#5
RES, PISTON 2.5IN ASM
1800752
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
2.5IN SPRING NUT (CLEAR)
1800836
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ASM. SS RETENTION NUT (GOLD)
1800857
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
2.5IN CROSSOVER RING/ JAM NUT
1800842
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
2.5 END CAP WITH BUILT IN CHARGE PORT
1800960
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
VALVE, CHECK ASSEMBLY
1800848
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING 2-230
1800497
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING 2-112
1800095
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
O-RING 2-033
1800613
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
1.25 BUMP STOP LG
1800593
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING 2-327
1800508
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING 2-225
1800500
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHAFT LOOP, I. 0935 BORE BRNG STEP, 2. 930L
-------
|
|||
|
Unavailable |
|||
|
#18
WIPER CAP ASSEMBLY, 2.5, .75 SHAFT, PRESS FIT
-------
|
|||
|
Unavailable |
|||
|
#19
ASM. SEAL HEAD 2.5 X 0.875 PI
1800856
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
ID RETAINING RING, 2.5"
1800847
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
2.48 X 0.0625 WIRE RING
1800846
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING 2-202
1800964
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
#8-32 X .500 LOW HEAD SCREW
1800843
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING 2-122
1800503
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NEEDLE, 1 PC PRESS IN
1800840
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING HCOM9T-12MM
1800880
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
RETAINING RING FOR I. 0625 BORE
1800966
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING 2-312 1000312
1800810
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
RETAINER-SPRING,2.5"
1501211
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPACER, 2.037L
1800657
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PISTON ASSEMBLY
-------
|
|||
|
Unavailable |
|||
|
#32
NUT 7/16 NYLOCK (1425112)
1800638
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
