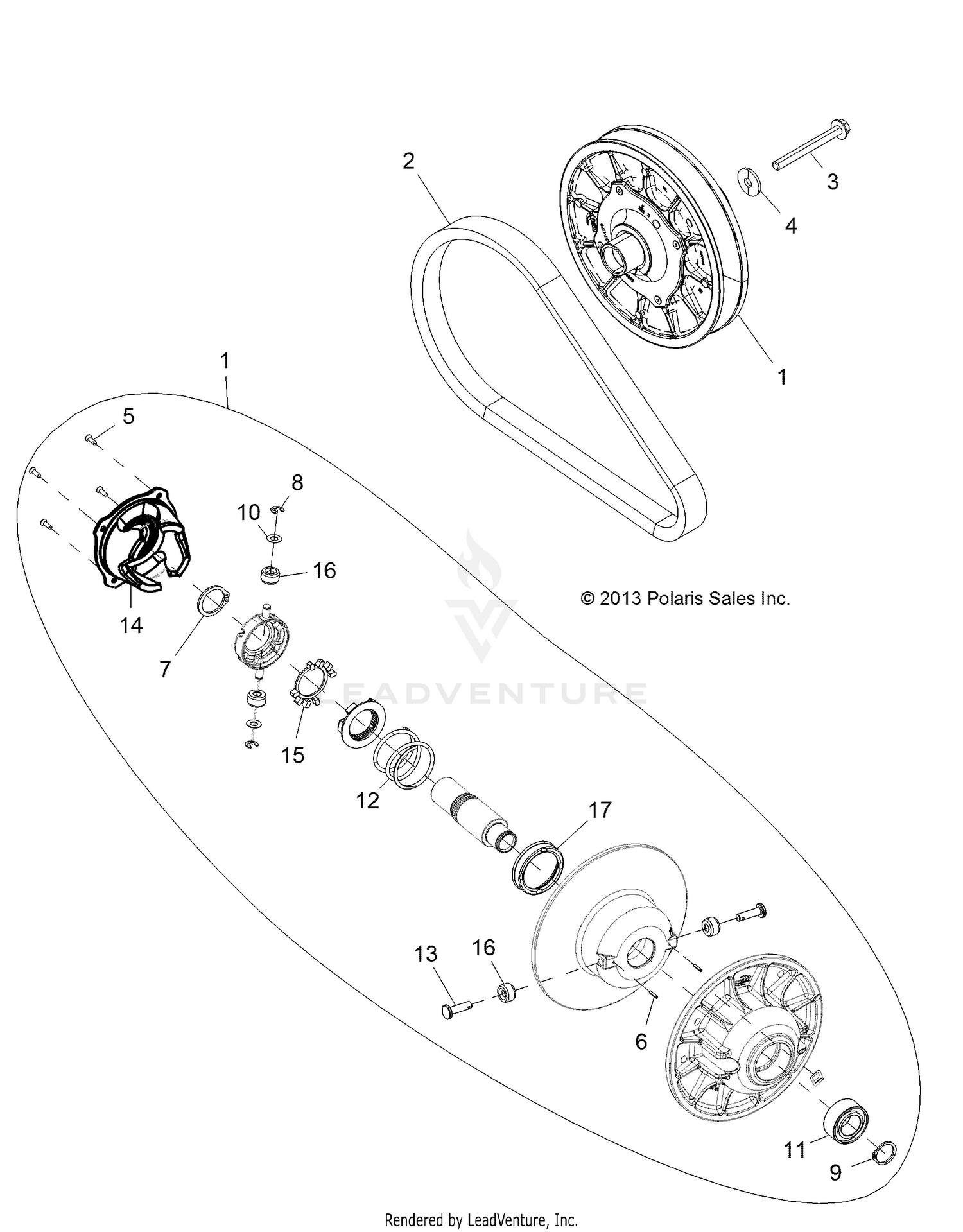

Drive Train, Secondary Clutch - Z16vde99fm/nm (49rgrclutchdvn14rzr1000) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM., DRIVEN, TIED
1323060
|
$679.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BELT, DRIVE
3211148
|
$199.99 | ||
|
Unavailable |
|||
|
#2
BELT-DRIVE,10.5CD,HDY
3212359
|
$259.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
7519043
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
WASHER
7556130
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW-HELIX, PATCH
3234754
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN,SPRING SLOTTED .125X.625
3234202
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, RETAINING, BASIC, EXTERNAL
7710522
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RET.E-RING-E T.375-TEAM#130059
7710523
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, RETAINING
3234205
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
THRUST, WASHER
7556226
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BEARING, BALL
3234203
|
$29.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SPRING, COMPRESSION
3234452
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN , ROLLER
3234201
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ASM., CAM, EBS
3235552
|
$509.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
K-CLUTCH,PTD,SPIDER DAMPER
7710564
Superseded by 2206554
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROLLER, CLUTCH TORLON
5434534
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUP, SPRING
-------
|
|||
|
Unavailable |
|||
