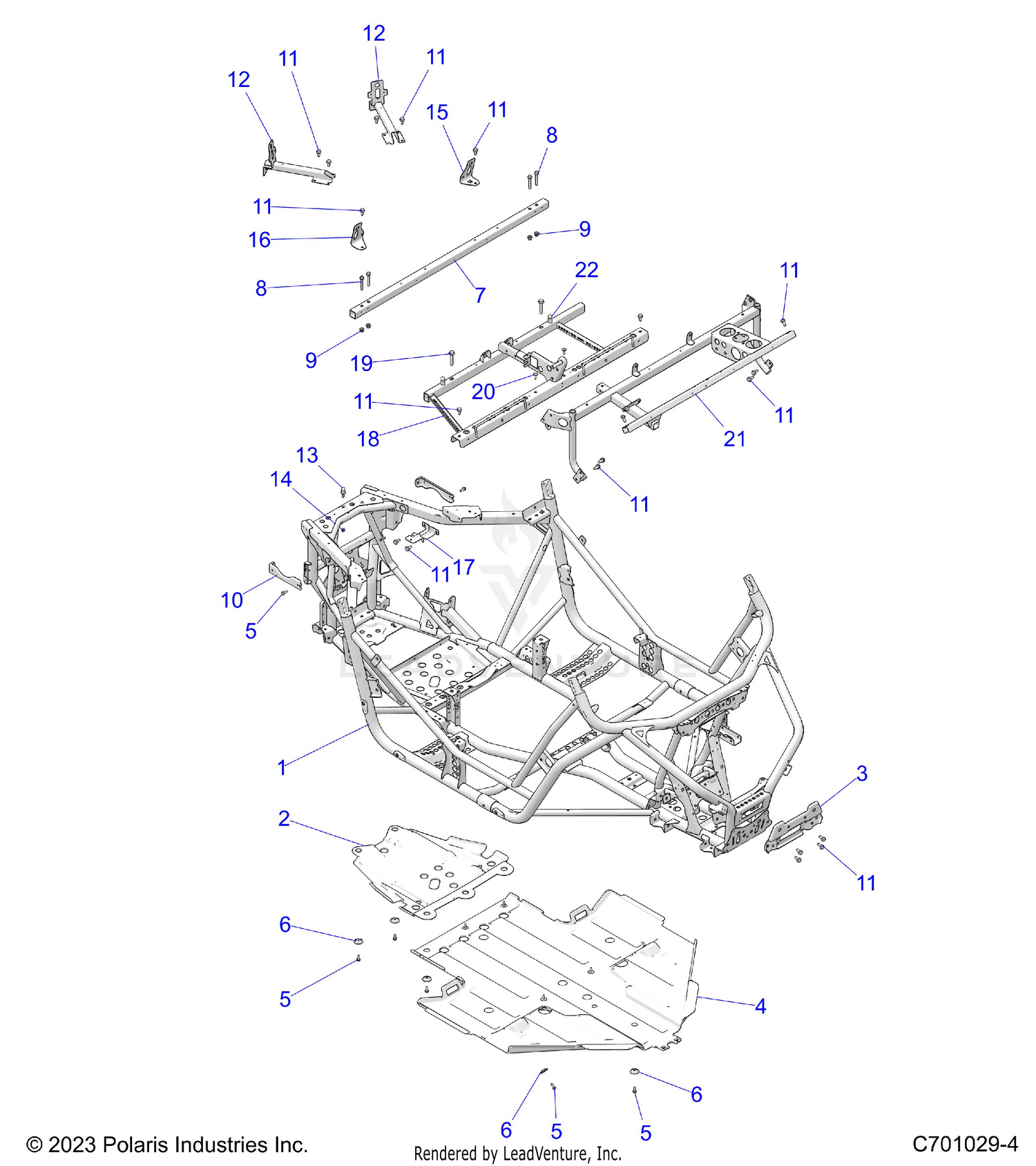

Chassis, Main Frame And Skid Plate - Z24ase87a5 (c701029-2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WELD-MAIN FRAME,BLK
1026549-458
|
$3,134.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE-SKID,REAR,BLK
5456433-070
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRKT-SUSP MNT,FRT,M.BLK
5259449-458
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE-SKID,BLK
5456434-070
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
WASHER-SKID PLATE
7556065
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
ASM-TUBE,TOP FRAME,ECOAT
1024407-329
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCR-M8X1.25X55,HX/FL-Y
7517281
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, FASCIA
5259106
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
MOUNT, BODY, MATTE BLACK
1020506-458
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUNGER, BOX, LATCH
5139009
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
TIEDOWN, FRONT, LH, MATTE BLACK
5259103-458
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
TIEDOWN,FRONT,RH,BLK
5263590-458
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
MOUNT, COIL, MATTE BLACK
5259105-329
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WELD-SEAT BASE,BLK
1020571-329
|
$259.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCR-HXFL-M10X1.5X55 8.8 ZY3
7518474
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WELD-DASH,TURBO,S,ECOAT
1024577-329
|
$404.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
LATCH, PLUNGER, SEAT
5632848
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
