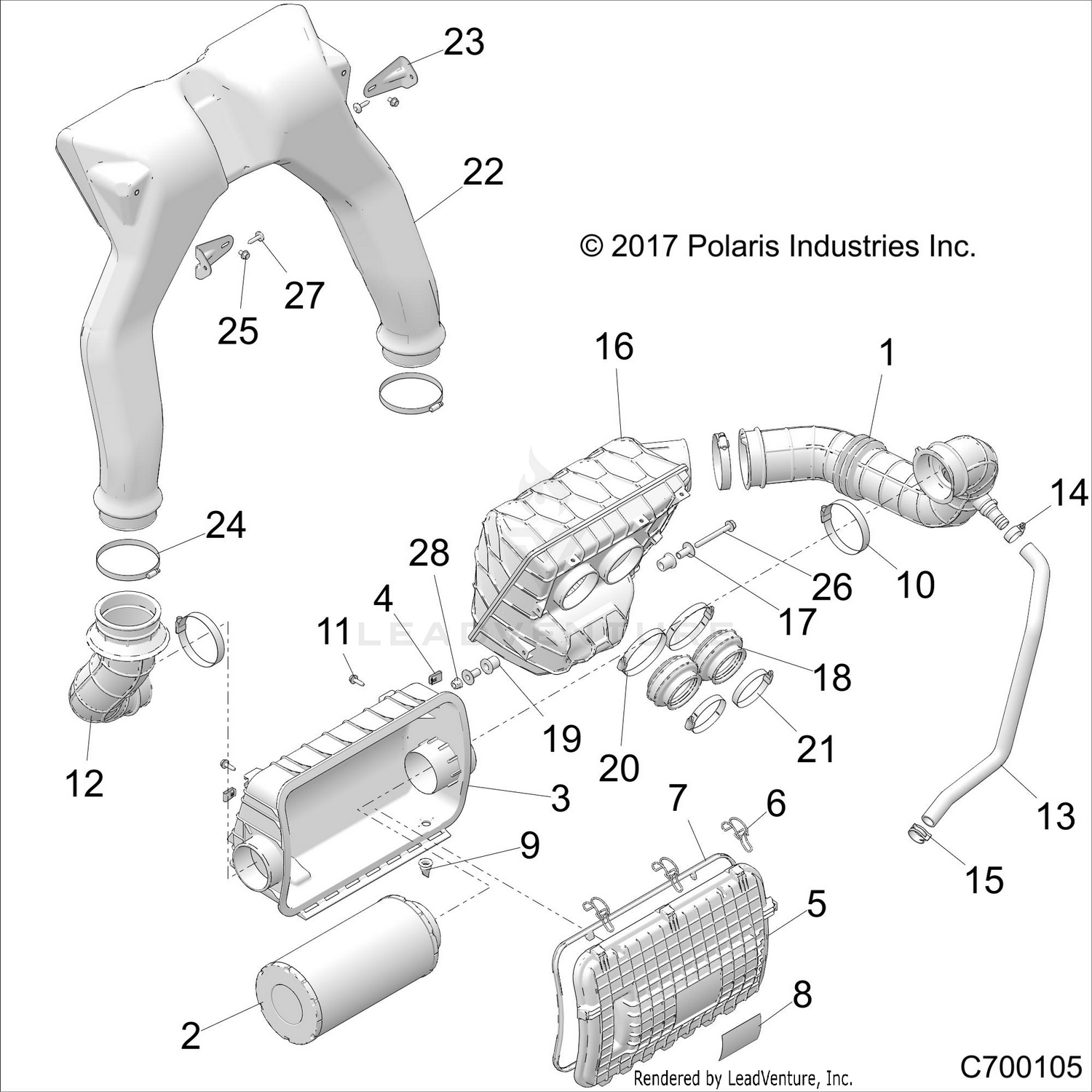

Engine, Air Intake System - Z21s1e99ar/br (c700105) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-INTAKE DUCT
1241185
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-FILTER
1241084
|
$44.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
K-FILTER,AIR,ULTRA,PERF,RZN
2882234
|
$79.99 | ||
|
Unavailable |
|||
|
#3
ASM-AIRBOX HOUSING
1241166
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT-M6-1.0, U-TYPE (2.5-3.8)
7547674
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
ASM-AIRBOX COVER
1241314
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ASM-AIRBOX COVER
7082303
Superseded by 1241174
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL-AIRBOX
5814549
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DECAL-CAUT.AIR BOX
7182652
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG-DRAIN
5414472
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP,HOSE,3.75,SS
7080907
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
HOSE-AIRBOX,IN
5416218
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE-VENT,ENG
5416219
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP, HOSE WORM GEAR 1.25
7080614
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRINGBAND-CLAMP 27/12,GREEN
7080841
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WELD-INTAKE,ENG HOUSING
1241175
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER-BUSHING
3022994
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOOT, THROTTLE BODY
5414570
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
ISOLATOR
5415637
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP-WORM DRIVE,.44WX3.75 DIA(10)
7080812
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP-WORM GEAR,44-70MM,HOSE
7081623
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
ASM-HIGH INTAKE,BLK
2636774-070
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRKT-INTAKE SUPPORT,BLK
5264914-458
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP-WORM DRIVE,3.69 DIA
7081626
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-HXFL-M6X1.0X10 8.8 ZPB
7517893
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
SCR-M8X1.25X75 8.8 HX/FL ZOD
7518955
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
