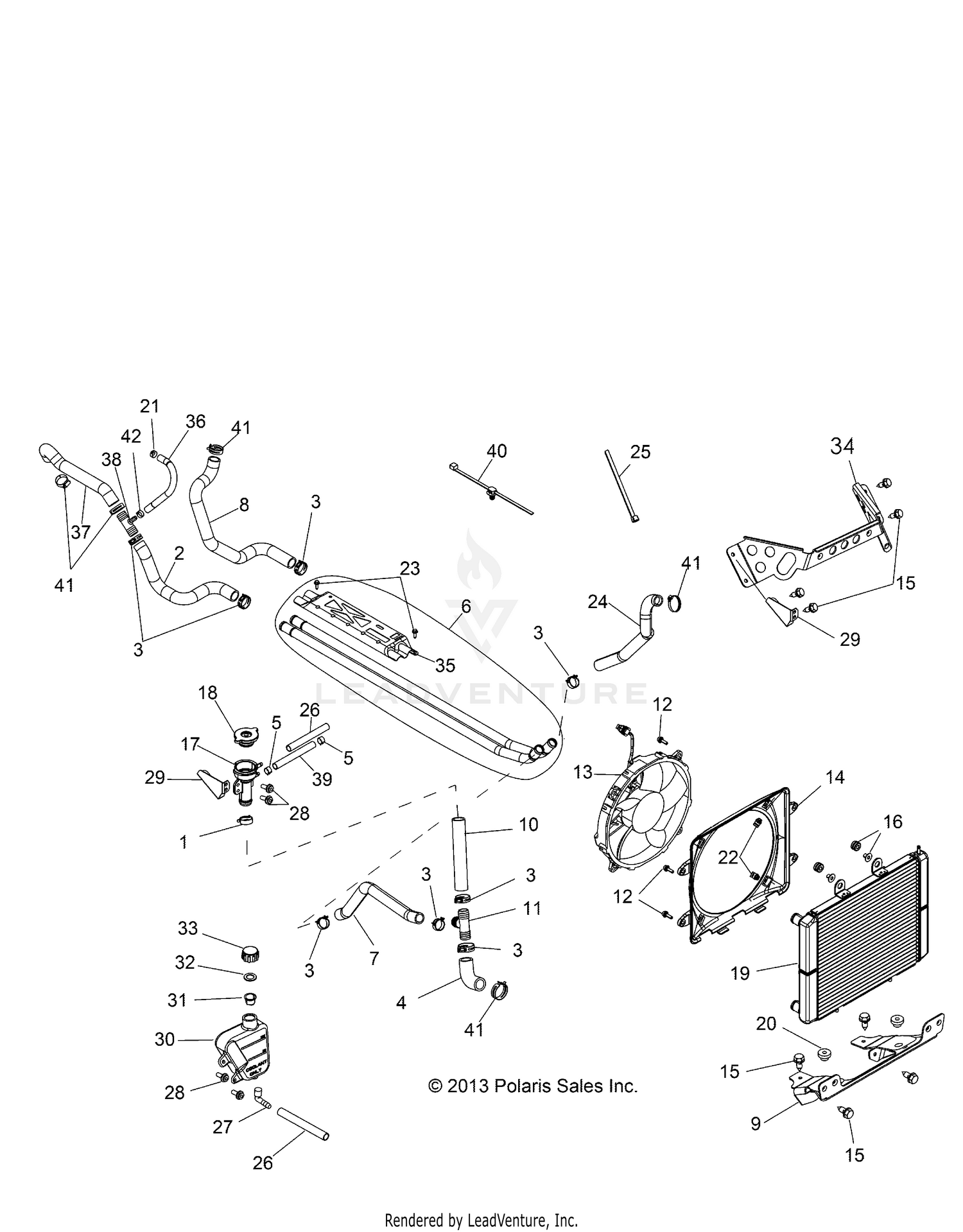

Engine, Cooling System - Z14vh76ac/ad/eai/eak/eaj/eal/eaw (49rgrcool14rzr800) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, HOSE
7081174
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, ENGINE INLET, REAR
5414206
|
$31.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP, SPRINGBAND
7080844
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE, RADIATOR, LOWER
5414202
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE CLAMP, RED
7080003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
ASM., TUBE, COOLANT
1240648
|
$314.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, LOWER, FRONT
5414204
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, ENGINE OUTLET, REAR
5414205
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, MOUNT, RADIATOR, LOWER, BLACK
5254709-067
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, MOUNT, RADIATOR, LOWER, MATTE BLACK
5254709-458
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, REMOTE FILL NECK
5414203
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
T-CONNECTOR
7052373
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
7516822
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
ASM., FAN
2410413
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHROUD, FAN
5437845
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
ASM., GROMMET AND INSERT
5411975
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
FILLER, REMOTE
5439079
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP-PRESSURE
1240300
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
ASM., RADIATOR, CORE
1240444
|
$444.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BUSHING-MOUNT,LOWER RADIATOR
5410584
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP-HOSE,.875-SS
7080474
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CLIP-"U",M6.0X1.0
7547366
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
7519342
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
HOSE, RADIATOR, UPPER
5414201
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
LINE, FUEL
8450003-1525
|
$89.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
FITTING, 90 DEGREE
7052065
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
SCREW
7512084
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BRACKET, FILLER NECK
5253450
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
TANK-SURGE
5436936
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
CAP-OVER FLOW BOTTLE,DRILLED
5430743
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BRACKET, MOUNT, RADIATOR, UPPER, MATTE BLACK
5254710-458
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BRACKET, FUEL TANK MOUNT, CENTER, BLACK
5254161-329
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
HOSE-BYPASS,3/8IN FORMED
5413949
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
HOSE, BYPASS, FORMED
5414207
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CONNECTOR, TEE
7052494
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
LINE, FUEL
8450120-600
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
CLAMP-HOSE, 1.750-SS
7080560
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLAMP-HOSE,.875-SS
7080474
|
$8.99 | ||
|
Unavailable |
|||
