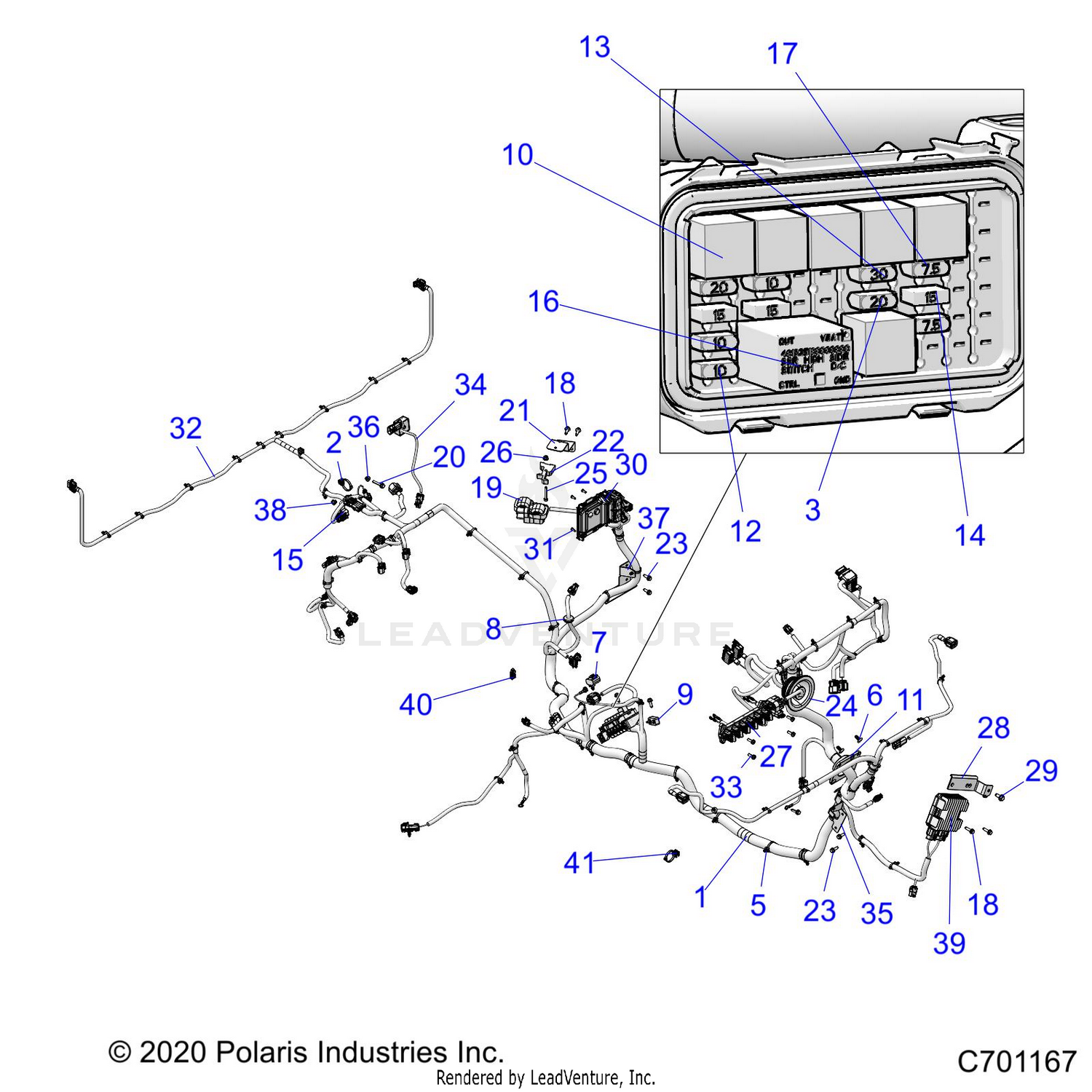

Electrical, Wire Harness - R21rre99a9/ac/ap/aw/b9/bc/bp/bw (c701167) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARN-CHASSIS,XP,BASE
2415420
|
$1,344.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLIP-EDGE, 1-3mm THICKNESS
7082403
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE, 20 MINI BLADE 58V
2434017
Superseded by 4012811
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
DECAL-RELAY/FUSE BLOCK, BASE
7300226
|
|||
|
Available to order. Add to View Price |
|||
|
#5
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CLIP-FIR TREE,DART,6.35MM
7670090
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
GROMMET - USB, 3 MM, 22 MM DIA
5415308
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BREAKER-CIRCUIT,20 AMP,SEALED
2410881
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RELAY-SPST,12V,20A,EPXY,HFA
4016819
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET - 65MM, W/FLANGE, BLK
5814560
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FUSE-IGNITION,10 AMP
2434016
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
FUSE-MAIN,30 AMP
2434015
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
FUSE-15AMP,MINI BLADE
2410280
Superseded by 4010859
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER-FUSEHOLDER
4012260
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RELAY - SSR 10A
4018251
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
FUSE - 7.5, MINI BLADE (BROWN)
4011068
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCR-TFHFL-M6X1.0X25,ZY3
7520715
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Kit, Ignition Coil
4010425
Superseded by 2876049
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT-M6X1.0X35,HXFLG/SH-OLV D
7518612
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRKT-COIL MOUNT
5263891
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER-COIL MOUNT
5436577
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
GROMMET-HOOD LINER,SPLIT
5417082
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCR-M6X1.0X40,HX/SOC/CP-B
7518780
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT-M6 FLANGE,NYLOC
7547274
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BLOCK-TERMINAL,3 POST,TALL
4016007
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
FUSE-CARTRIDGE,40A
4013891
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLUG,ACCY TB
5454283
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER,TB,JCASE
5454284
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BRKT-MOUNT,REG
5263643
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
ECM-HARD,ME17,2CYL,250K
4014125
|
$749.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCR-#10X1/2-HI/LO-PN-T25, TRX-M
7519091
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
HARNESS,BOX,RANGER,RC
2413818
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCR-TXPH-#14 X .75 HI-LO RIE
7519731
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
RELAY, SOLID STATE, 9 AMP, LONG, LD
4012829
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BRKT-ROUTING,BLK
5264313-329
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BRKT-ROUTING,BLK
5268050-329
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
BRKT-HARNESS ROUTING
5264314
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
REGULATOR-3PH,50A,SERIES,HISPD
4016868
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLIP-EDGE,1-3MM THICKNESS
7082428
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLIP-EDGE, 3-6MM THICKNESS
7082404
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
