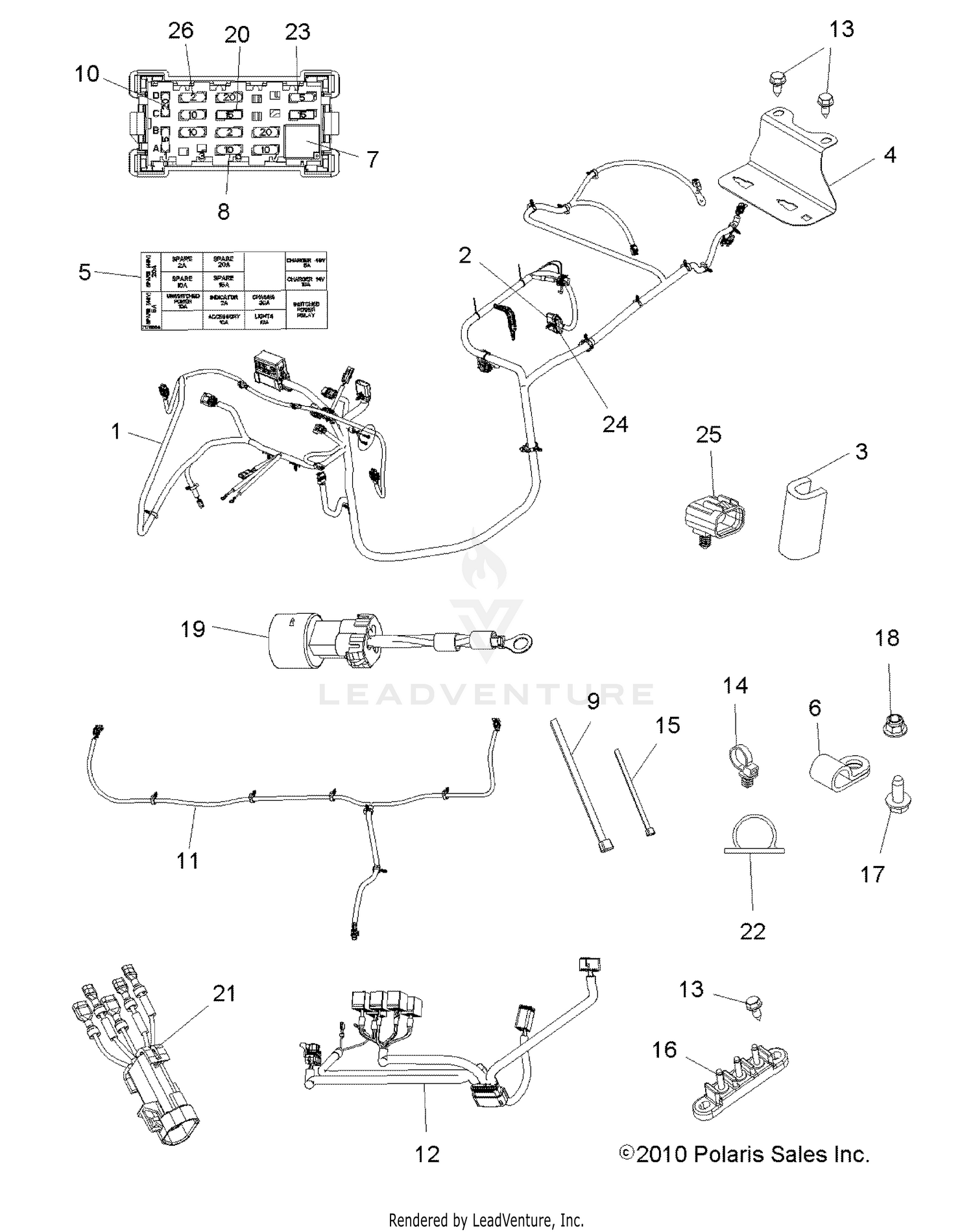

Electrical, Wire Harnesses - R11rc08ga/gh/fa/fh (49rgrharness11ev) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Harness, Chassis
2411583
|
$1,014.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER-RELAY/FUSE CENTER
5438758
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Kit, Harness, Charge Plug
2878648
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
KIT, HARNESS, FUSES
2879665
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Decal, Fuse Box
7176863
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
Trim, Edge
5521131
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Bracket, Fuse Block
5253928
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Decal, Fuse Box
7176864
|
|||
|
Unavailable |
|||
|
#6
Clamp, Hose
7080869
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Relay, SPST
4012851
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUSE-IGNITION,10 AMP
2434016
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE, 20 MINI BLADE 58V
2434017
Superseded by 4012811
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Harness, Cargo Box
2411555
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Harness, Dash
2411584
|
$200.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CABLE-TIE,DIA10-50MM,FIR-TREE
7081334
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Block, Terminal, 3 Post
4011892
|
$39.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
NUT-M5X.8,HX NYL-Y
7546601
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Unavailable |
|||
|
#18
NUT-M6 FLANGE,NYLOC
7547274
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Harness, Contactor
2411614
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
FUSE-15AMP,MINI BLADE
2410280
Superseded by 4010859
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Harness, Gauge
2411447
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Clip, Wire, Adhesive Back
7670134
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
Fuse, 5 AMP
4012852
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Fuse, 20 AMP
4012811
|
$9.99 | ||
|
Unavailable |
|||
|
#25
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
FUSE-2AMP,ATM,BLADE STYLE,MINI
4010752
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
