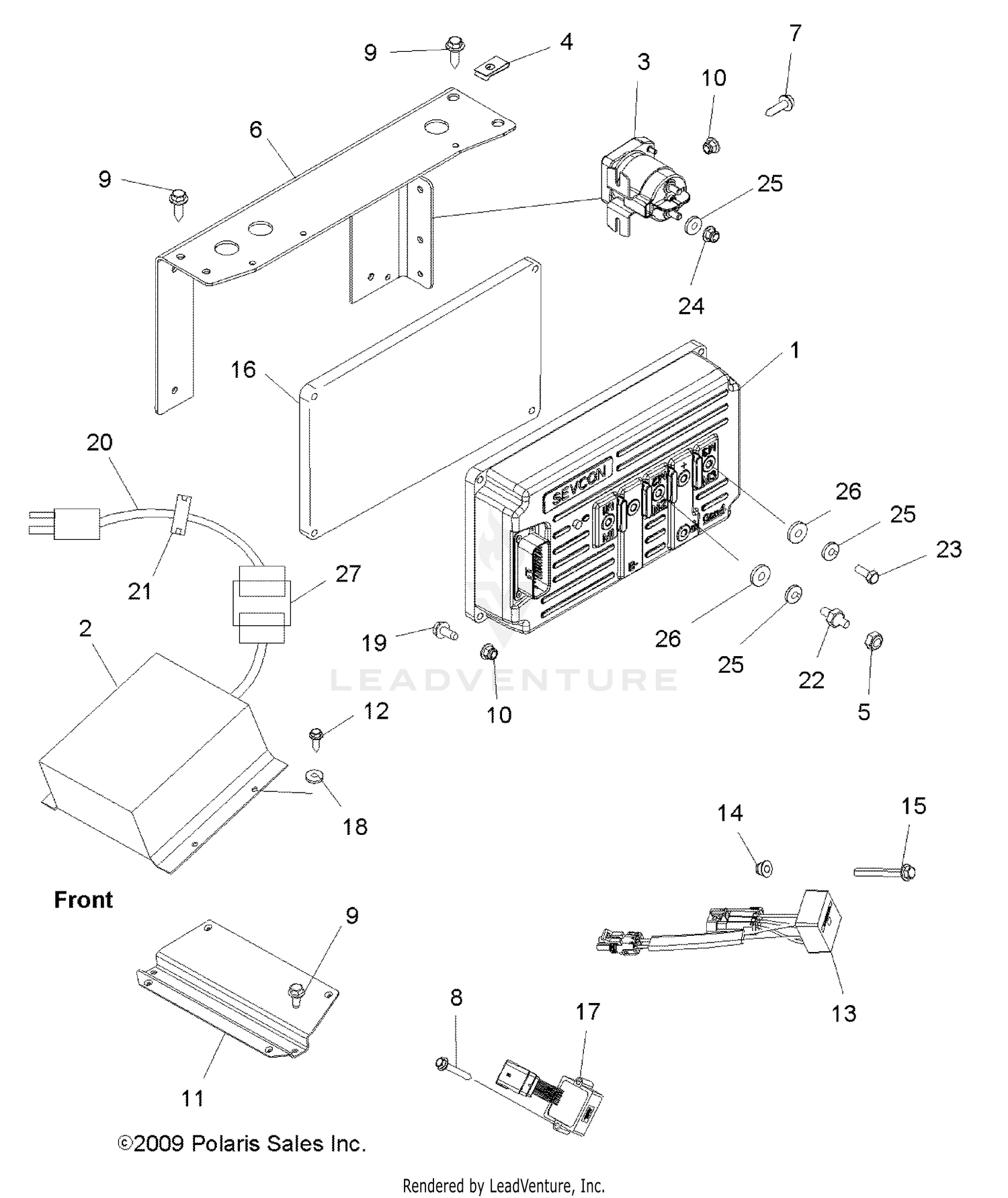

Electrical, Modules And Controllers - R10rc08ga/gh/fa/fh (49levelectmod10sdw) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Asm., Controller, 48V, Programmed
4012877
|
$2,379.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
KIT-CHARGER UPDATE
4012661
Superseded by 2204698
|
$1,624.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Asm., Contactor, 48V
4012818
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Nut, U-Clip
7547476
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Nut
7547317
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
Bracket, Mounting, Controller
5253457
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCR-TXPHM6X1.0X25 8.8 RIE
7518535
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Screw
7519090
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Bolt
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Bracket, Mounting, Charger, Matte' Black
5253458-458
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Relay, Solid State
4012829
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT-M6 FLANGE,NYLOC
7547274
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Bolt
7518612
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Extrusion, Controller
5137201
|
$369.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Module
4012812
|
$644.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Washer, Int/Ext. Lock
7556560
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Bolt
7518612
|
$5.99 | ||
|
Unavailable |
|||
|
#20
Cable, Charging
4012836
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Grommet
5813530
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
Stud
7519183
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Bolt
7518695
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Nut, Hex, Jam
7547469
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Washer
7556528
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
Tube, Heat Shrink
5521655
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
