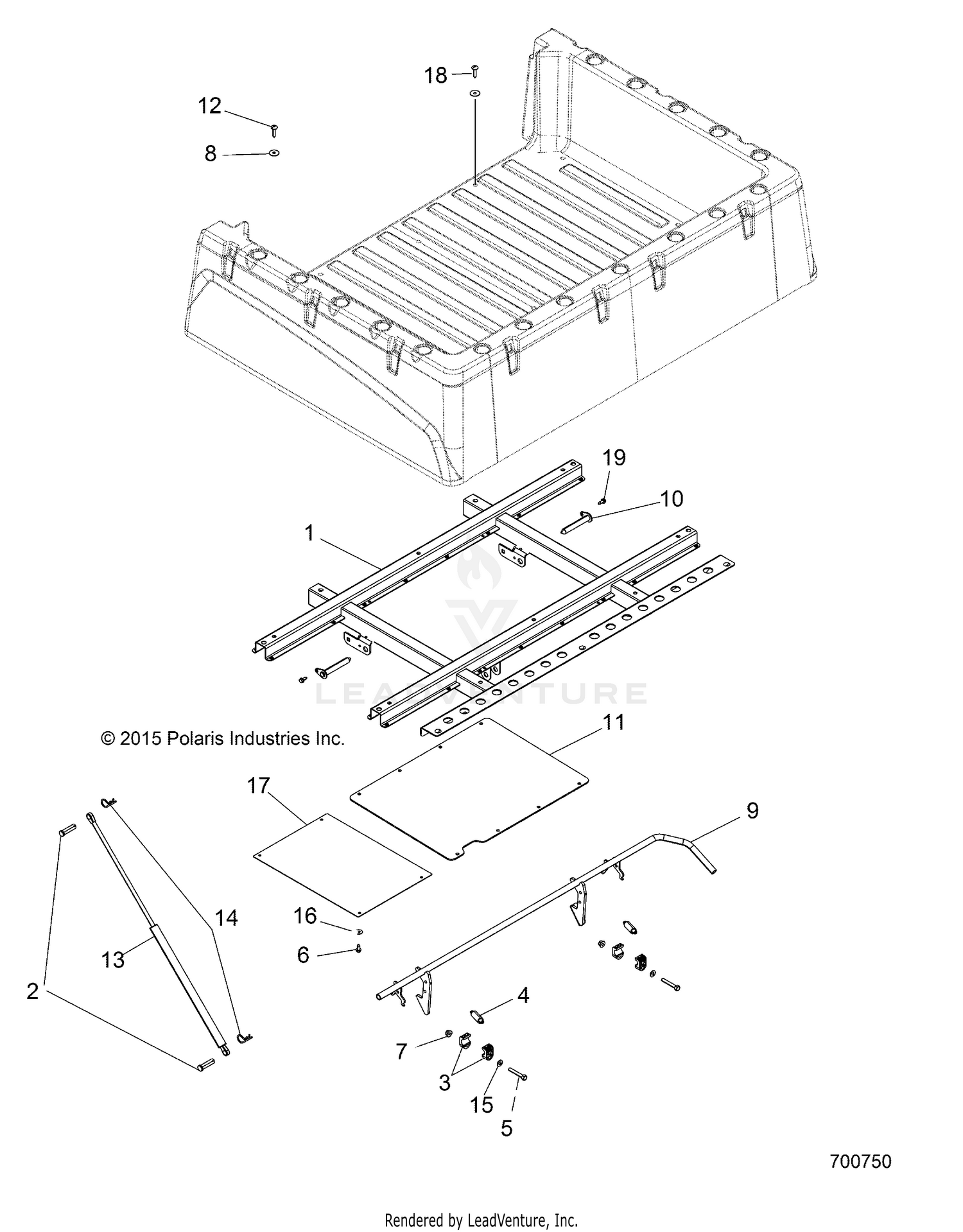

Body, Box Mounting - R18rne57nv (700750) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SUPPORT, BOX, BLACK
1020247-329
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, CLEVIS
7661878
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSHING-BOX,LATCH
5434226
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING-EXHAUST
7041687
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
7515319
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
7517386
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT-5/16-18 HX FLG NL-Y
7542343
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
7556329
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
LATCH, MATTE BLACK
1019120-458
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, BOX HINGE, BLACK
1016695-329
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIELD-HEAT,CENTER-BOX
5264246
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
7517686
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHOCK-BOX,DUMP,LG,SINGLE LOBE
7044675
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP, HITCH PIN
7661067
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, FLAT
7555859
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIELD, HEAT, BOX
5256411
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
7518375
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
