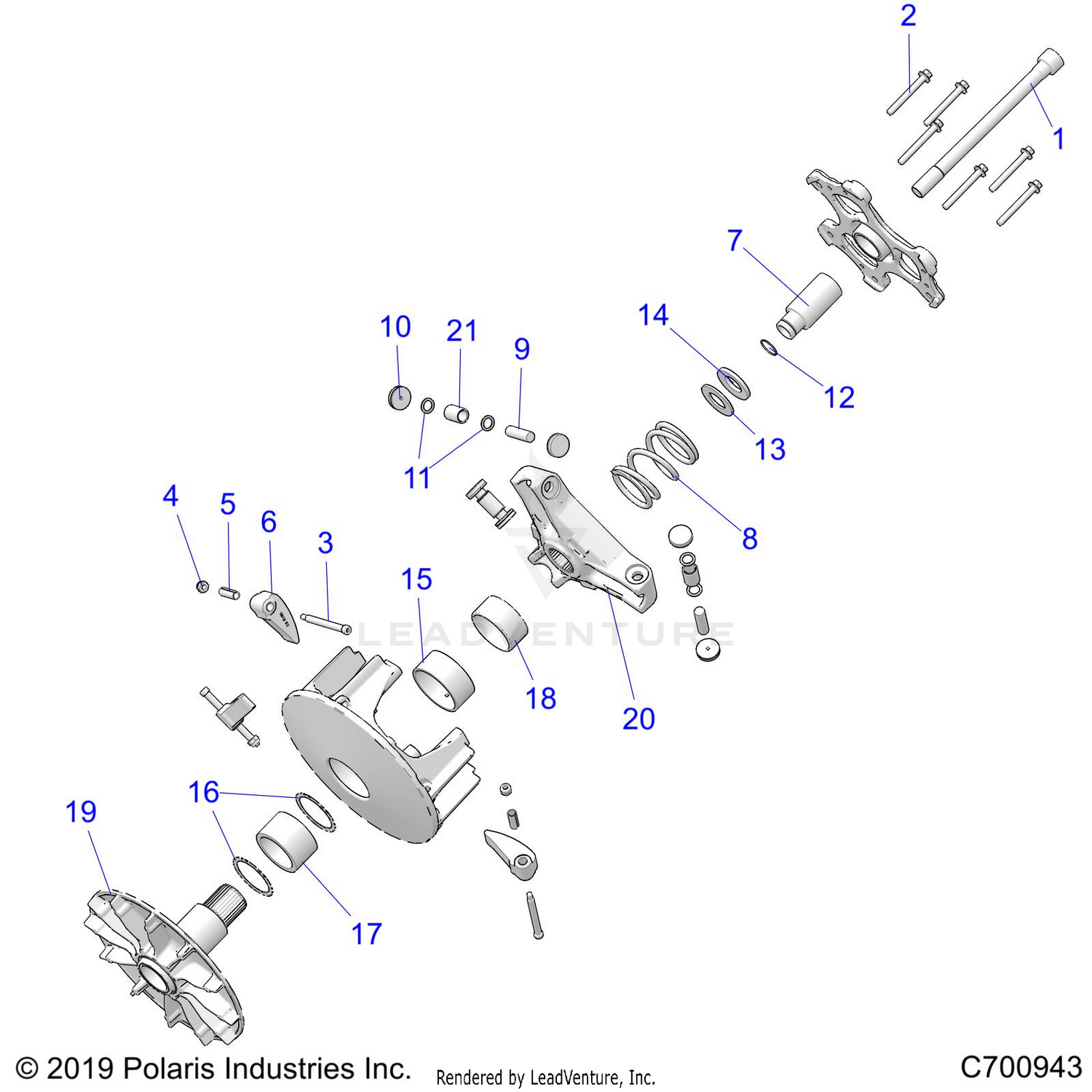

Drive Train, Clutch, Primary - R21t6u99ap/ag/bp/bg (c700943) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
ASM-DRV CLTCH,BSC,P190XNEBS
1323801
|
$799.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
SCR-SH-M14X1.5X180 10.9 SPC
7520526
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCR-M6X1.0X50.0 HX/FL-Y/D
7517932
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BOLT-SHIFT WEIGHT,BUSHED
7520585
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT-10-24-FLEX LOC-Z
7541906
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BUSHING-WEIGHT,1/4X7/8,DU
5453843
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ASM-WEIGHT-SHIFT,32-112,HC
1323704
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
POST-CLUTCH,OUTER,O-RING
5143553
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING-CLUTCH,99-277
7045195
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN-SPIDER
5140978
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUTTON-CLUTCH,22MM,SCP
5457274
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER-CLUTCH,SPIDER ROLLER
5453844
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING-1.0X17.5MM
5416980
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WSHR-20.5X38.0X2.27 P&O
7557200
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WSHR-BELLE,21X37.5X3.8,SPC
7557018
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSHING-50X55X25,MU
3515174
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WSHR-CLUTCH,40.5X49X0.8,SP-21
7557071
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING-NEEDLE,40X50X30
3515077
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER-CLUTCH,P90X,QPQ
5143479
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
ASM-SHEAVE,STAT,P190X 1000
5142942
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
ASM-SPIDER,22MM,P90X,HD
1323794
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
ROLLER-SPIDER,12X14.3X25
5143506
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
