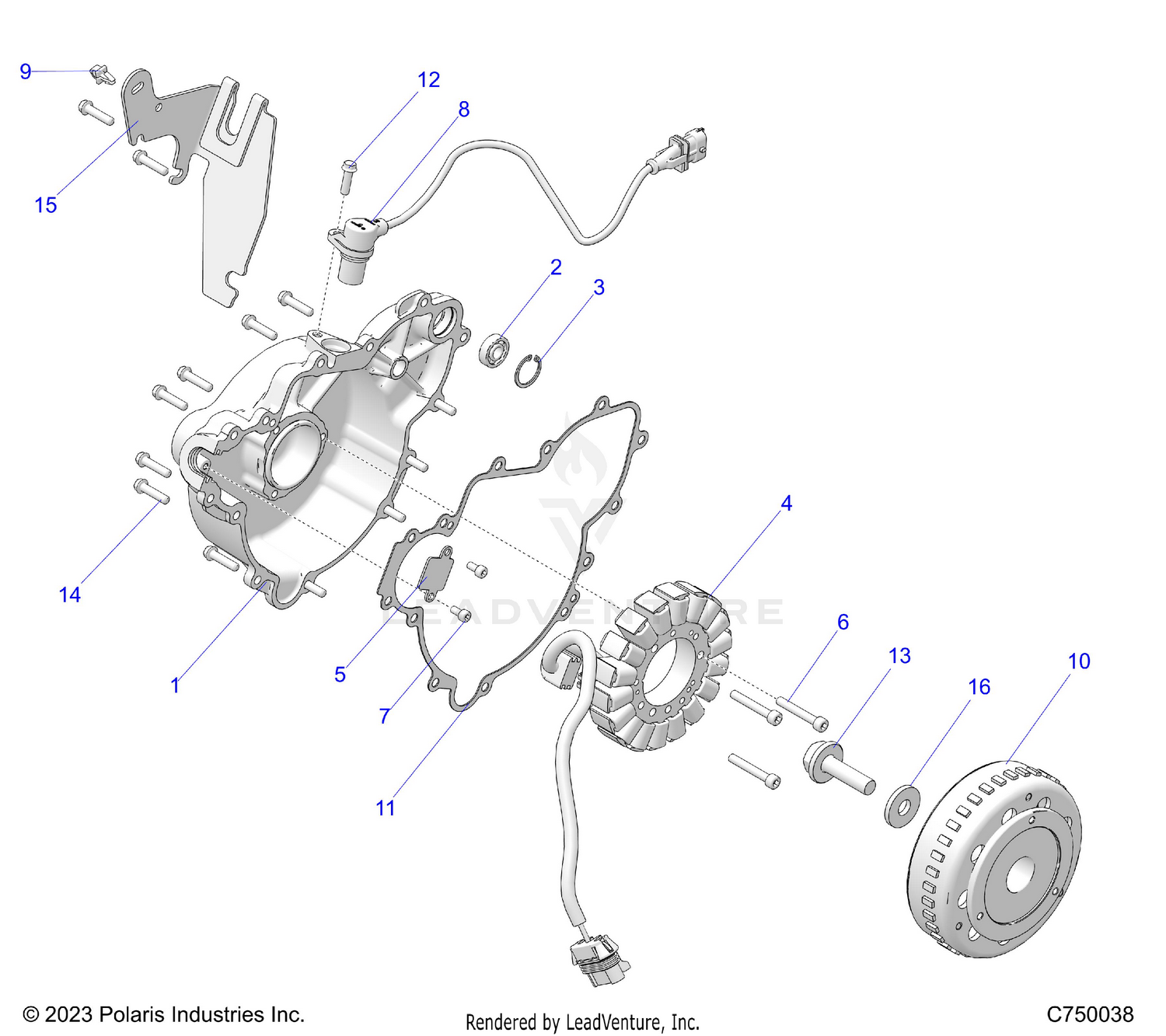

Engine, Stator And Flywheel - R24rse99aj/bj/ak/bk/az/bz/a9/b9 (c750038) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-IGN COVER,STARTER BRG
1206299
|
$174.99 | ||
|
Unavailable |
|||
|
#1
COVER-STATOR,MACHINED
5143721
|
$134.99 | ||
|
Unavailable |
|||
|
#2
BEARING-BALL,9X24X7
3514717
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING-SNAP,DIN472,24X1.2MM
7710654
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STATOR-660W,706MM
4018448
|
$609.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, RETAINER, WIRE
5255473
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCR-M6X1.0X40,HX/SOC/CP-Y/D
7510005
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW-M5X0.8X10 SOC/CP-D
7517847
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SENSOR, CRANK POSITION
2411719
|
$129.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CLIP-WIRE, 6.35MM
7081477
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FLYWHEEL
4014688
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, COVER, IGNITION
5814160
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW-HXFL-M12X1.25X43 12.9
7520178
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW-HXFLG,M6X1.0X25,10.9
7519297
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRKT-HOSE,BYPASS
5263750
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WSHR-32X12X4,HARD
7556885
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
