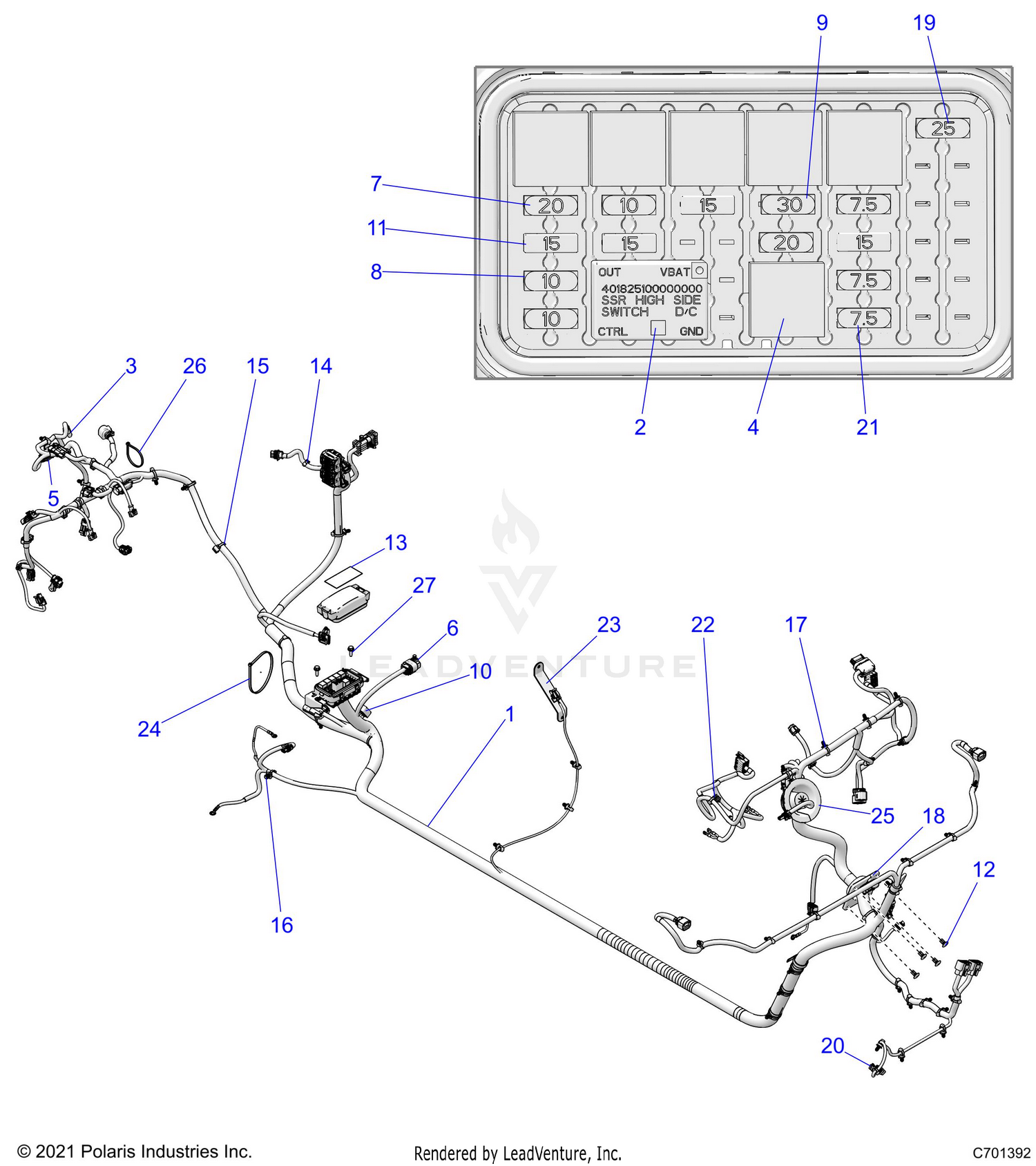

Electrical, Wire Harness - R22t6e99a9/ag/an/b9/bg/bn (c0701392) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARN-CHASSIS,BASE,CREW
2415423
|
$1,889.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RELAY - SSR 10A
4018251
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP EVAP CONNECTOR
4018066
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RELAY-SPST,12V,20A,EPXY,HFA
4016819
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER-FUSEHOLDER
4012260
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
FUSE, 20 MINI BLADE 58V
2434017
Superseded by 4012811
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUSE-IGNITION,10 AMP
2434016
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
FUSE-MAIN,30 AMP
2434015
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BREAKER-CIRCUIT,20 AMP,SEALED
2410881
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUSE-15AMP,MINI BLADE
2410280
Superseded by 4010859
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP-FIR TREE,DART,6.35MM
7670090
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
DECAL-RELAY/FUSE BLOCK BASE
7300220
|
|||
|
Available to order. Add to View Price |
|||
|
#14
CLIP-EDGE,1-3MM THICKNESS
7082428
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP-EDGE, 1-3mm THICKNESS
7082403
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP-FIR TREE,9.7-10.0MM HOLE
7082414
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
GROMMET - 65MM, W/FLANGE, BLK
5814560
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
FUSE-25A,MINI BLADE
4011653
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP-EDGE,1-3MM,6-45MM,SERT.
7081808
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
FUSE - 7.5, MINI BLADE (BROWN)
4011068
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP-EDGE, 3-6MM THICKNESS
7082404
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRKT-WIRE GUIDE,BLK
5265908-458
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GROMMET-HOOD LINER,SPLIT
5417082
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
