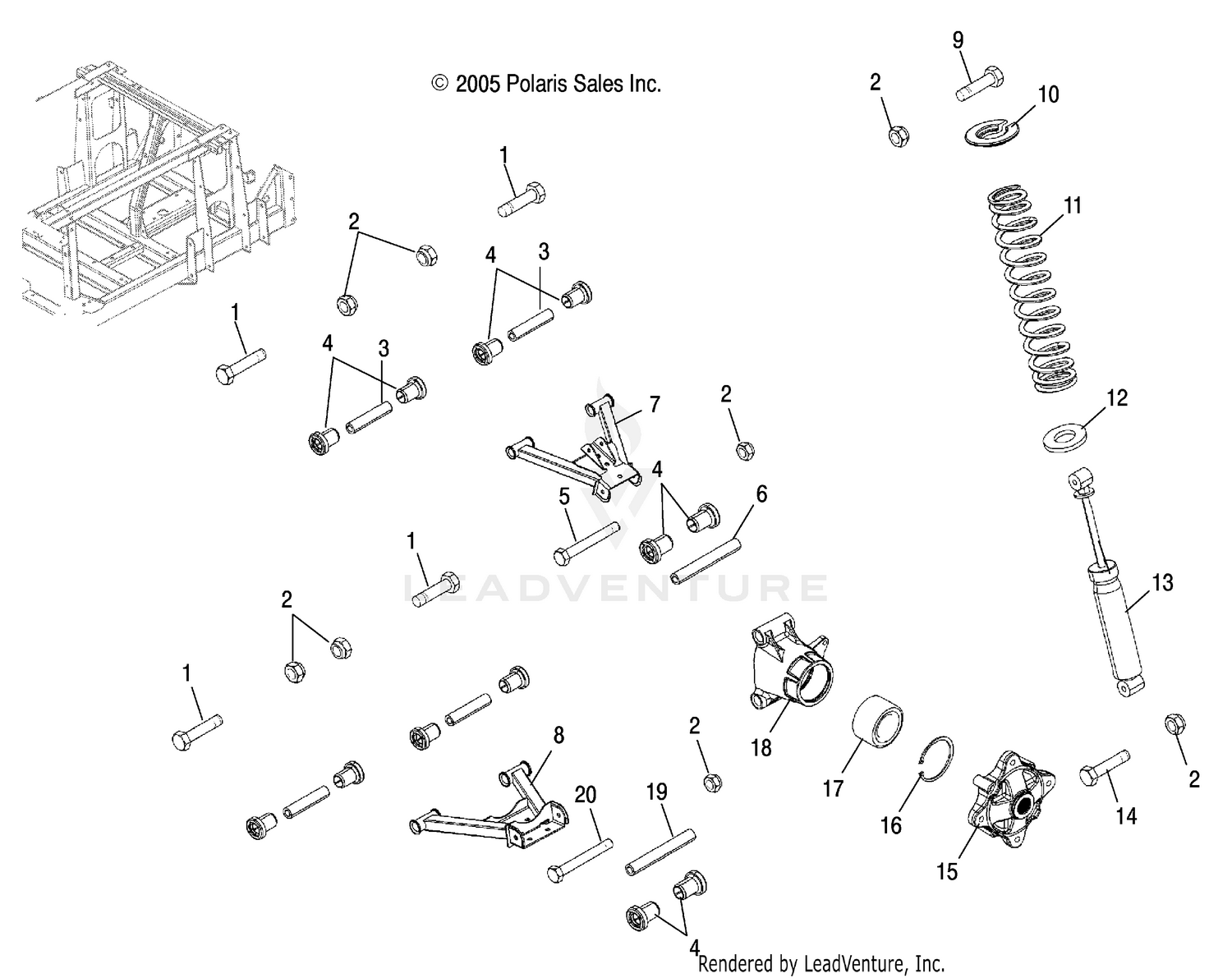

Suspension, A-arms, Mid Drive - R09rf68af/ar/az (49rgraarm097006x6) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCR-HXFL-M10X1.25X95 10.9 ZOD
7518560
Superseded by 7519043
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Shaft, Pivot
5335448
Superseded by 5137591
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSHING, A-ARM., SHORT, BLACK
5434548
Superseded by 5439270
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCR-HXFL-M10X1.25X115 8.8 ZOD
7518566
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SHAFT, PIVOT
5136580
Superseded by 5137592
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
A-Arm, Mid Axle, Upper, Black
1016816-067
|
|||
|
Unavailable |
|||
|
#8
A-Arm, Mid Axle, Lower, Black
1016817-067
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Bolt, Flanged
7518559
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
RETAINER-SPRING,STEEL
5251753
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Spring, Middle Axle, Black
7042169-067
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Washer
7556142
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Shock, Middle Axle
7043489
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Bolt, Flanged
7518563
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Hub, Wheel, Rear
5135113
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Ring, Retaining
7710440
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Bearing, Wheel
3585502
Superseded by 3514635
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Carrier, Bearing, Wheel, RH
5136543
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Carrier, Bearing, Wheel, LH
5136544
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT, PIVOT, 115.11MM
5136581
Superseded by 5137593
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Bolt, Flanged
7518562
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
