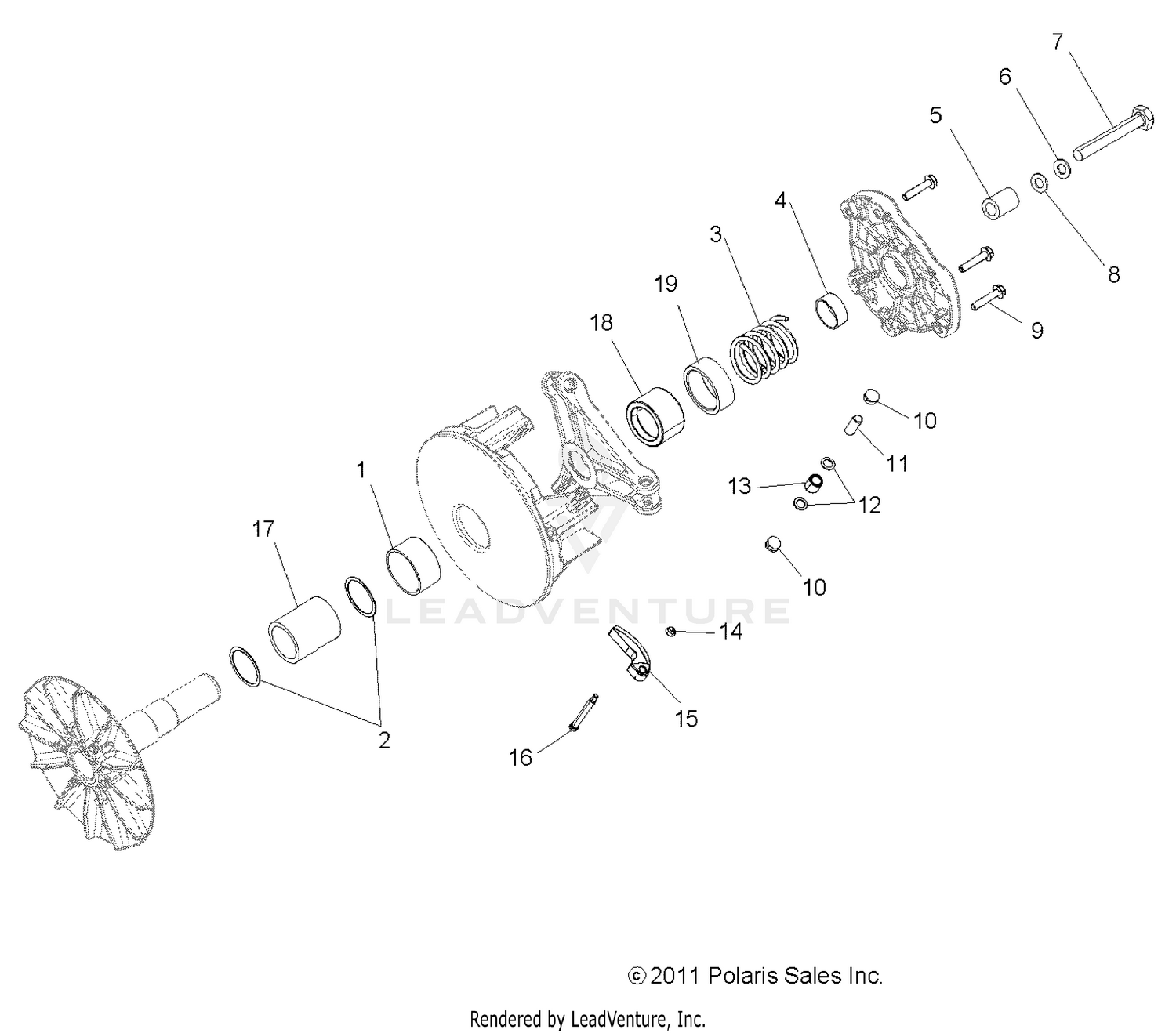

Drive Train, Primary Clutch - R12vh57ad (49rgrclutchdrv12rzr570) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
ASM-DRIVE CLUTCH,BASIC,BEARING
1323013
Superseded by 1323255
|
$659.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Bearing
3514492
|
$39.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
WASHER-CLUTCH,VESPEL
7556335
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING-CLUTCH, 35-240
7043594
|
$59.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Cover, Bearing
3514684
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BUSHING-.437 X.770 X.50
5430261
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER-7/16-INT LK-(1222)-Z
7575202
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Bolt, Clutch
7519287
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER-.440X1.25X.190 FL-Y
5210748
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Screw
7518062
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Button, Clutch
5439254
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN-ROLLER
5020422
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
WASHER-CLUTCH,SPIDER ROLLER
5438247
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
ASM-ROLLER AND BUSHING
1321457
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Nut, FLEXLOC
7541906
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WEIGHT-SHIFT,25-52G,PM
5632409
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Bolt, Shoulder
7512266
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BEARING-NEEDLE
3514609
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER-CLUTCH
5632328
Superseded by 5633000
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER-CLUTCH,LIMITER
5438823
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
