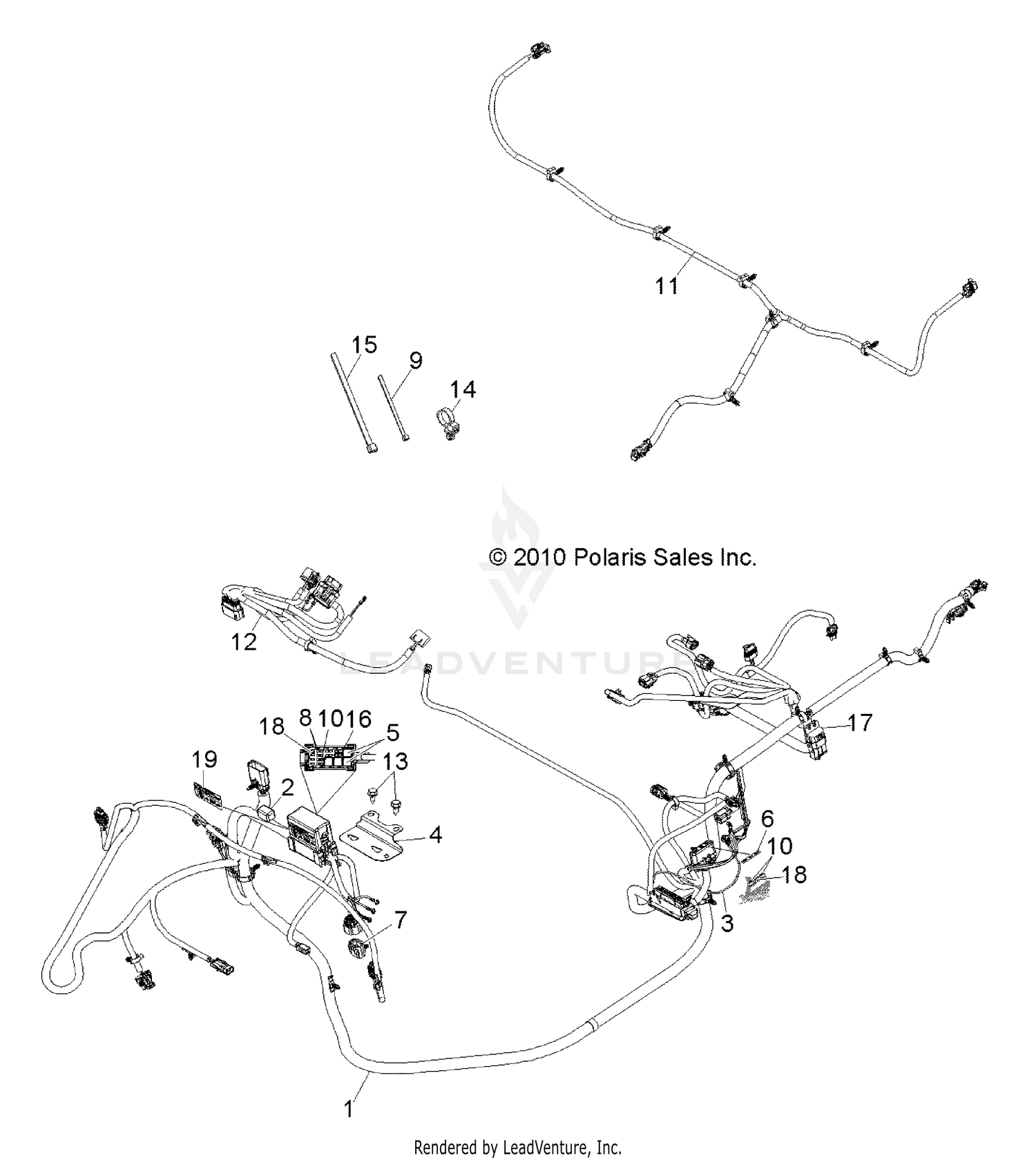

Electrical, Wire Harnesses - R11rh50ag/ah/ar (49rgrharness11500efi) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Harness, Chassis
2411573
|
$919.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Breaker, Circuit, 15 Amp, Sealed
2411086
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Kit, Fusible Link, 1mm
2202670
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Bracket, Fuse Block
5253928
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RELAY-SPST,12V,20A,EPXY,HFA
4011283
Superseded by 4016819
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Decal, Fuse Box
7176827
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
FUSE-IGNITION,10 AMP
2434016
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE, 20 MINI BLADE 58V
2434017
Superseded by 4012811
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Harness, Cargo Box
2411555
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Harness, Dash
2411567
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CABLE-TIE,DIA10-50MM,FIR-TREE
7081334
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
DIODE-6AMP
4011474
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Kit, Harness, Resistor Module
2204890
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
FUSE-15AMP,MINI BLADE
4010859
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Decal, Fuse/Relay Block
7176828
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
