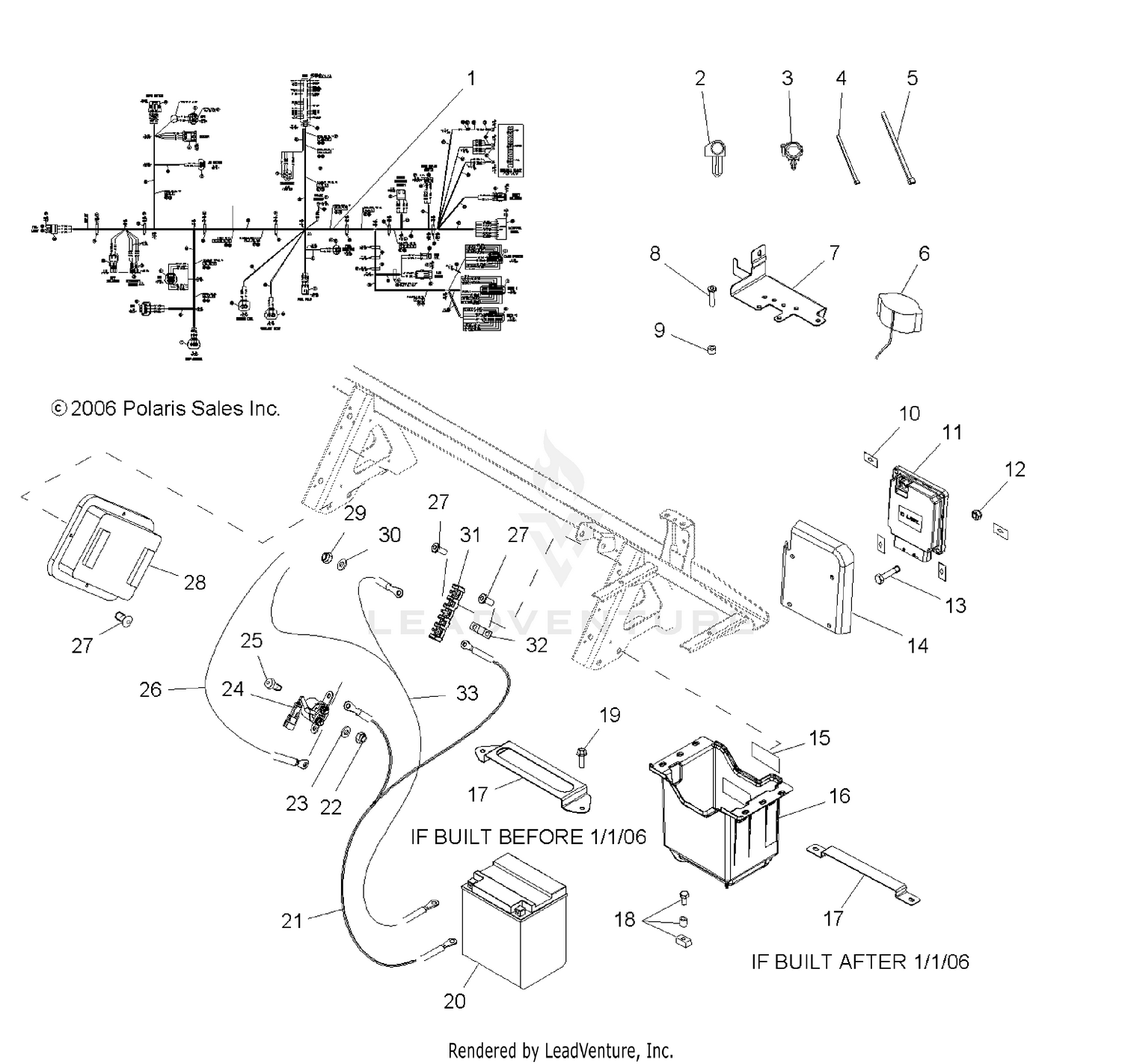

Electrical/battery - R06rd50ab/ac (4999203249920324b06) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Harness, Chassis
2410789
|
$969.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Kit, Fusible Link, 1.0 MM
2202670
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Kit, Harness, Engine Map Sensor
2876315
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Kit, Harness, Engine Air Temp
2875900
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Kit, Harness, Engine Injector
2875901
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Kit, Harness, TPS
2878498
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Clip
7670102
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Clip, Rosebud
4020149
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Coil, Ignition
4011482
|
|||
|
Unavailable |
|||
|
#7
BRACKET, OIL TANK, SUPPORT
-------
|
|||
|
Unavailable |
|||
|
#8
Screw
7512025
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER-.26X.50X.31
7556318
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Nut, Speed
7670021
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
ECM, Service
4012443
|
$569.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Nut
7542153
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Screw
7518632
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Cover, ECM
5436654
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Pad, Rack Mount
5810455
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Box, Battery
5434037
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Bracket, Battery Strap
5248374
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Bracket, Battery Strap
5250213
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Kit, Battery Bolt
2202802
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Screw
7517386
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BATTERY-30AH,12 VOLT,AGM
4010595
Superseded by 4014609
|
$209.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
Cable, Positive
4011213
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Nut, Hex
7547270
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Washer, Spring Lock
7552801
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
Solenoid, Starter
4010947
Superseded by 4012001
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Screw
7512084
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Cable, Solenoid/Starter
4011249
|
$32.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Module, PDM, Ranger 500 EFI
4011375
|
$534.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Nut, Hex
3280321
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#30
Washer, Lock
7552615
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
Block, Terminal
4011130
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
Strap, Ground
5248659
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Cable, Ground
4011214
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
