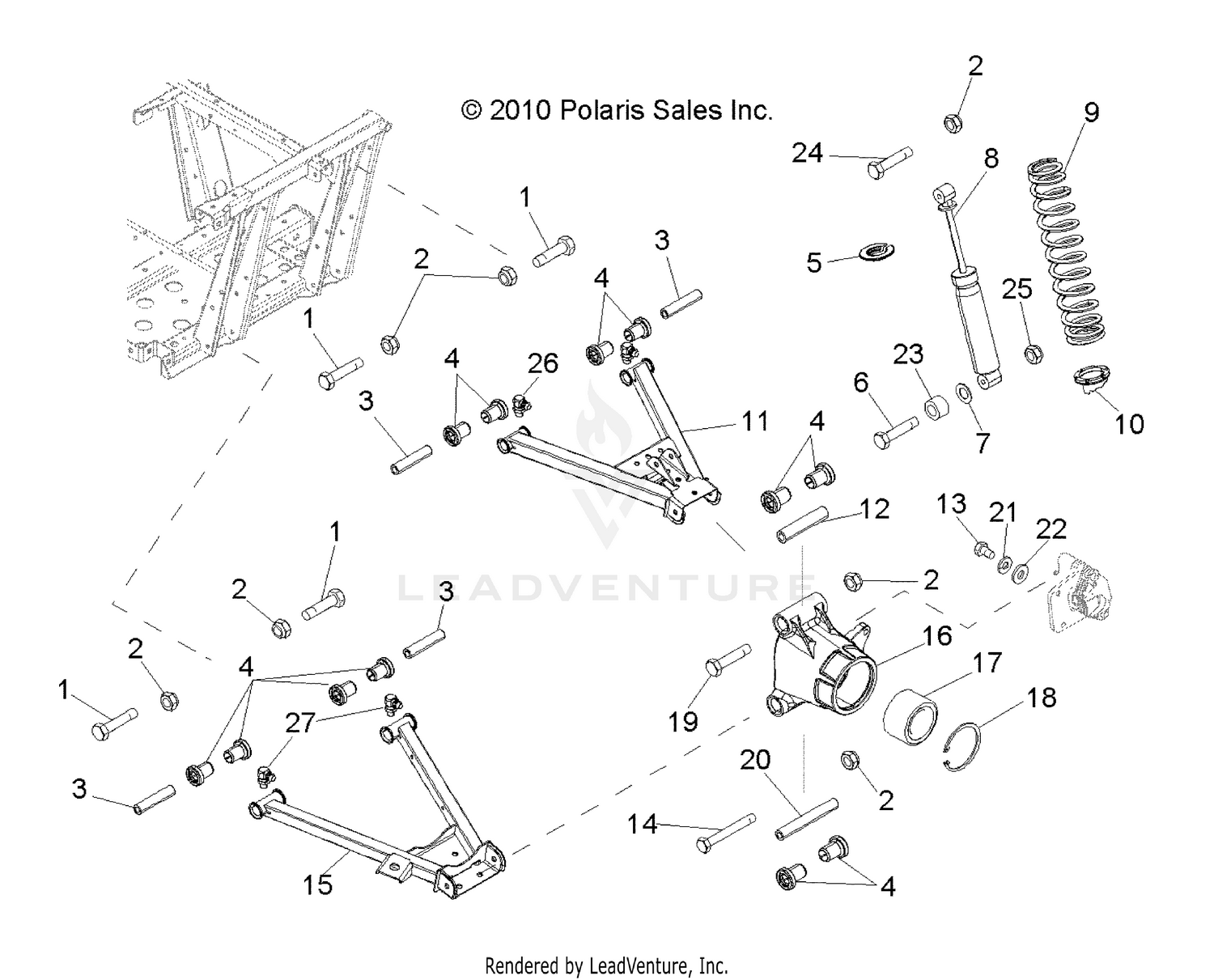

Suspension, Rear - R10rh45ag/ah/ar (49rgrsusprr104004x4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Bolt
7519043
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Shaft, Pivot
5335448
Superseded by 5137591
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSHING, A-ARM., SHORT, BLACK
5434548
Superseded by 5439270
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RETAINER-SPRING,STEEL
5251753
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Bolt, Flange
7518474
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Washer, Flat
7555852
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Shock, Rear
7043548
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Spring, Rear, Matte' Black
7043553-458
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Cam, Adjust, Spring
5630551
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Arm, Control, Upper, Matte' Black
1016578-458
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
ARM, CONTROL, UPPER, MATTE BLACK
1017727-458
Superseded by 1018189-458
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHAFT, PIVOT
5136580
Superseded by 5137592
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Screw
7512365
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Bolt
7518562
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
ARM, CONTROL, LOWER, MATTE BLACK
1016552-458
Superseded by 1018190-458
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
ARM, CONTROL, LOWER, MATTE BLACK
1017728-458
Superseded by 1018190-458
|
$139.99 | ||
|
Unavailable |
|||
|
#16
Carrier, Bearing, Wheel, LH
5134741
|
$134.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Carrier, Bearing, Wheel, RH
5134531
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Bearing, Carrier, Wheel
3514635
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING-WHEEL,HD,40X74X40MM
3515087
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Ring, Retaining
7710440
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCR-HXFL-M10X1.25X115 8.8 ZOD
7518566
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SHAFT, PIVOT, 115.11MM
5136581
Superseded by 5137593
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Washer, Spring Lock
7552901
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
Spacer
5334945
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Bolt
7518610
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Nut
7547313
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Fitting, Zerk
7080510
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Fitting, Lubrication
7080433
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
